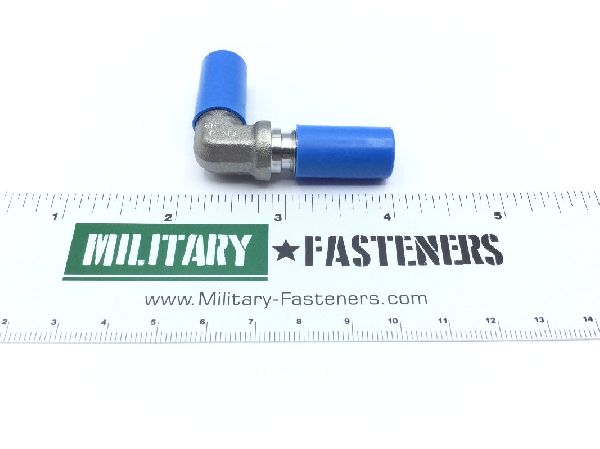

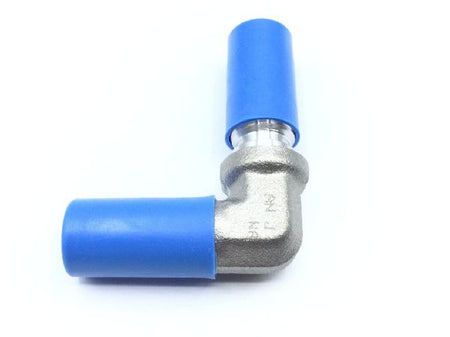

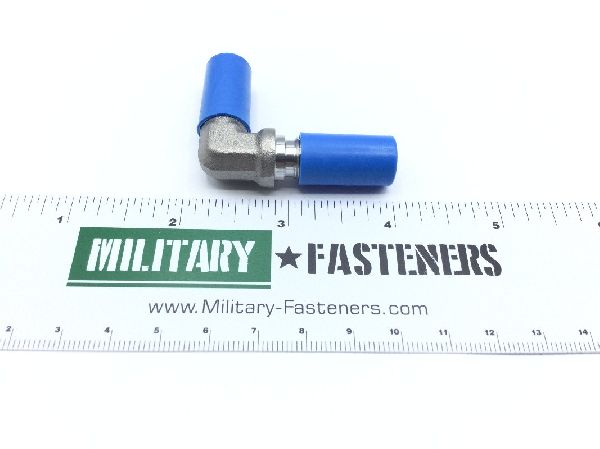

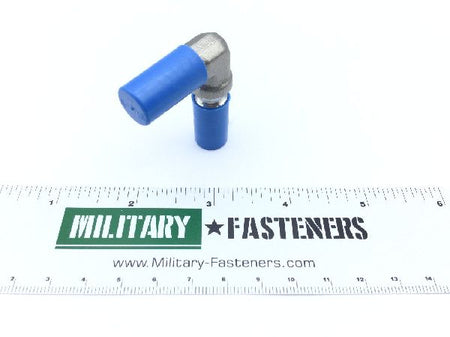

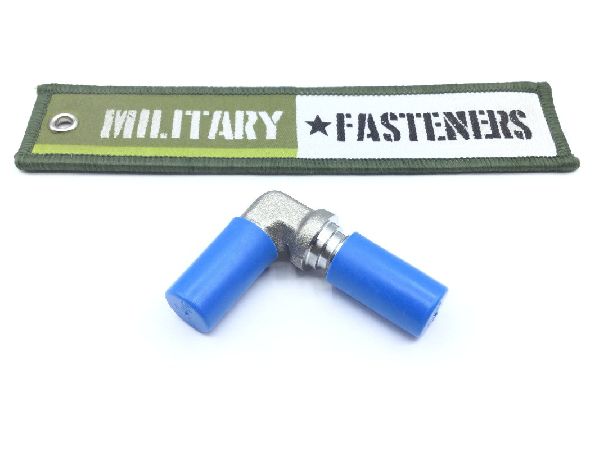

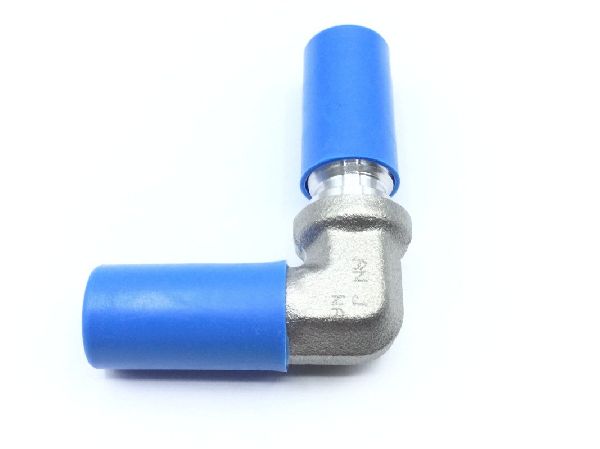

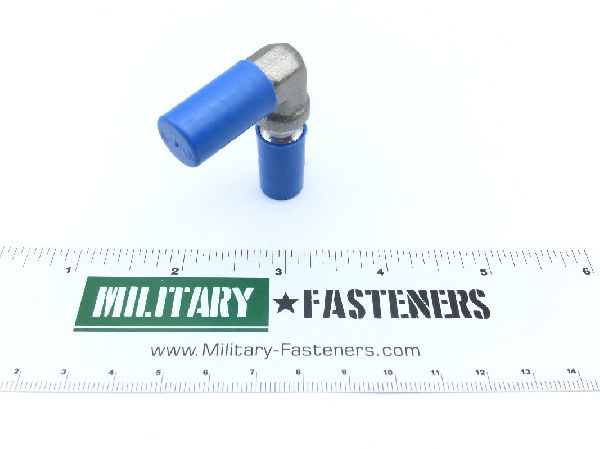

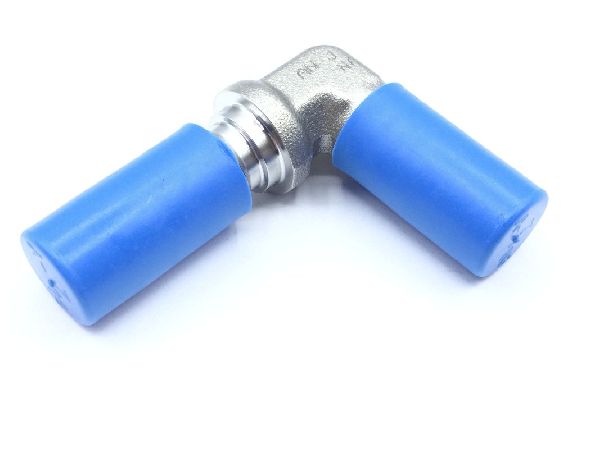

AN833-4J Tube Elbow

Product Series: AN
ECCN: EAR99
Schedule: 7307.22.5000

Price per Unit $65.78

Units per Pack 1

Price per Pack $65.78

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 1

Total Unit Quantity:

Total Packs 1

Total Price $65.78

Add item to quote

Material

Steel

Surface Treatment

type 1 federal specification single treatment response outside qq-p-35

Thread Class

3a 1st end bulkhead

Thread Size

0.438 inches all ends

Connection Style: Flared (tube) all ends
Connection Type: Threaded external tube all ends
End Application: B-1b 56f aircraft
Flow Angle: 90.0 degrees
Leg Length: 0.953 inches 2nd end
Material Specification: 66 federal standard single material response elbow
Media For Which Designed: Fluid single response
Outside Diameter Tube Accommodated: 0.250 inches all ends
Reduced Passage Inside Diameter: 0.250 inches all ends
Seat Angle: 37.0 degrees all ends
Specification Data: 88044-an833 government standard
Thread Series Designator: Unjf (fine thread with external controlled root radius) 1st end bulkhead
