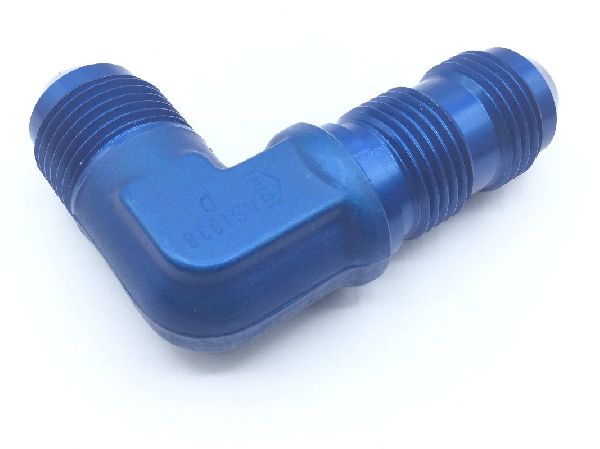

AN833-8D Tube Elbow

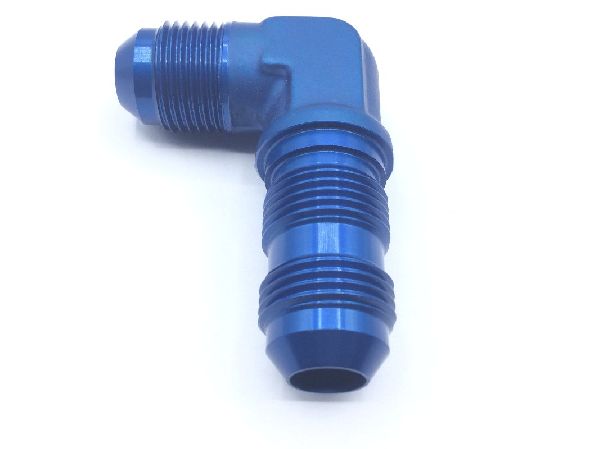

AN833-8D Tube Elbow (2)

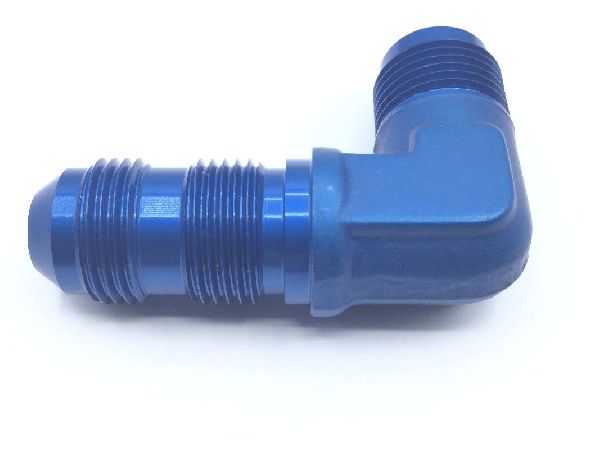

AN833-8D Tube Elbow (3)

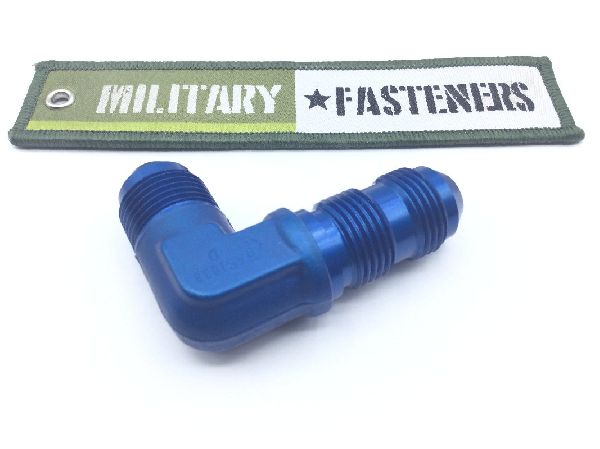

AN833-8D Tube Elbow (4)

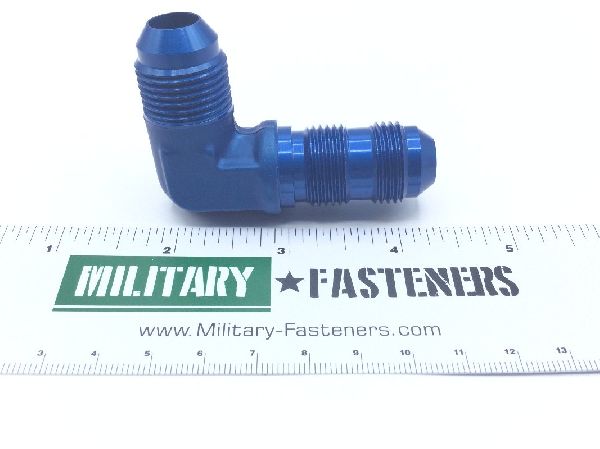

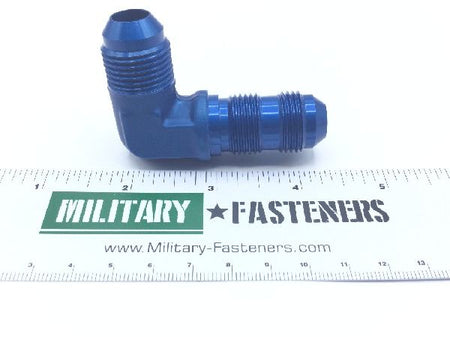

AN833-8D Tube Elbow (5)

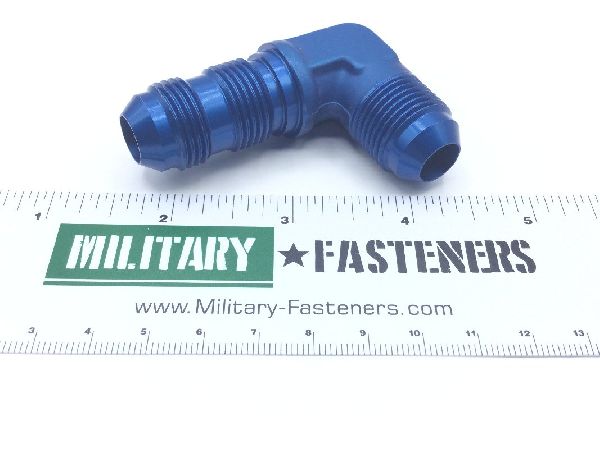

AN833-8D Tube Elbow (6)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

AN833-8D Tube Elbow

Product Series: AN
ECCN: EAR99
Schedule: 7326.90.8695

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Material

Aluminum alloy

Surface Treatment

Type 2 military specification single treatment response mil-a-8625

Thread Class

3a 1st end bulkhead

Thread Size

0.750 inches all ends

Connection Type: Threaded external tube all ends
End Application: Aircraft application
Flow Angle: 90.0 degrees
Leg Length: 1.344 inches 2nd end
Material Specification: T6 federal specification single material response qq-a-367
Outside Diameter Tube Accommodated: 0.500 inches all ends
Special Features: Blue anodized finish
Specification Data: 81343-as1038 professional/industrial association standard
Thread Series Designator: Unjf (fine thread with external controlled root radius) all ends
