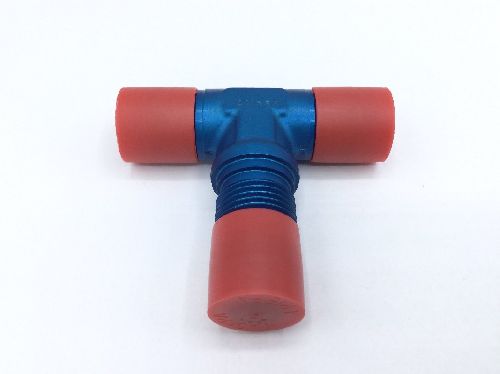

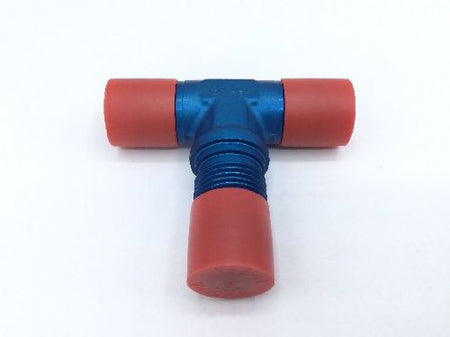

AN834-10D Tube Tee

Product Series: AN
ECCN: EAR99
Schedule: 7307.22.5000

Price per Unit $69.23

Units per Pack 1

Price per Pack $69.23

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 1

Total Unit Quantity:

Total Packs 1

Total Price $69.23

Add item to quote

Material

Aluminum alloy

Thread Class

3a 3rd end bulkhead

Thread Size

0.875 inches 3rd end bulkhead

Connection Style: Flared (tube) all ends
Connection Type: Threaded external tube all ends
End Application: F-111 aircraft
Leg Length: 1.547 inches 1st end
Outside Diameter Tube Accommodated: 0.625 inches all ends
Seat Angle: 37.0 degrees all ends
Specification Data: 88044-an834 government standard
Thread Series Designator: Unjf (fine thread with external controlled root radius) all ends
