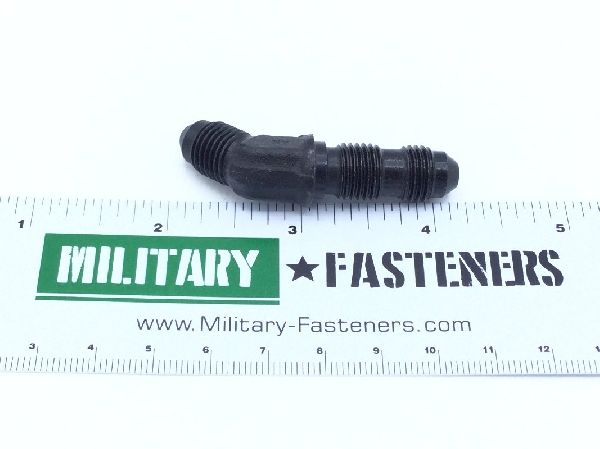

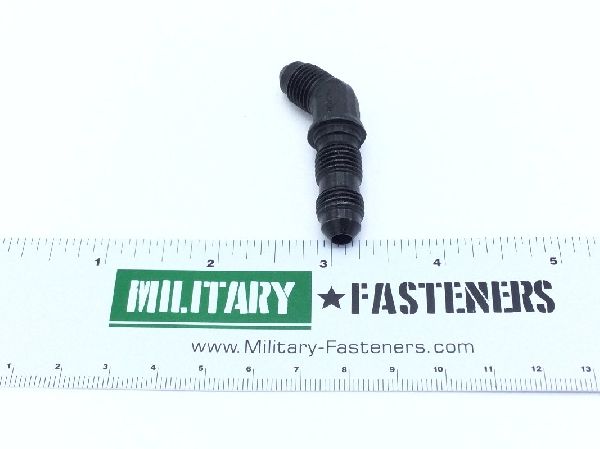

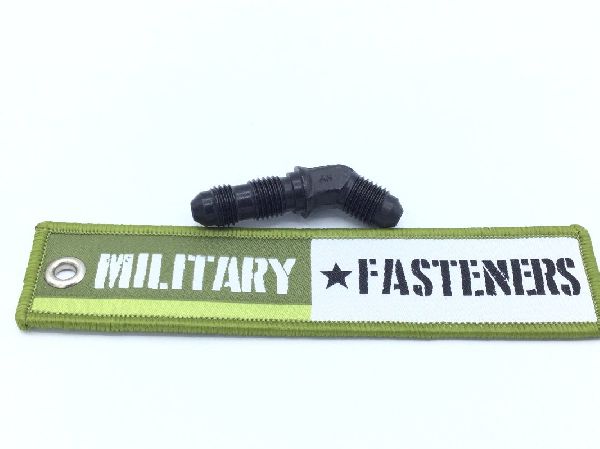

AN837-4 Tube Elbow

Product Series: AN
ECCN: EAR99
Schedule: 7307.22.5000

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Material

Steel

Thread Class

3a all ends

Thread Size

0.438 inches all ends

Connection Style: Flared (tube) all ends
Connection Type: Threaded external tube 1st end bulkhead
Flow Angle: 45.0 degrees
Leg Length: 1.531 inches 1st end
Nondefinitive Specification/std Data: 4 size
Outside Diameter Tube Accommodated: 0.250 inches 1st end
Seat Angle: 37.0 degrees all ends
Special Features: Supports grumman a10a aircraft
Specification Data: 96906-ms24396 government standard and 81349-mil-f-5509 government specification
Thread Series Designator: Unjf (fine thread with external controlled root radius) all ends
