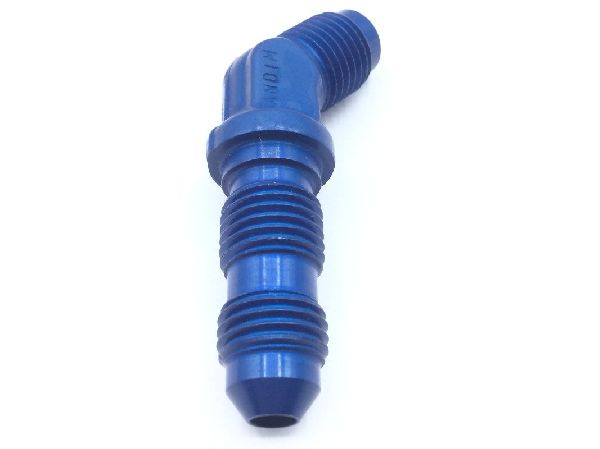

AN837-4D Tube Elbow

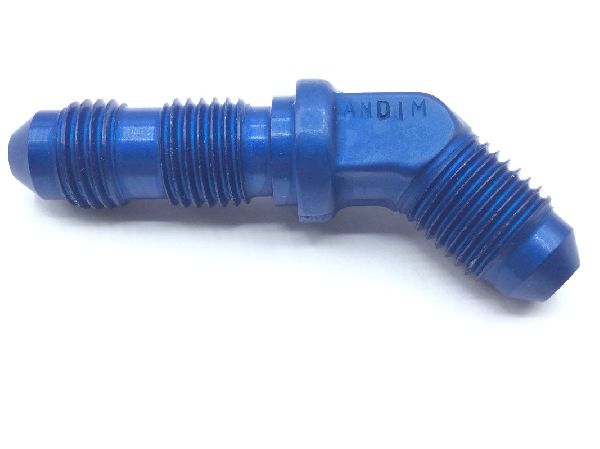

AN837-4D Tube Elbow (2)

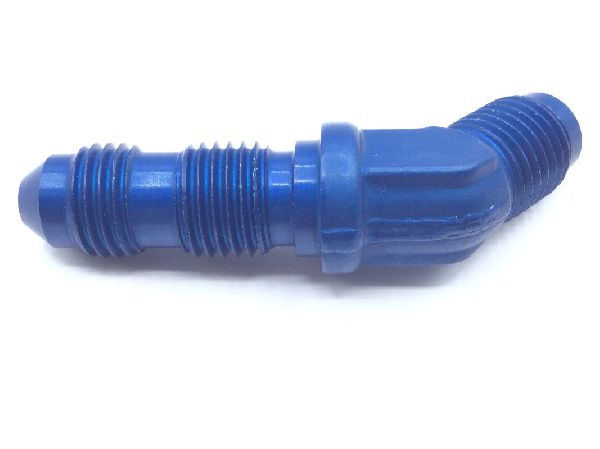

AN837-4D Tube Elbow (3)

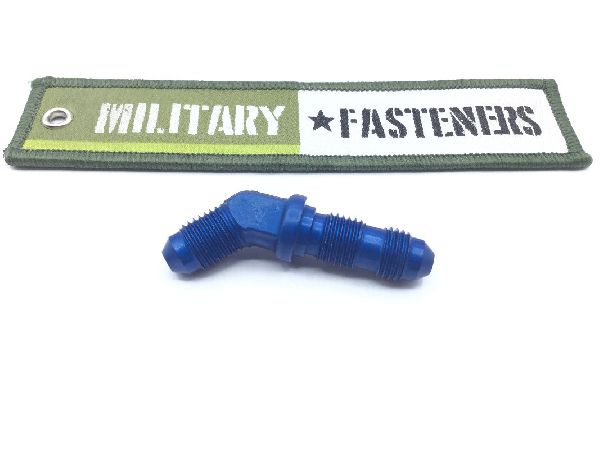

AN837-4D Tube Elbow (4)

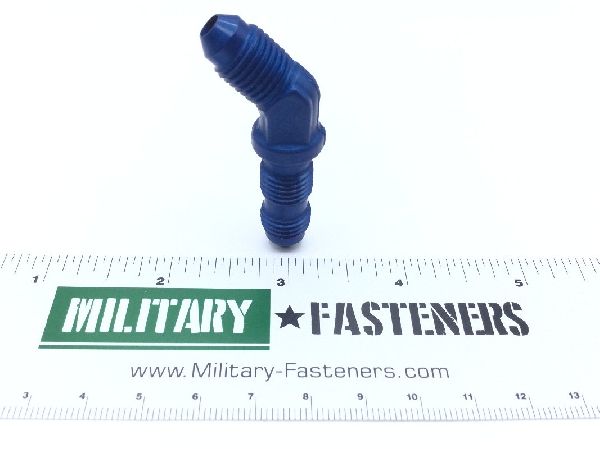

AN837-4D Tube Elbow (5)

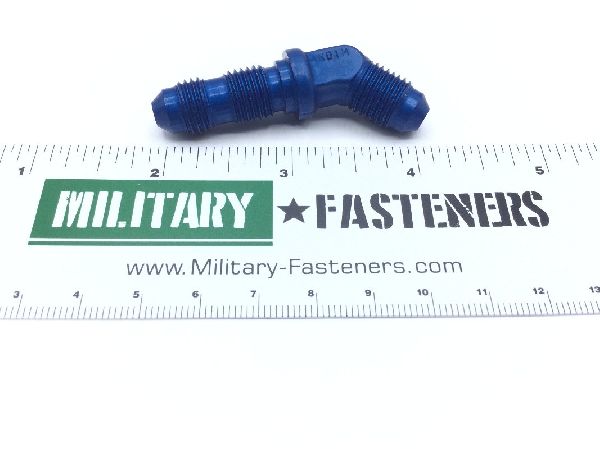

AN837-4D Tube Elbow (6)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

AN837-4D Tube Elbow

Product Series: AN
ECCN: EAR99
Schedule: 7326.90.8695

Price per Unit $38.80

Units per Pack 1

Price per Pack $38.80

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 1

Total Unit Quantity:

Total Packs 1

Total Price $38.80

Add item to quote

Material

Aluminum alloy

Surface Treatment

Type 2 military specification single treatment response outside mil-a-8625

Thread Class

3a all ends

Thread Size

0.438 inches all ends

Connection Style: Flared (tube) all ends
Connection Type: Threaded external tube all ends
End Application: Aircraft application
Flow Angle: 45 degrees
Leg Length: 0.703 inches 2nd end
Outside Diameter Tube Accommodated: 0.250 inches all ends
Seat Angle: 37 degrees all ends
Specification Data: 81343-as1040d0404 professional/industrial association standard
Thread Series Designator: Unjf (fine thread with external controlled root radius) all ends
