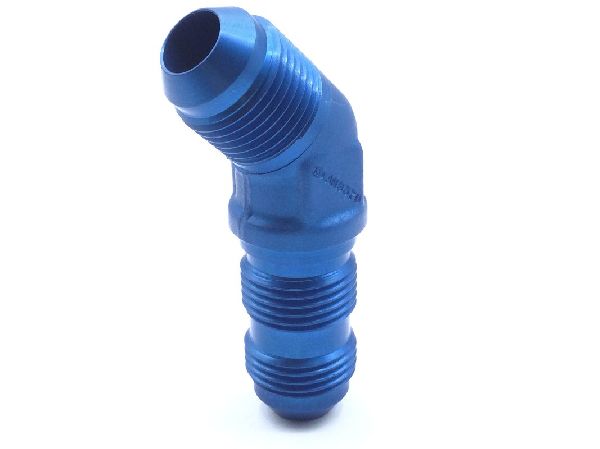

AN837-8D Tube Elbow

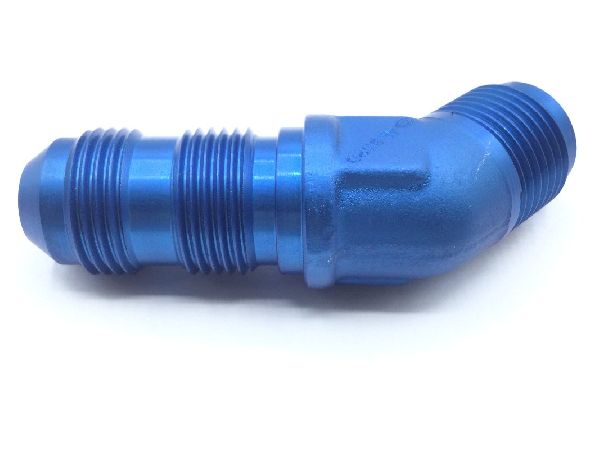

AN837-8D Tube Elbow (2)

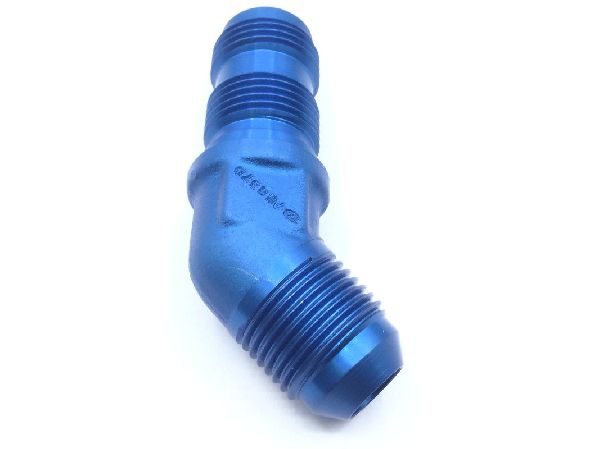

AN837-8D Tube Elbow (3)

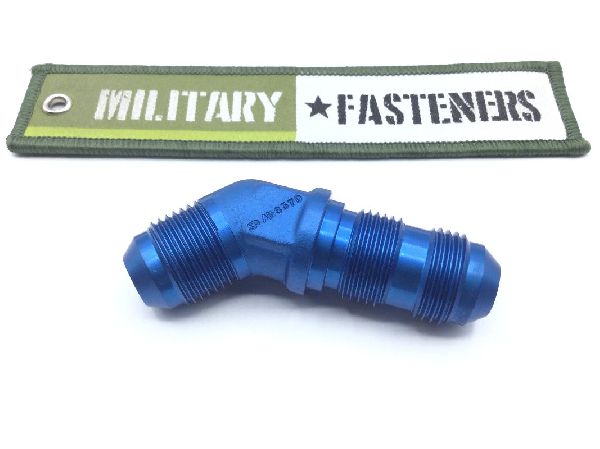

AN837-8D Tube Elbow (4)

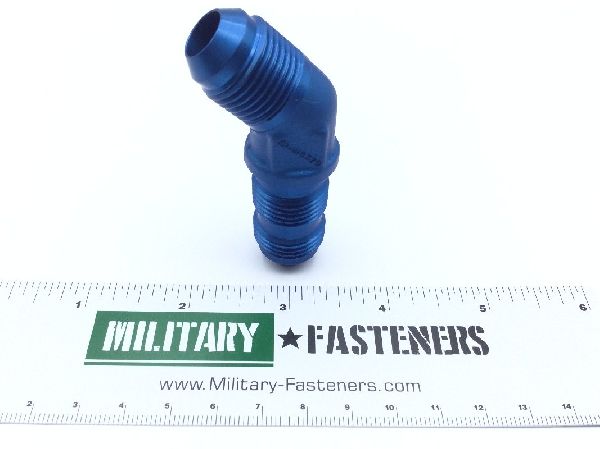

AN837-8D Tube Elbow (5)

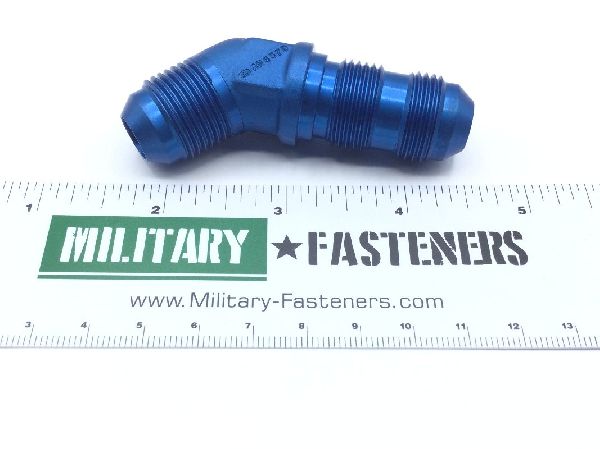

AN837-8D Tube Elbow (6)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

AN837-8D Tube Elbow

Product Series: AN
ECCN: EAR99
Schedule: 7307.22.5000

Price per Unit $141.78

Units per Pack 1

Price per Pack $141.78

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 1

Total Unit Quantity:

Total Packs 1

Total Price $141.78

Add item to quote

Material

Aluminum alloy

Thread Class

3a 1st end bulkhead

Thread Size

0.750 inches all ends

Connection Style: Flared (tube) all ends
Connection Type: Threaded external tube all ends
End Application: Ugm-13 poseidon submarine
Flow Angle: 45.0 degrees
Leg Length: 0.969 inches 2nd end
Outside Diameter Tube Accommodated: 0.500 inches all ends
Seat Angle: 37.0 degrees all ends
Special Features: Grumman aerospace a-10 aircraft
Specification Data: 88044-an837 government standard
Thread Series Designator: Unjf (fine thread with external controlled root radius) 1st end bulkhead
