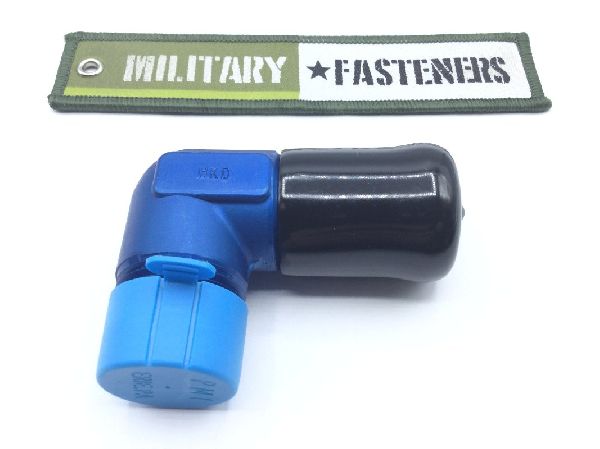

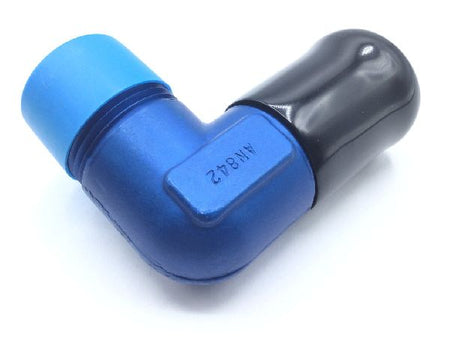

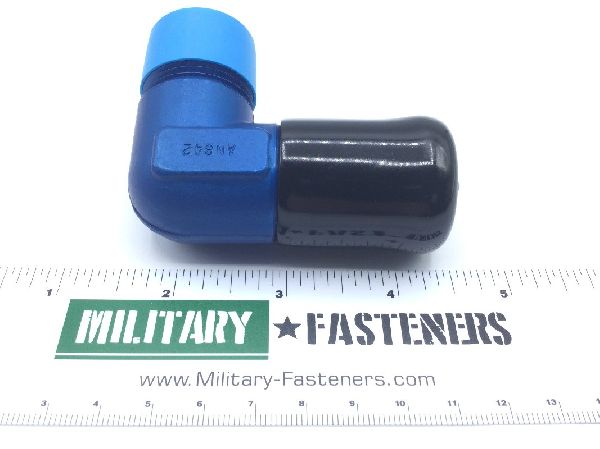

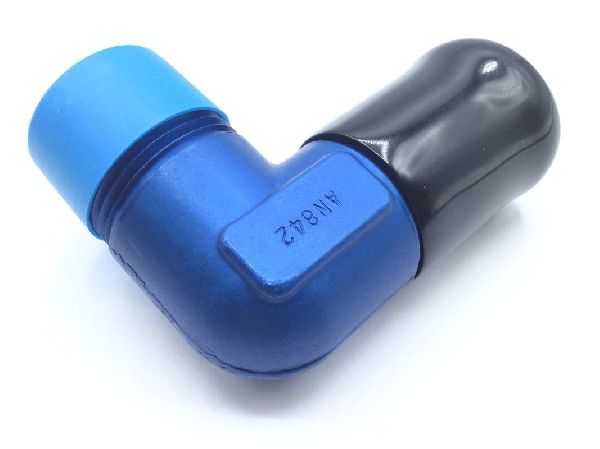

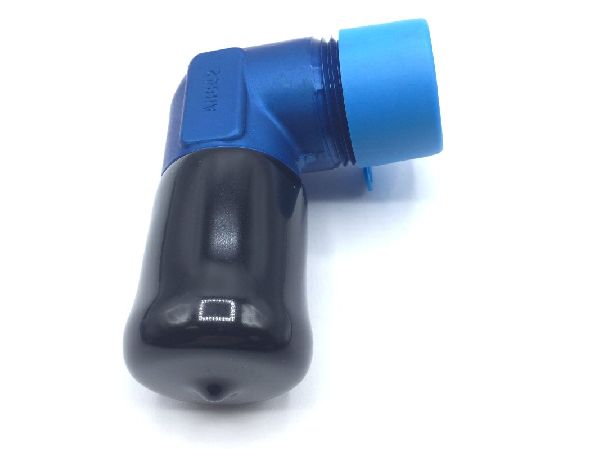

AN842-16D Pipe To Hose Elbow

Product Series: AN
ECCN: EAR99
Schedule: 8307.10.6000

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Material

Aluminum alloy

Thread Size

0.75 inches 1st end

Connection Style: Plain (pipe) 1st end
Connection Type: Unthreaded external hose 2nd end
Flow Angle: 90 degrees
Inside Diameter Hose Accommodated: 1 inch 2nd end
Leg Length: 2.203 inches 2nd end
Material Specification: Alloy 2014 temper t6 federal specification single material response temper t6 or t851 federal specification single material response or qq-a-367 temper t6 federal specification single material response or qq-a-225/6 qq-a-225/4
Pipe Size Accommodated: 0.75 inches 1st end
Thread Series Designator: Anpt 1st end
