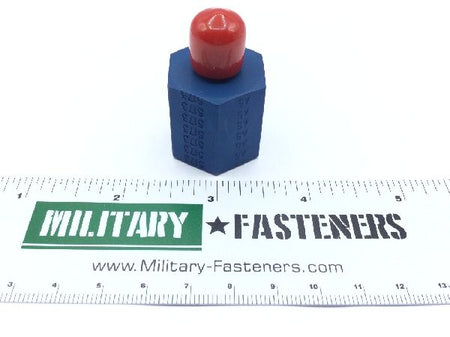

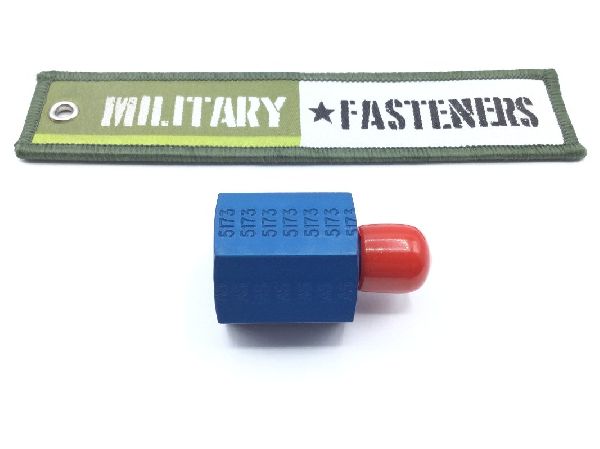

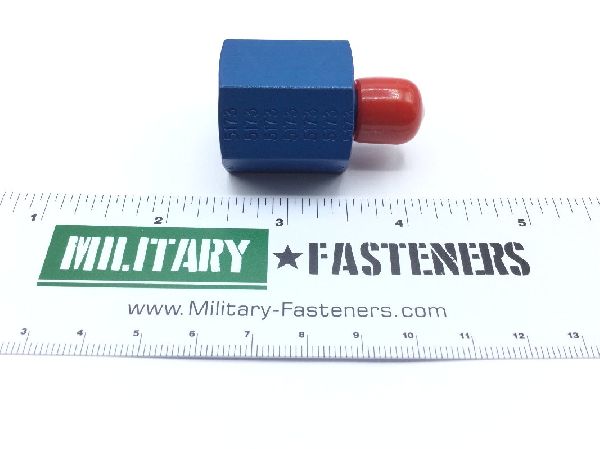

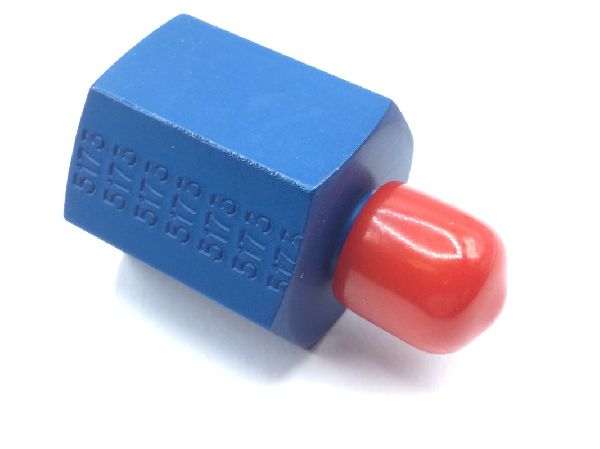

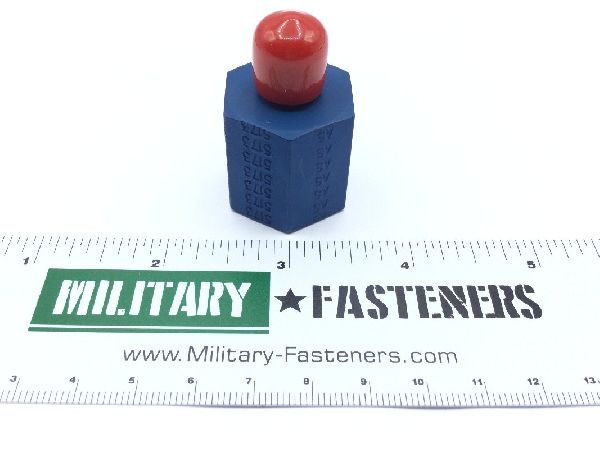

AN894D8-4 Straight Tube to Boss Adapter
- Product Series
- AN
- ECCN
- EAR99
- Schedule
- 7326.90.8695
Unit of Measure:
EA
Add to Quote
We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.
Add to QuoteCouldn't load pickup availability
- Connection Style
- Gasket seal (boss) 2nd end
- Connection Type
- Threaded internal boss 2nd end
- Material Specification
- T6 or t851 federal specification single material response t6 federal specification single material response or qq-a-225/6 qq-a-225/4
- Maximum Operating Pressure
- 3000.0 pounds per square inch single response
- Maximum Operating Temp
- 250.0 degrees fahrenheit single response
- Media For Which Designed
- gaseous 2nd response oxygen
- Nominallength
- 1.609 inches
- Outside Diameter Tube Accommodated
- 0.250 inches 1st end
- Seat Angle
- 37.0 degrees 1st end
- Specification Data
- 81343-as4875/1 professional/industrial association standard
- Thread Series Designator
- Unjf (fine thread with external controlled root radius) 2nd end
