Home » AN919-10J Tube Reducer

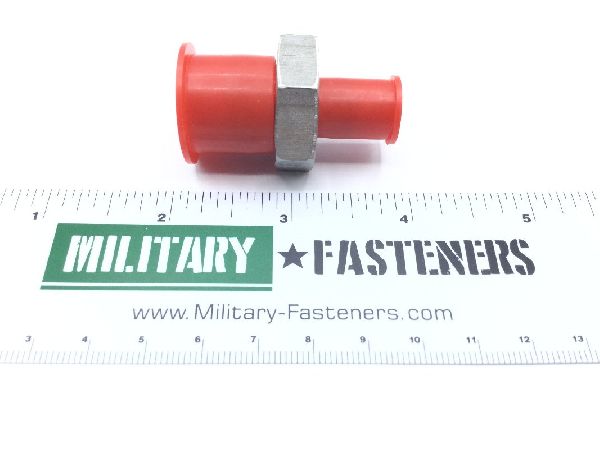

AN919-10J Tube Reducer

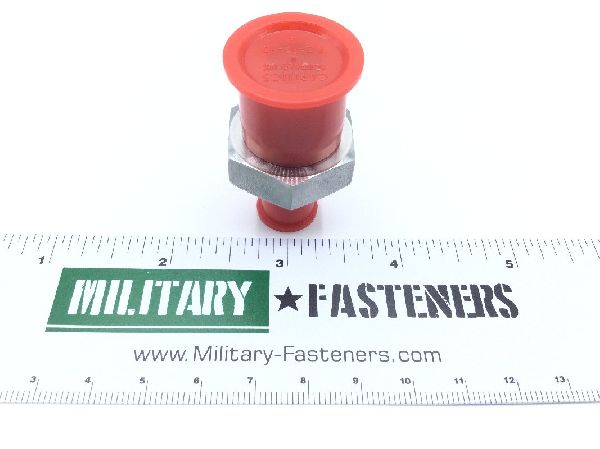

AN919-10J Tube Reducer (2)

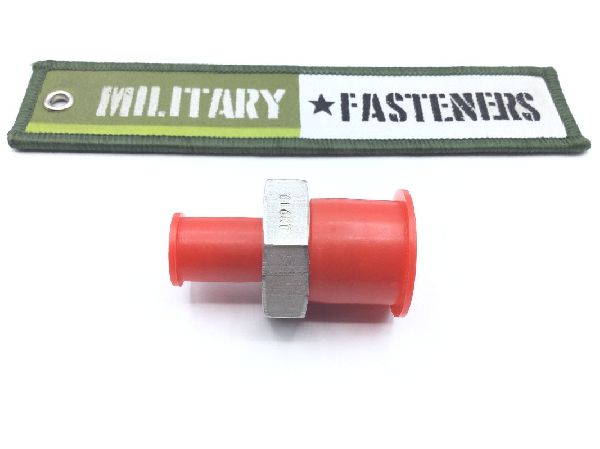

AN919-10J Tube Reducer (3)

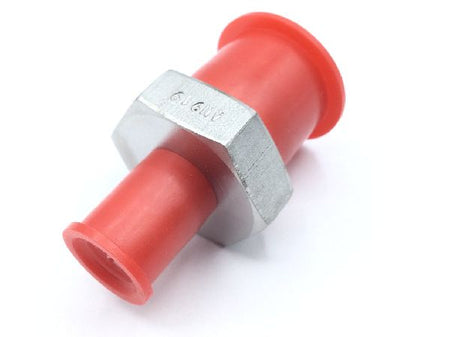

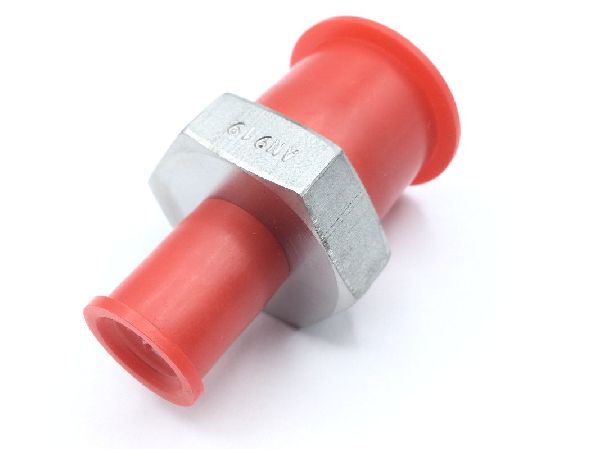

AN919-10J Tube Reducer (4)

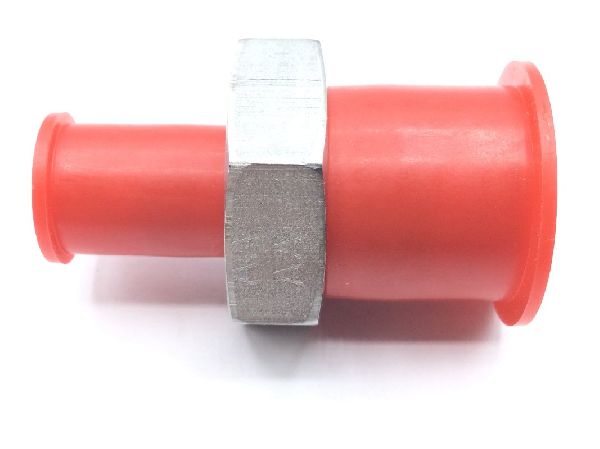

AN919-10J Tube Reducer (5)

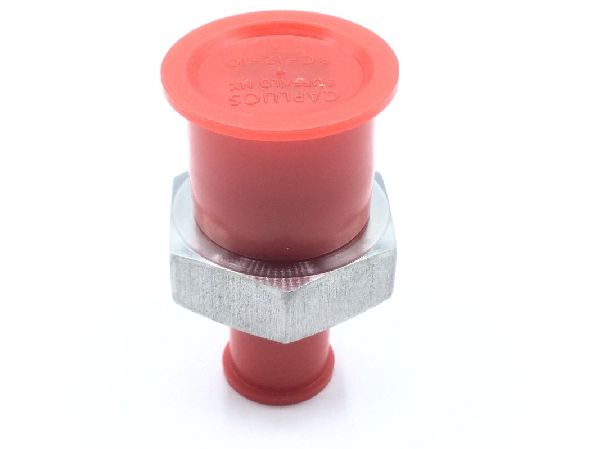

AN919-10J Tube Reducer (6)
AN919-10J Tube Reducer
AN919-10J Tube Reducer (2)
AN919-10J Tube Reducer (3)
AN919-10J Tube Reducer (4)
AN919-10J Tube Reducer (5)
AN919-10J Tube Reducer (6)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

AN919-10J Tube Reducer

Product Series
AN
ECCN
EAR99
Schedule
7326.90.8695
Price per Unit $59.52
Units per Pack 1
Price per Pack $59.52
Manufacturer certifications are shipped with your order FREE of charge
Unit of Measure: EA

Quantity will be increased in increments of 1

Total Unit Quantity:
Total Packs 1
Total Price $59.52
Add item to quote
Material
Steel comp 304
Thread Class
3a all ends
Thread Size
0.750 inches 1st end
Connection Style
Flared (tube) all ends
Connection Type
Threaded external tube all ends
Material Specification
66 federal standard single material response
Nominallength
1.531 inches
Outside Diameter Tube Accommodated
0.250 inches 2nd end
Reducer Type
Concentric
Seat Angle
37.0 degrees all ends
Special Features
Supports grumman a10 aircraft
Specification Data
96906-ms24399 government standard
Thread Series Designator
Unjf (fine thread with external controlled root radius) all ends
