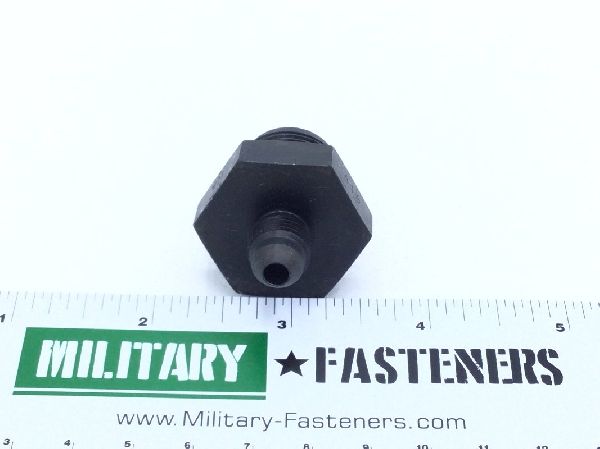

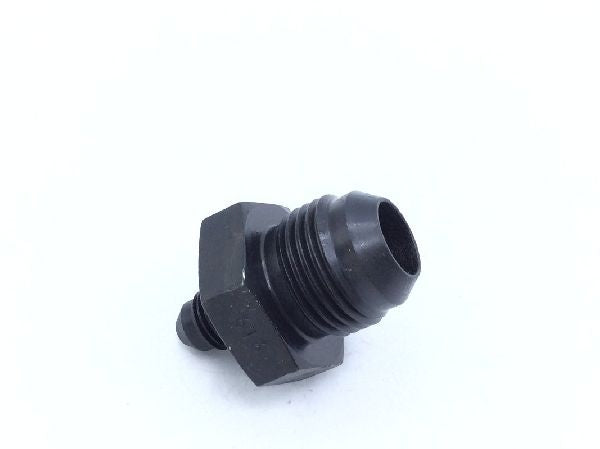

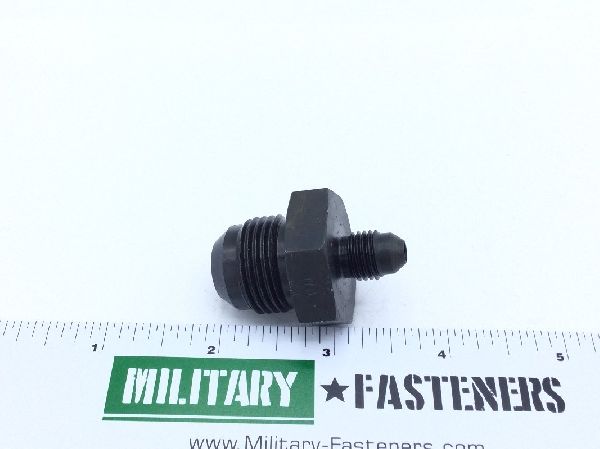

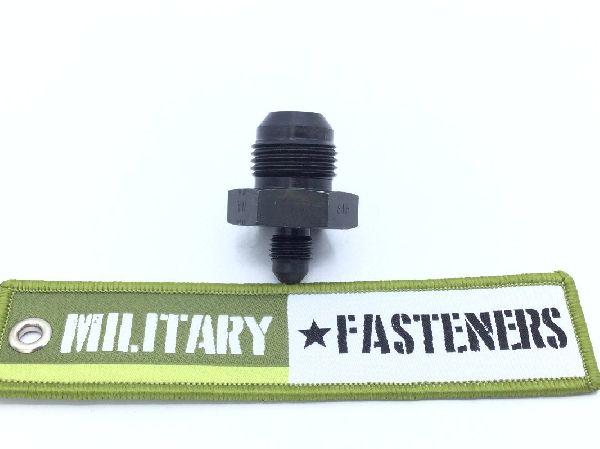

AN919-13 Boss Reducer

Product Series: AN
ECCN: EAR99
Schedule: 7326.90.8695

Price per Unit $106.65

Units per Pack 1

Price per Pack $106.65

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 1

Total Unit Quantity:

Total Packs 1

Total Price $106.65

Add item to quote

Material

Steel comp 1141

Thread Class

3a all ends

Thread Size

0.875 inches 1st end

Connection Style: Flared w/ gasket seal (boss) all ends
Connection Type: Threaded external boss all ends
Material Specification: A66 federal standard single material response
Maximum Operating Pressure: 3000.0 pounds per square inch single response
Maximum Operating Temp: 275.0 degrees fahrenheit single response
Nominallength: 1.656 inches
Reducer Type: Concentric
Specification Data: 88044-an917 government standard
Thread Series Designator: Unjf (fine thread with external controlled root radius) 1st end
