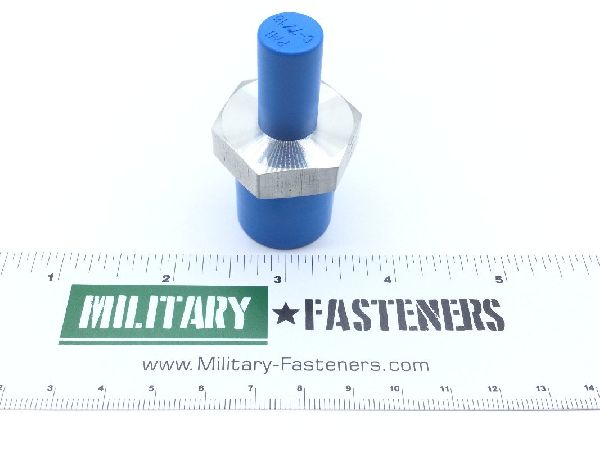

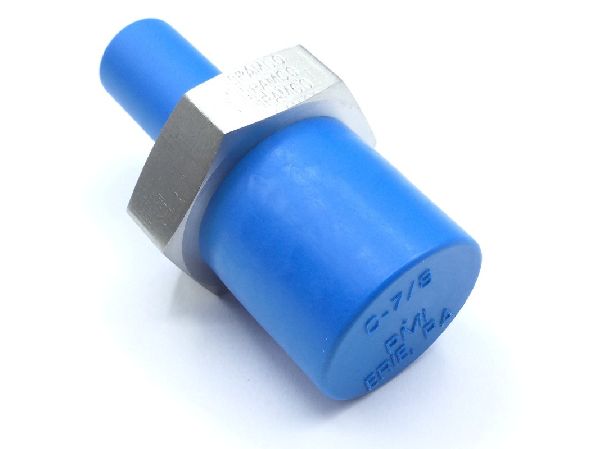

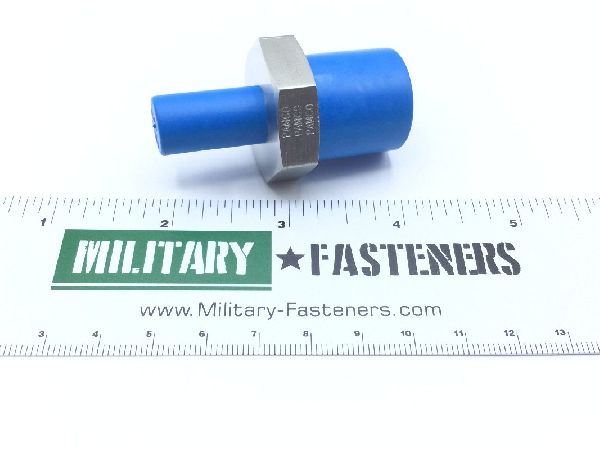

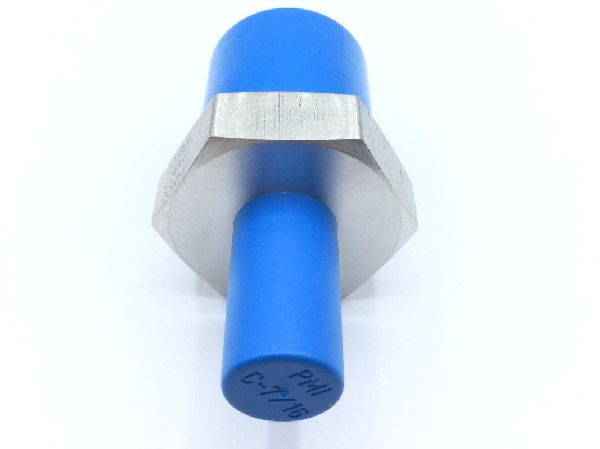

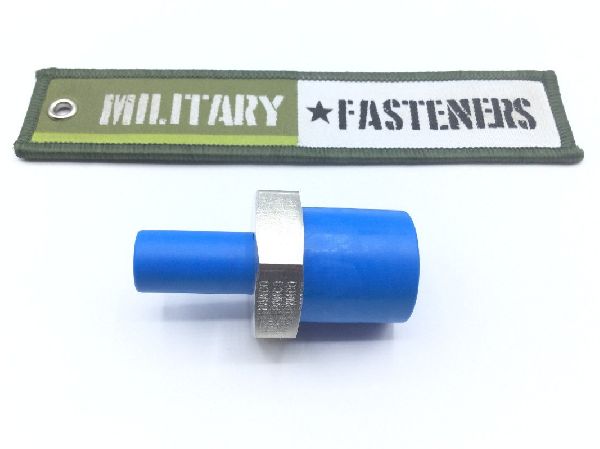

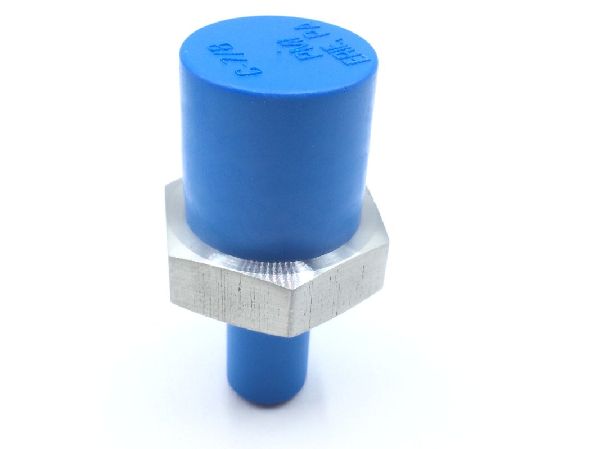

AN919-13J Boss Reducer

Product Series: AN
ECCN: EAR99
Schedule: 7326.90.8695

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Material

Steel comp 304

Surface Treatment

Mil-s-5002 military specification single treatment response inside

Thread Class

3a all ends

Thread Size

0.875 inches 1st end

Connection Style: Flared w/ gasket seal (boss) all ends
Connection Type: Threaded external boss all ends
End Application: Jwn newport class lst
Material Specification: 66 federal standard single material response
Maximum Operating Pressure: 3000.0 pounds per square inch single response
Maximum Operating Temp: 275.0 degrees fahrenheit single response
Nominallength: 1.656 inches
Reducer Type: Concentric
Specification Data: 88044-an919 government standard and 96906-ms24399 government standard
Thread Series Designator: Unf (fine thread) 2nd end
