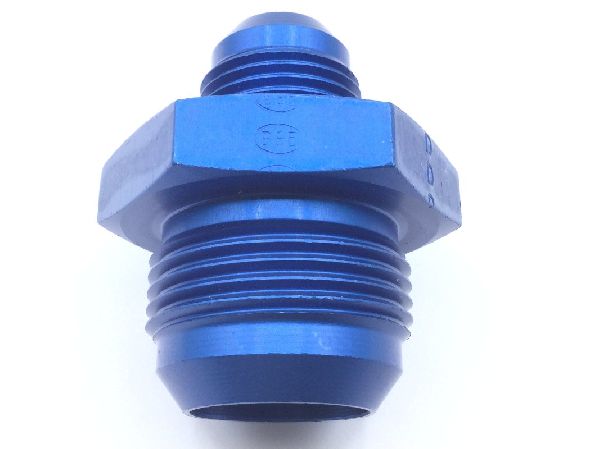

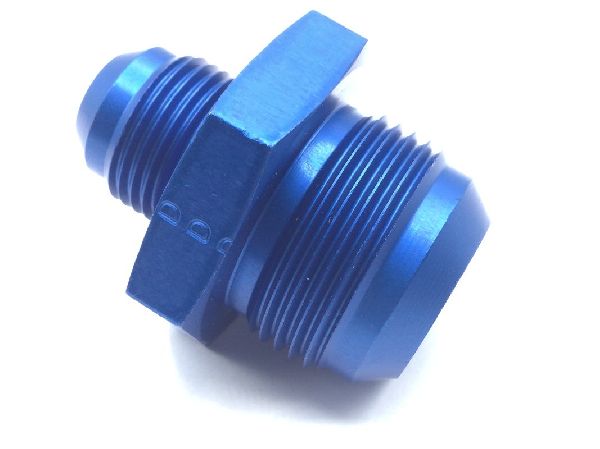

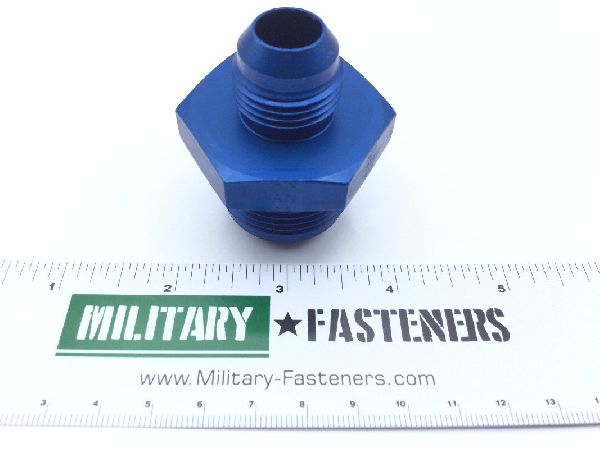

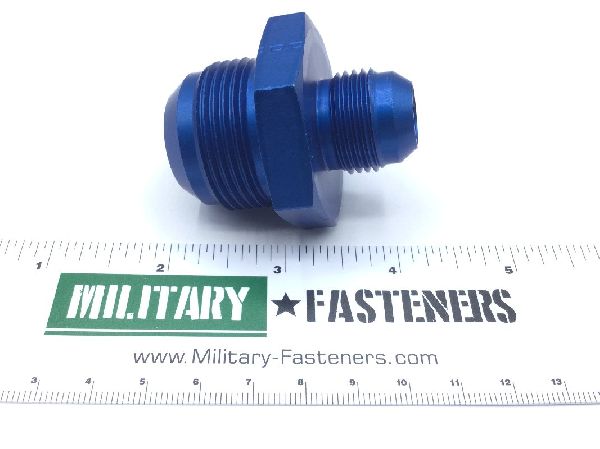

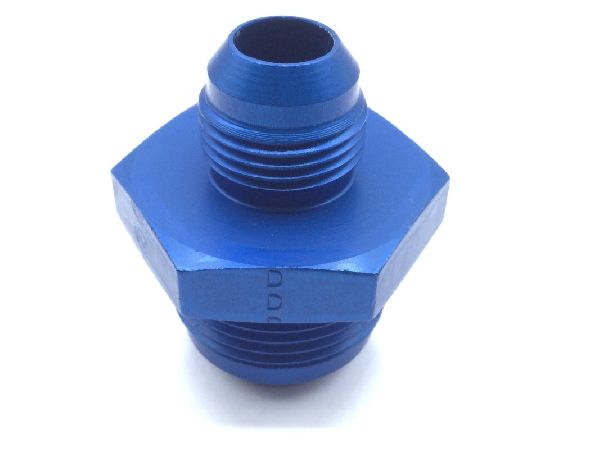

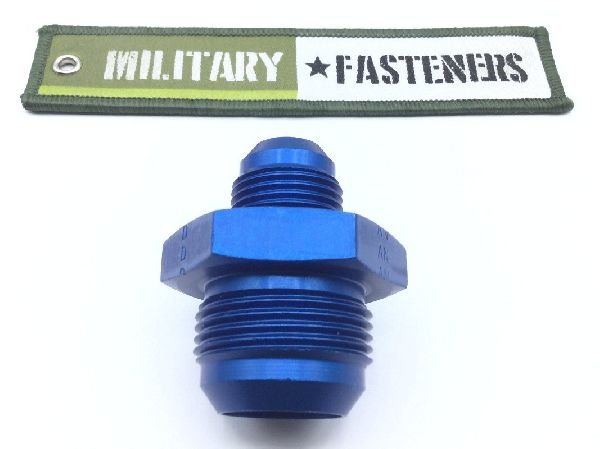

AN919-22D Boss Reducer

Product Series: AN
ECCN: EAR99
Schedule: 7326.90.8695

Price per Unit $72.00

Units per Pack 1

Price per Pack $72.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 1

Total Unit Quantity:

Total Packs 1

Total Price $72.00

Add item to quote

Material

Aluminum alloy 2014 or aluminum alloy 2024

Surface Treatment

Class 2 military specification single treatment response type 2 mil-a-8625

Thread Class

3a all ends

Thread Size

1.312 inches 1st end

Connection Style: Flared w/ gasket seal (boss) all ends
Connection Type: Threaded external boss all ends
Criticality Code Justification: Feat
End Application: Hercules c-130 aircraft application;aircraft
Material Specification: T6 federal specification single material response t6 federal specification single material response or qq-a-225/6 qq-a-225/4
Media For Which Designed: Fluid single response
Nominallength: 2.047 inches
Reducer Type: Concentric
Special Features: Weapon system essential
Thread Qty Per Inch (tpi): 12 1st end
Thread Series Designator: Unf (fine thread) 2nd end
