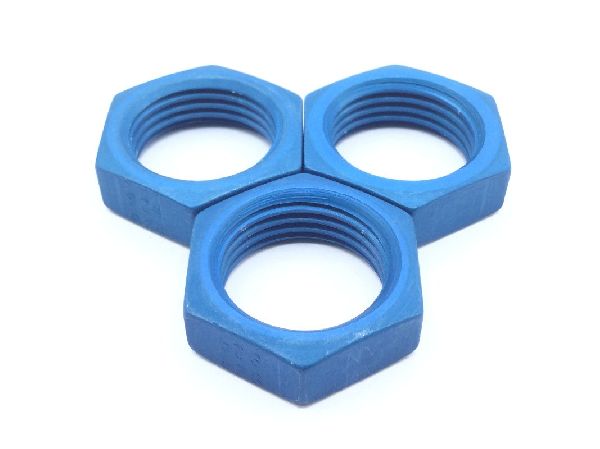

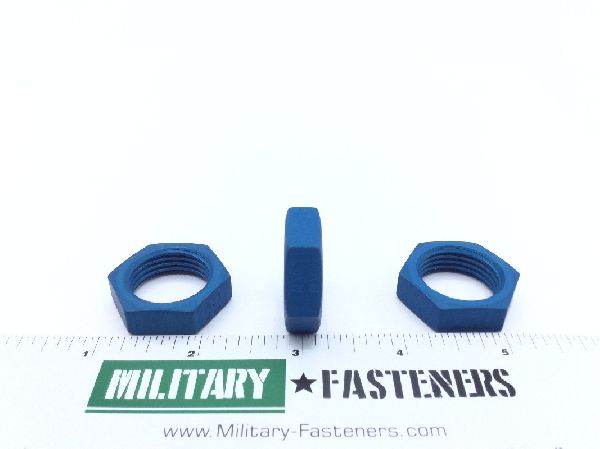

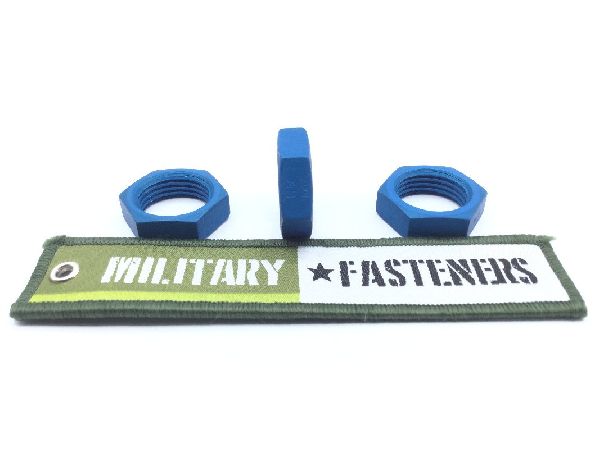

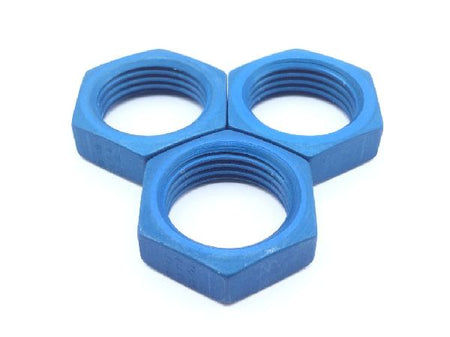

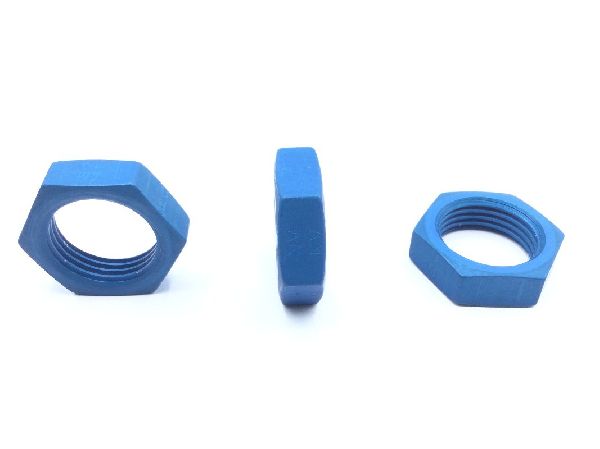

AN924-10D Plain Hexagon Nut

Product Series: AN
ECCN: EAR99
Schedule: 7318.16.0000

Price per Unit $13.00

Units per Pack 5

Price per Pack $65.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 5

Total Unit Quantity:

Total Packs 1

Total Price $65.00

Add item to quote

Material

Aluminum alloy 2014

Surface Treatment

Qq-a-696 federal specification single treatment response

Thread Class

3b

Thread Series

Unf (fine thread)

Thread Size

0.875 inches

Bearing Surface Type: Chamfered or washer faced
Countersink Angle: 89.5 degrees nut and 90.5 degrees nut
Material Specification: Qq-a-266 federal specification single material response
Nut Height: Between 0.344 inches and 0.375 inches
Nut Style: Hexagon
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 14
Width Across Flats: Between 1.121 inches and 1.128 inches
