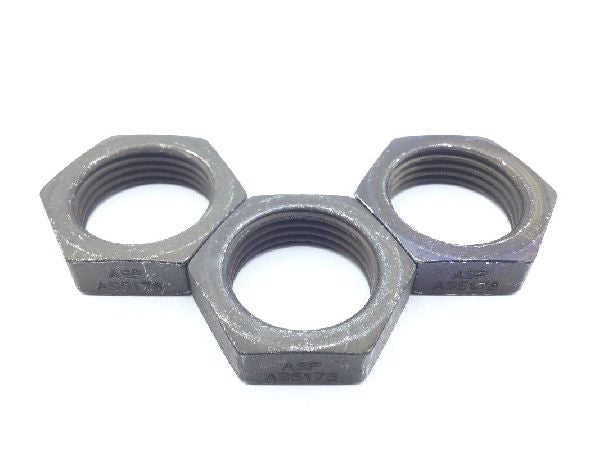

AN924-12 Plain Hexagon Nut

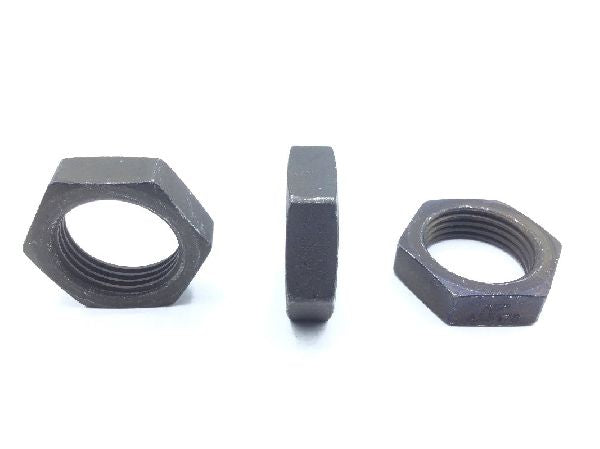

AN924-12 Plain Hexagon Nut (2)

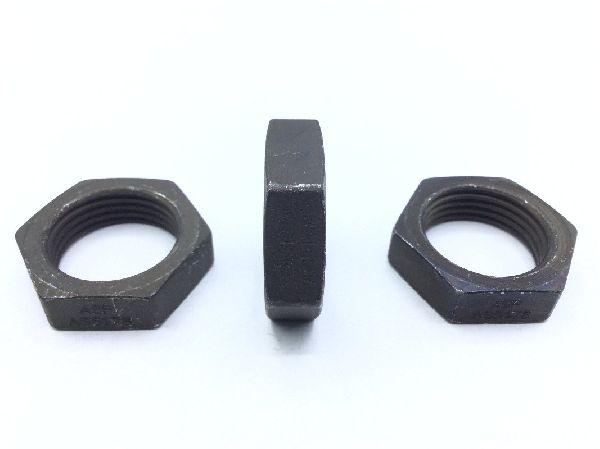

AN924-12 Plain Hexagon Nut (3)

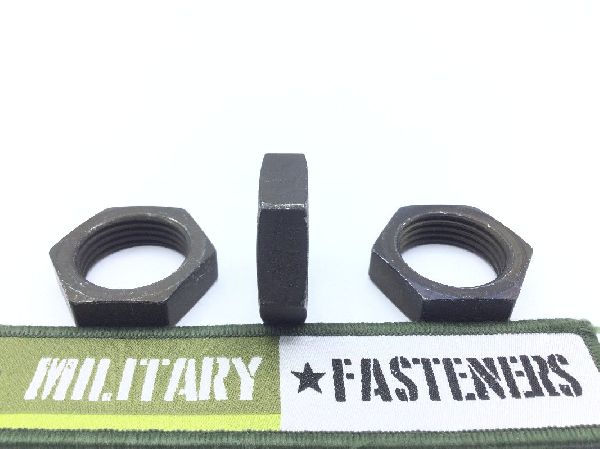

AN924-12 Plain Hexagon Nut (4)

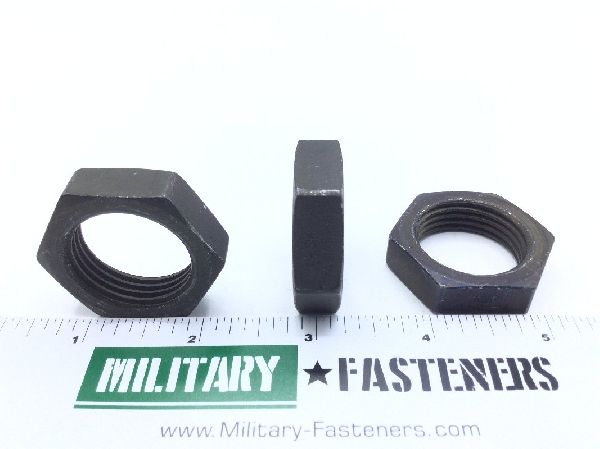

AN924-12 Plain Hexagon Nut (5)

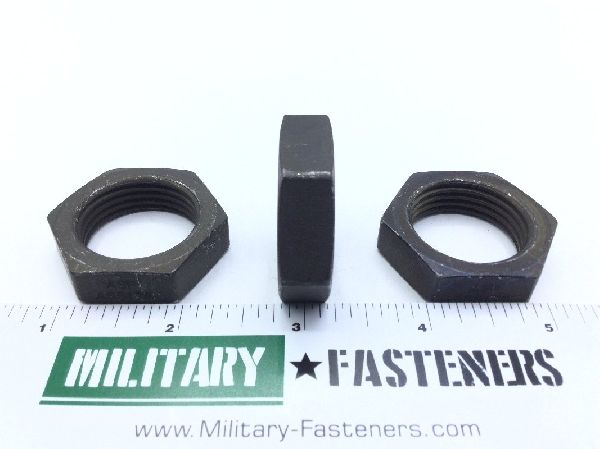

AN924-12 Plain Hexagon Nut (6)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

AN924-12 Plain Hexagon Nut

Product Series: AN
ECCN: EAR99
Schedule: 7318.16.0085

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Material

Steel

Surface Treatment

Cl 3 federal specification single treatment response type 2 qq-p-416

Thread Class

3b

Thread Series

Un

Thread Size

1.062 inches

Bearing Surface Type: Chamfered
Material Specification: Qq-s-637 federal specification single material response
Nut Height: 0.406 inches
Nut Style: Hexagon
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 12
Width Across Flats: Between 1.377 inches and 1.379 inches
