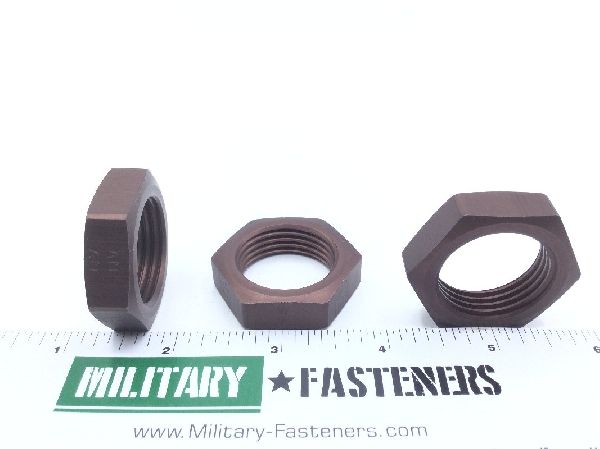

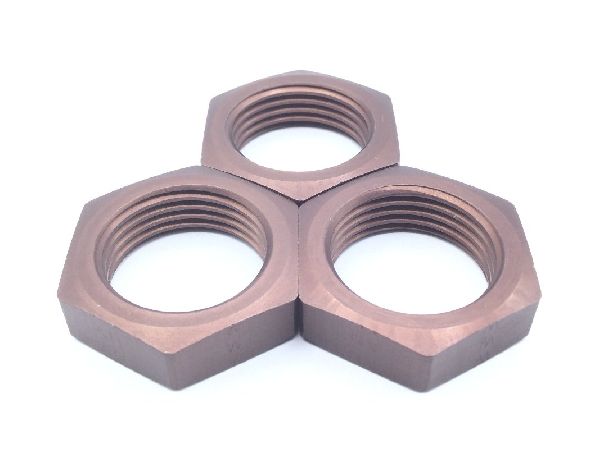

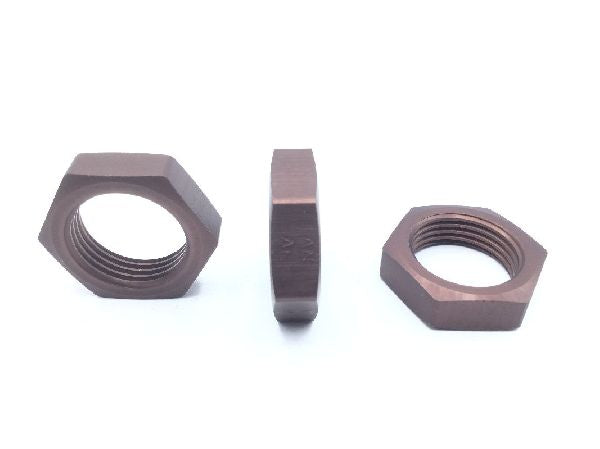

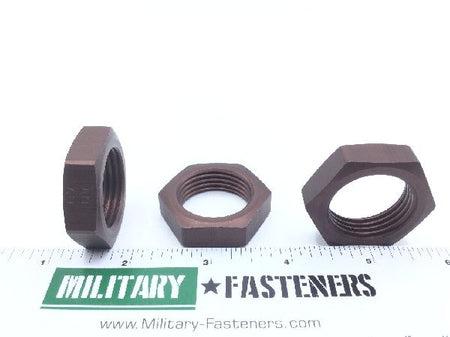

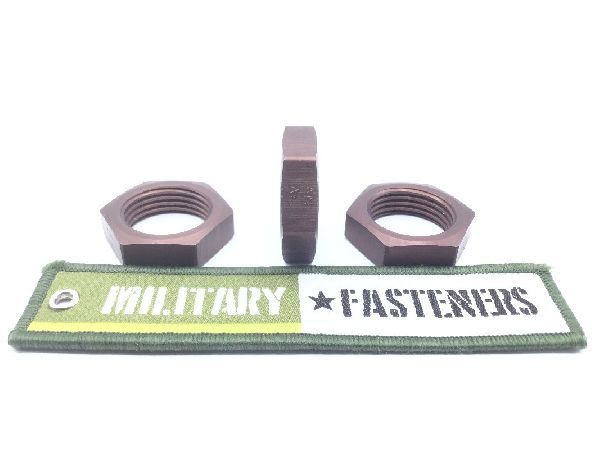

AN924-12W Plain Hexagon Nut

Product Series: AN
ECCN: EAR99
Schedule: 7318.16.0085

Price per Unit $10.03

Units per Pack 5

Price per Pack $50.15

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 5

Total Unit Quantity:

Total Packs 1

Total Price $50.15

Add item to quote

Material

Aluminum alloy 7075

Surface Treatment

Mil-a-8625 type 2 cl 2 military specification single treatment response

Thread Class

3b

Thread Series

Unj

Thread Size

1.062 inches

Bearing Surface Type: Chamfered
Countersink Angle: 90.0 degrees both ends
Material Specification: Qq-a-367 temper t73 federal specification single material response
Nut Height: Between 0.39 inches and 0.422 inches
Nut Style: Hexagon
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 12
Width Across Flats: Between 1.371 inches and 1.378 inches
