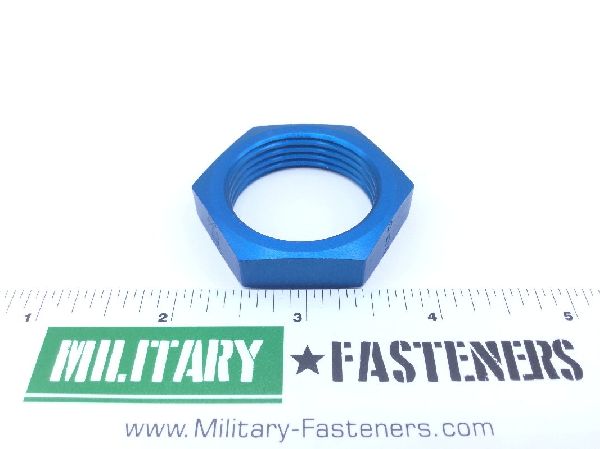

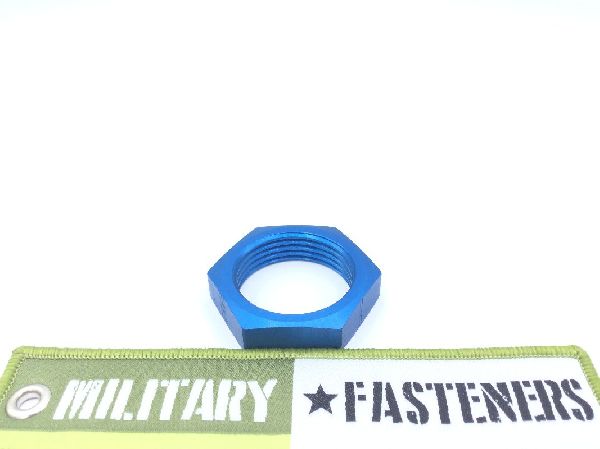

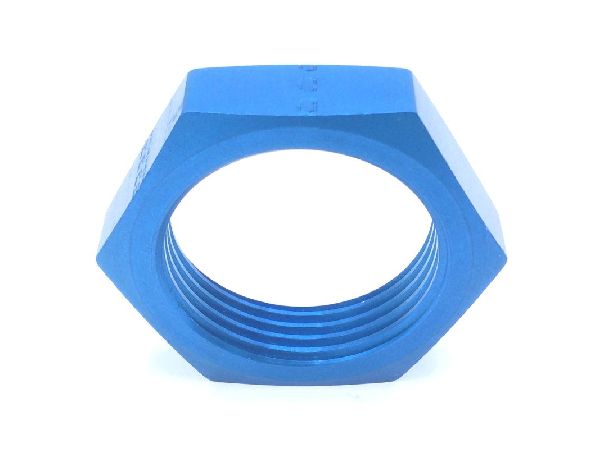

AN924-16D Plain Hexagon Nut

Product Series: AN
ECCN: EAR99
Schedule: 7318.16.0000

Price per Unit $17.94

Units per Pack 5

Price per Pack $89.70

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 5

Total Unit Quantity:

Total Packs 1

Total Price $89.70

Add item to quote

Material

Aluminum alloy 2024

Thread Class

3b

Thread Series

Un

Thread Size

1.3125 inches

Bearing Surface Type: Chamfered
Countersink Angle: 90.0 degrees nut
Material Specification: Qq-a-225/6 federal specification single material response
Nut Height: Between 0.390 inches and 0.422 inches
Nut Style: Hexagon
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 12
Width Across Flats: Between 1.609 inches and 1.641 inches
