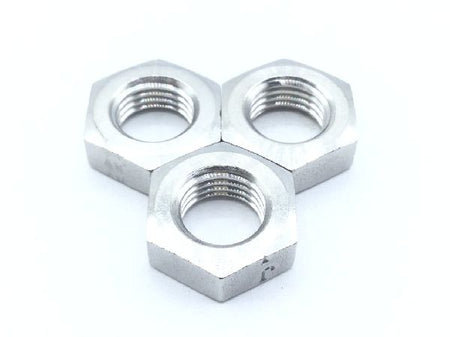

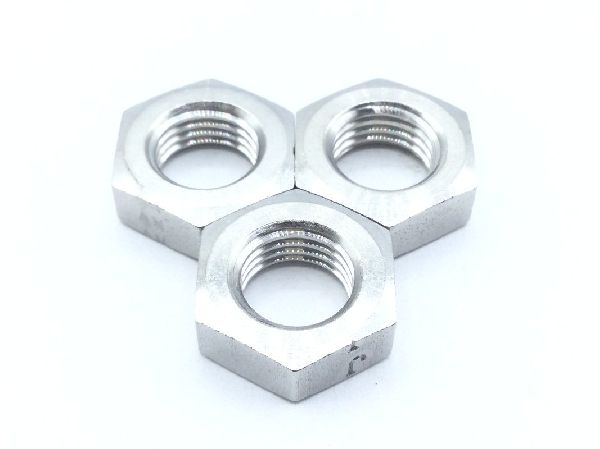

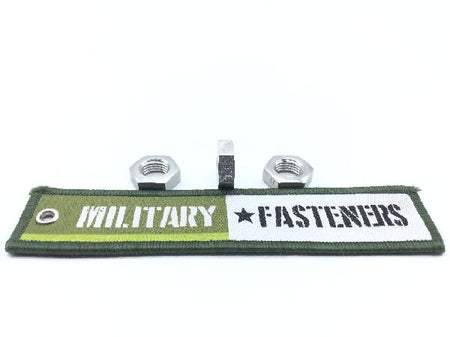

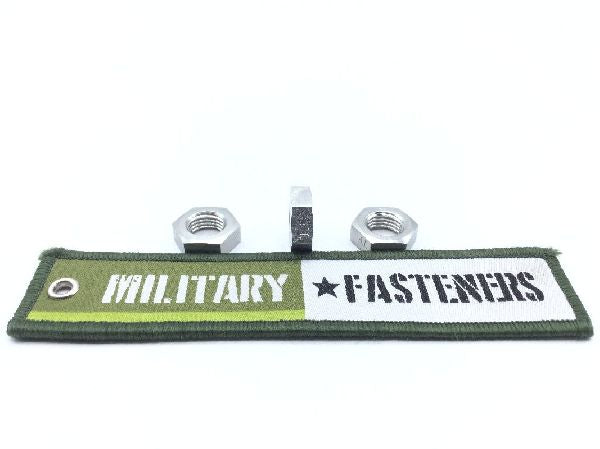

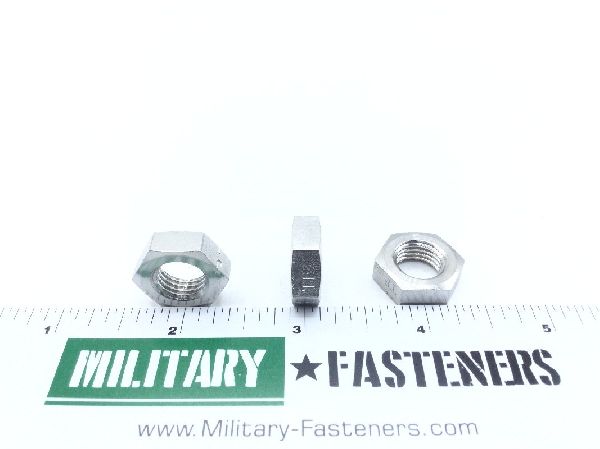

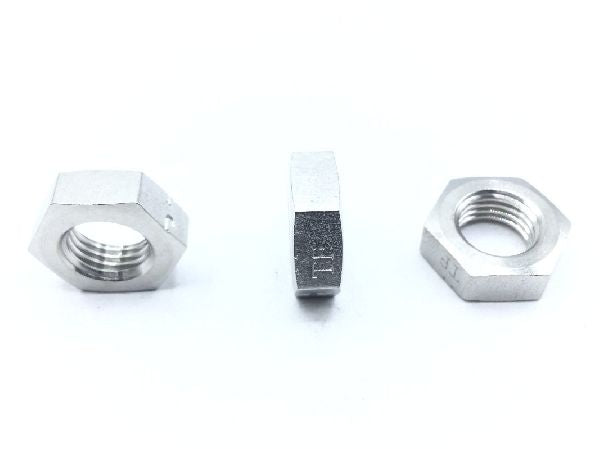

AN924-4J Plain Hexagon Nut

Product Series: AN
ECCN: EAR99
Schedule: 7318.16.0085

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Material

Steel comp 304

Surface Treatment

Mil-s-5002 military specification single treatment response

Thread Class

3b

Thread Series

Unf (fine thread)

Thread Size

0.438 inches

Bearing Surface Type: Chamfered
Material Specification: Qq-s-763 federal specification single material response
Nut Height: Between 0.234 inches and 0.266 inches
Nut Style: Hexagon
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 20
Width Across Flats: Between 0.684 inches and 0.691 inches
