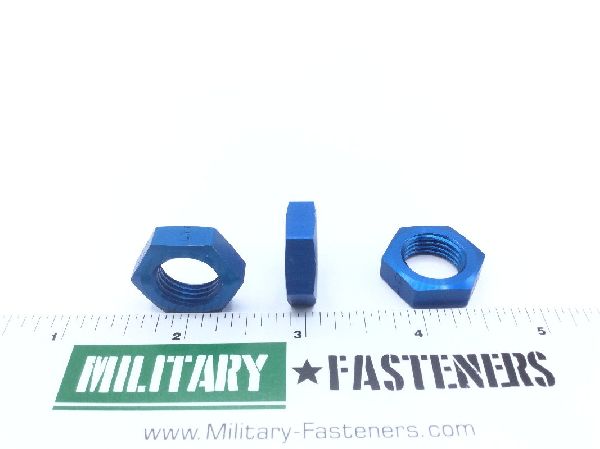

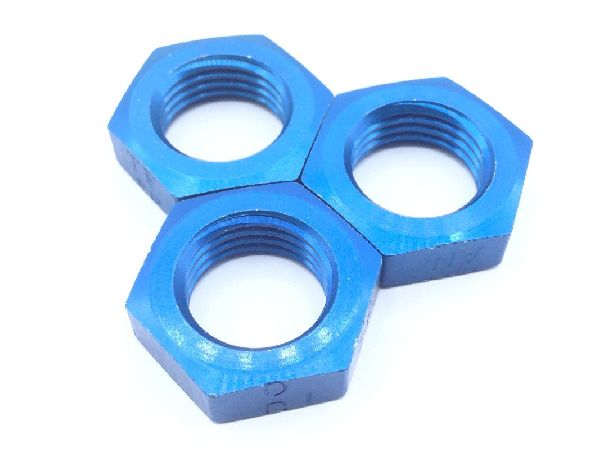

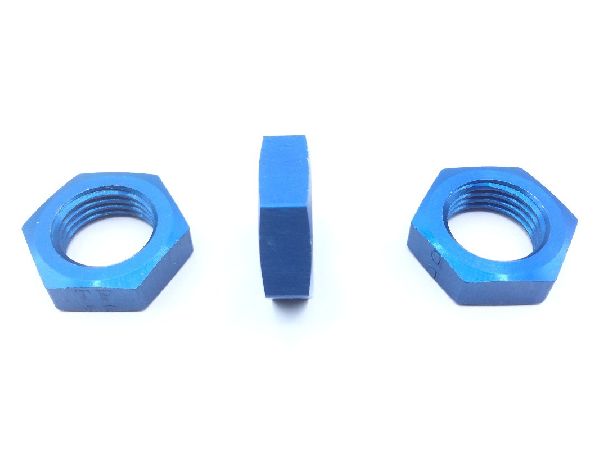

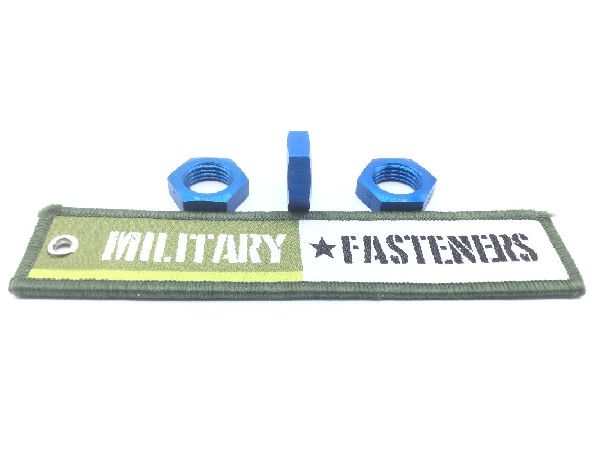

AN924-6D Plain Hexagon Nut

Product Series: AN
ECCN: EAR99
Schedule: 7318.16.0000

Price per Unit $4.50

Units per Pack 10

Price per Pack $45.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 10

Total Unit Quantity:

Total Packs 1

Total Price $45.00

Add item to quote

Material

Aluminum alloy 2014

Surface Treatment

Qq-a-696 federal specification single treatment response

Thread Class

3b

Thread Series

Unjf (fine thread with external controlled root radius)

Thread Size

0.562 inches

Bearing Surface Type: Chamfered
Material Specification: Qq-a-266 federal specification single material response
Nut Height: Between 0.250 inches and 0.282 inches
Nut Style: Hexagon
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 18
Width Across Flats: Between 0.809 inches and 0.816 inches
