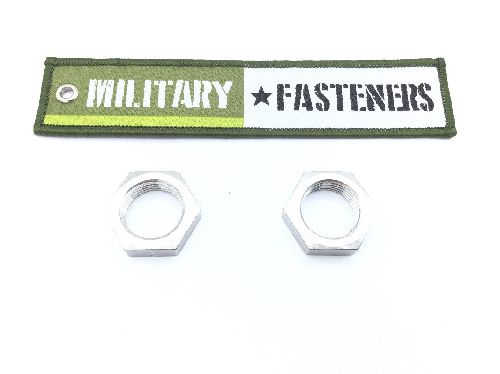

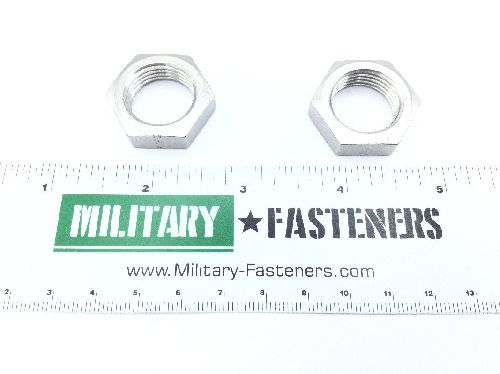

AN924-8K Plain Hexagon Nut

Product Series: AN
ECCN: EAR99
Schedule: 7318.16.0000

Price per Unit $23.56

Units per Pack 5

Price per Pack $117.80

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 5

Total Unit Quantity:

Total Packs 1

Total Price $117.80

Add item to quote

Material

Steel comp 316

Surface Treatment

Mil-s-5002 military specification single treatment response

Thread Class

3b

Thread Series

Unf (fine thread)

Thread Size

0.750 inches

Bearing Surface Type: Chamfered
Countersink Angle: 90.0 degrees nut
End Application: Mrap buffalo mk2a2
Material Specification: Qq-s-763 federal specification single material response
Nut Height: Between 0.296 inches and 0.328 inches
Nut Style: Hexagon
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 16
Width Across Flats: Between 0.996 inches and 1.003 inches
