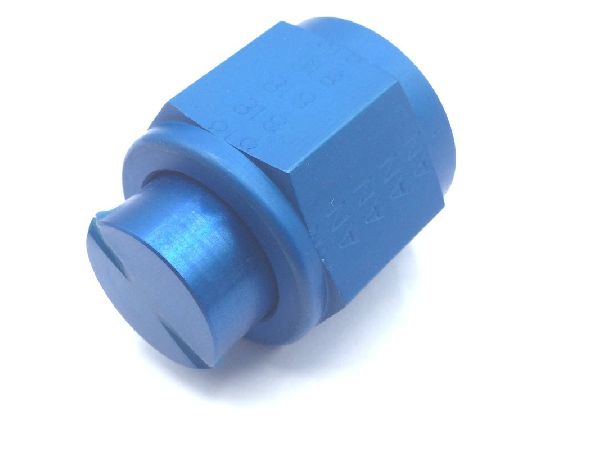

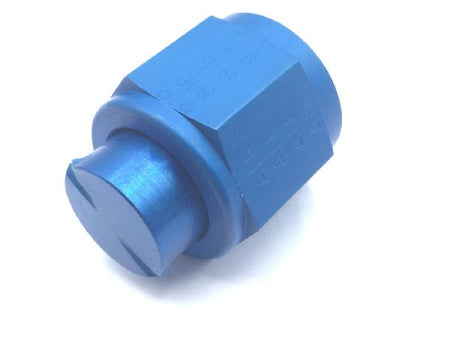

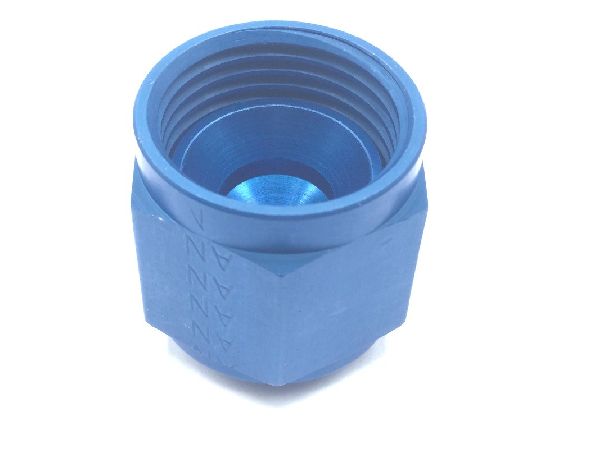

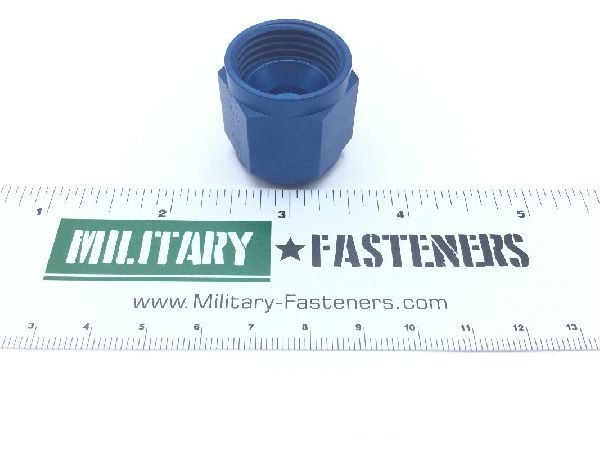

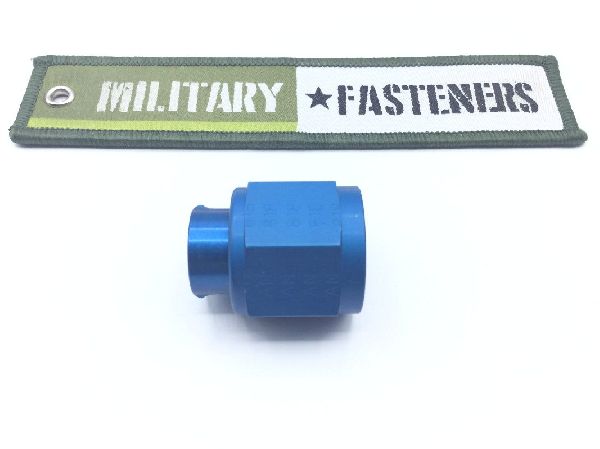

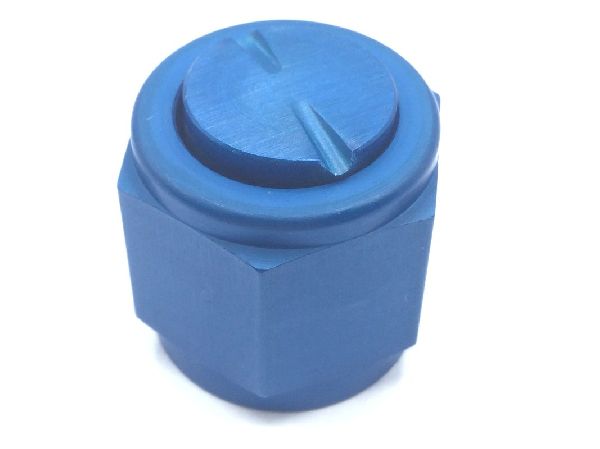

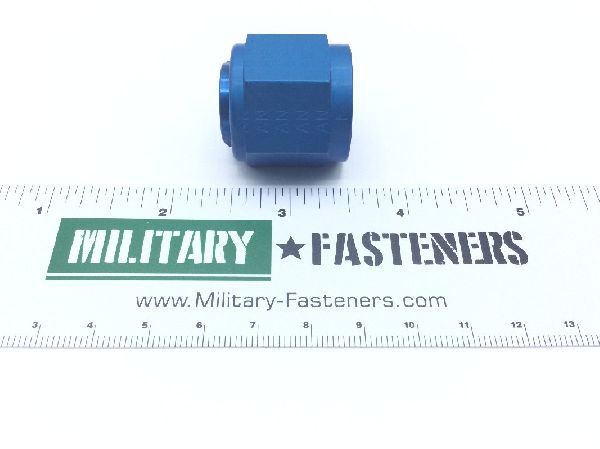

AN929-10 Tube Cap

Product Series: AN
ECCN: EAR99
Schedule: 7609.00.0000

Price per Unit $18.11

Units per Pack 5

Price per Pack $90.55

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 5

Total Unit Quantity:

Total Packs 1

Total Price $90.55

Add item to quote

Material

Aluminum alloy 7075 or aluminum alloy 2014

Surface Treatment

Type 2 military specification single treatment response mil-a-8625

Thread Class

3b internal

Connection Style: Pressure seal flared
End Application: Aircraft fluid systems
Material Specification: T6 federal specification 2nd material response t851 federal specification 1st material response or qq-a-266 t6 federal specification 1st material response or qq-a-268 qq-a-268
Seat Angle: 37.0 degrees
Specification Data: 88044-an929 government standard and 81343-as4841 professional/industrial association standard
Style Designator: Flared tube cap
Thread Direction: Right-hand internal
Tube Outside Diameter For Which Designed: 0.625 inches
