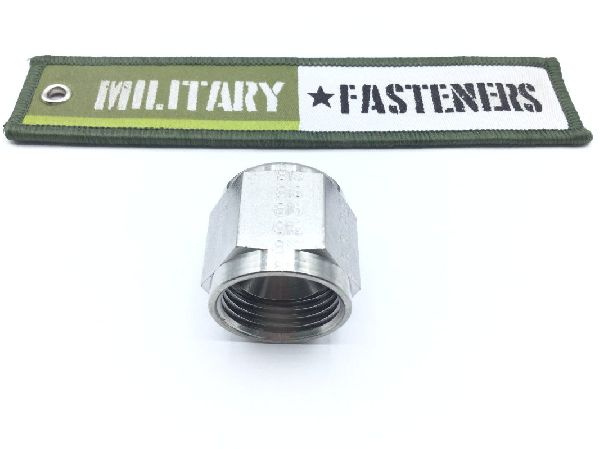

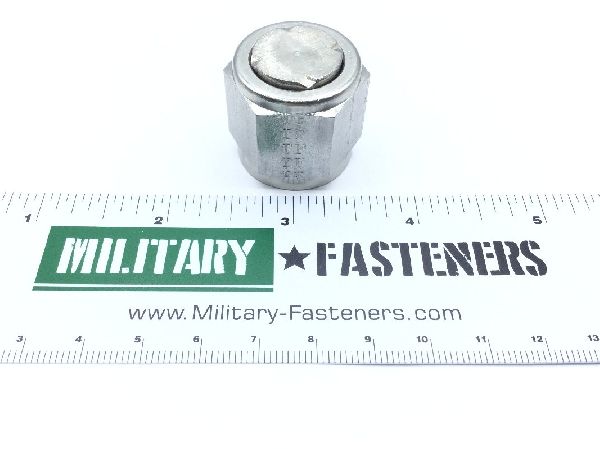

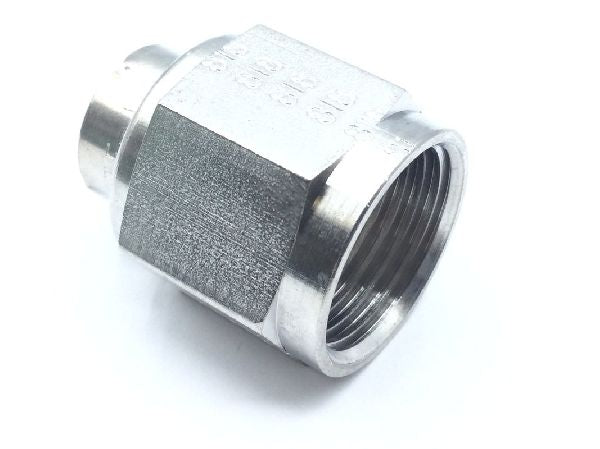

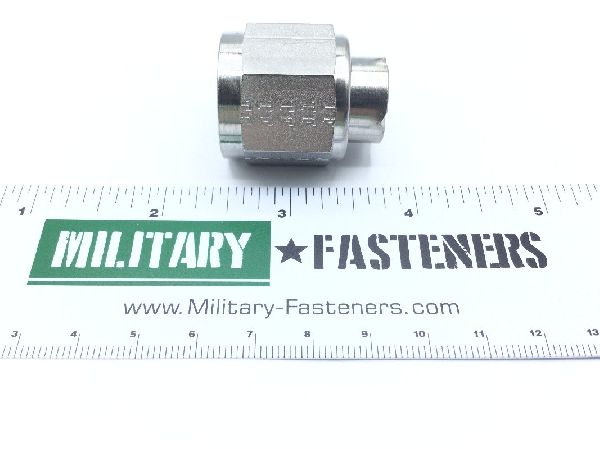

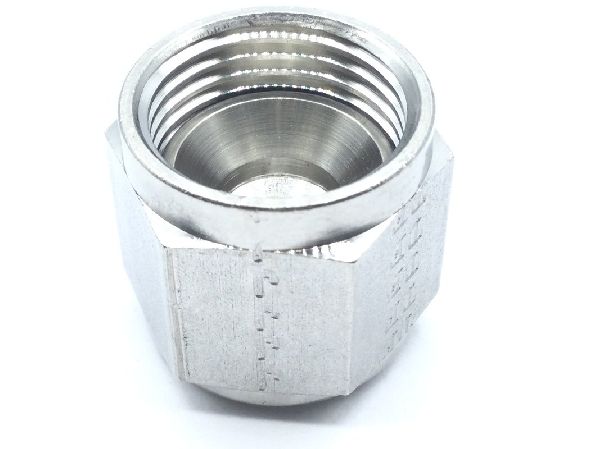

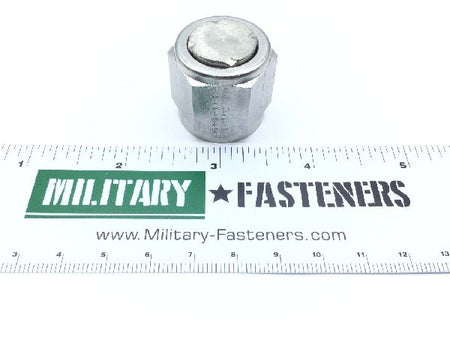

AN929-10J Tube Cap

Product Series: AN
ECCN: EAR99
Schedule: 7326.90.8695

Price per Unit $54.78

Units per Pack 1

Price per Pack $54.78

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 1

Total Unit Quantity:

Total Packs 1

Total Price $54.78

Add item to quote

Material

Steel comp 316 nut or stainless steel nut

Thread Class

3b internal

Connection Style: Pressure seal flared
Material Specification: Siai 304/sae 30304 federal standard 2nd material response cap aisi 316/sae 30316 federal standard 1st material response cap or 66 66
Seat Angle: 37 degrees
Specification Data: 88044-an929 government standard and 81343-as4841 professional/industrial association standard
Style Designator: Flared tube cap
Thread Direction: Right-hand internal
Tube Outside Diameter For Which Designed: 0.625 inches
