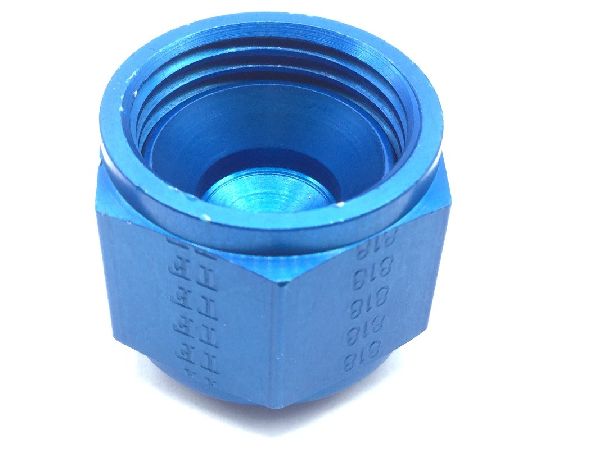

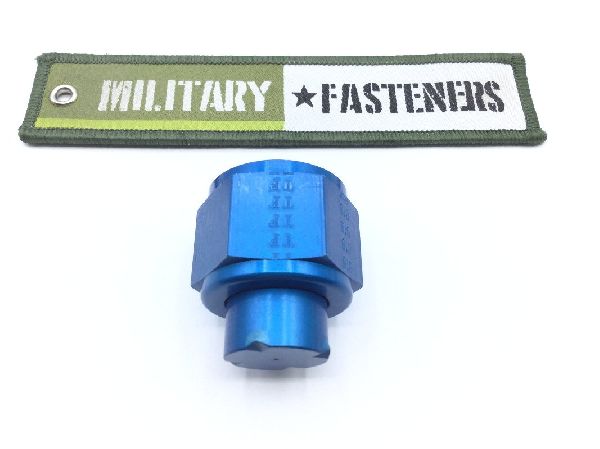

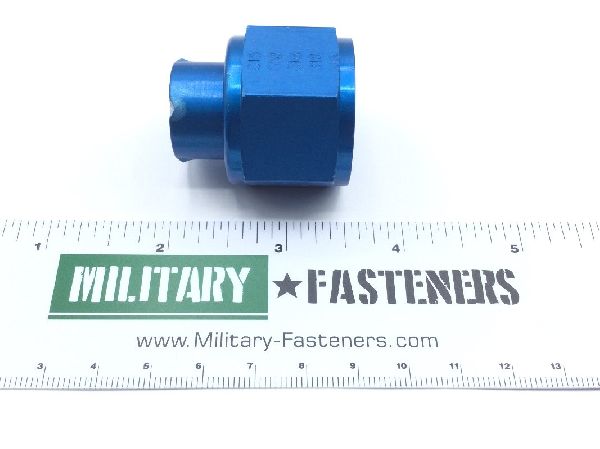

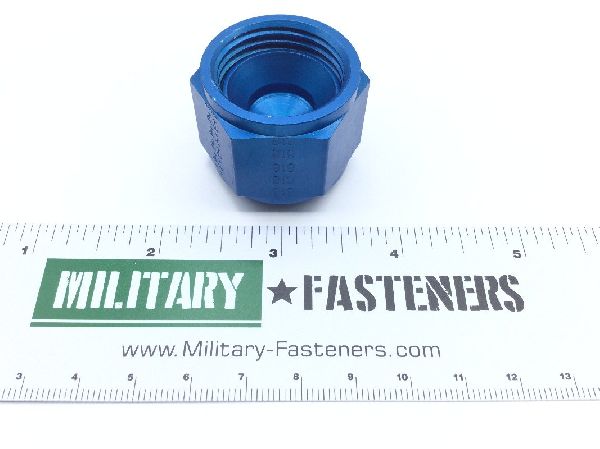

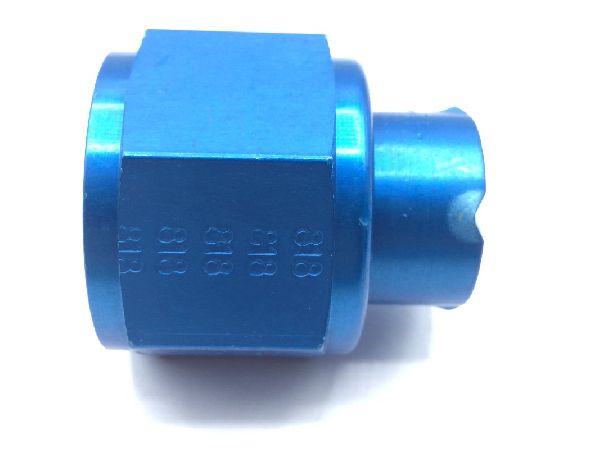

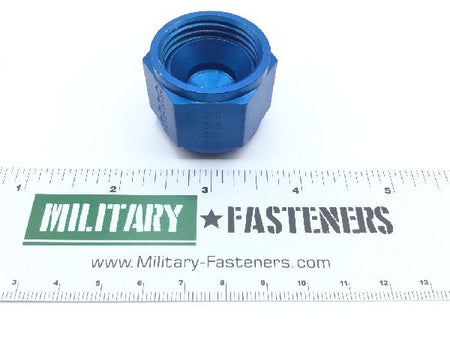

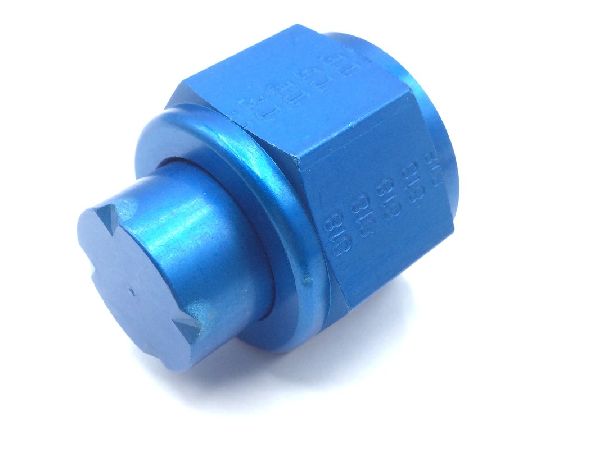

AN929-12 Tube Cap

Product Series: AN
ECCN: EAR99
Schedule: 7609.00.0000

Price per Unit $21.00

Units per Pack 2

Price per Pack $42.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 2

Total Unit Quantity:

Total Packs 1

Total Price $42.00

Add item to quote

Material

Aluminum alloy 7075 or aluminum alloy 2014

Surface Treatment

Type 2 military specification single treatment response mil-a-8625

Thread Class

3b internal

Thread Size

1.062 inches internal

Connection Style: Pressure seal flared
Criticality Code Justification: Feat
End Application: Grumman aerospace corporation a10 aircraft
Material Specification: T6 federal specification 2nd material response t851 federal specification 1st material response or qq-a-266 t6 federal specification 1st material response or qq-a-268 qq-a-268
Seat Angle: 37.0 degrees
Special Features: Weapon system essential
Specification Data: 88044-an929 government standard and 81343-as4841 professional/industrial association standard
Style Designator: Flared
Thread Direction: Right-hand internal
Thread Qty Per Inch (tpi): 12 internal
Thread Series Designator: Unj internal
Tube Outside Diameter For Which Designed: 0.750 inches
