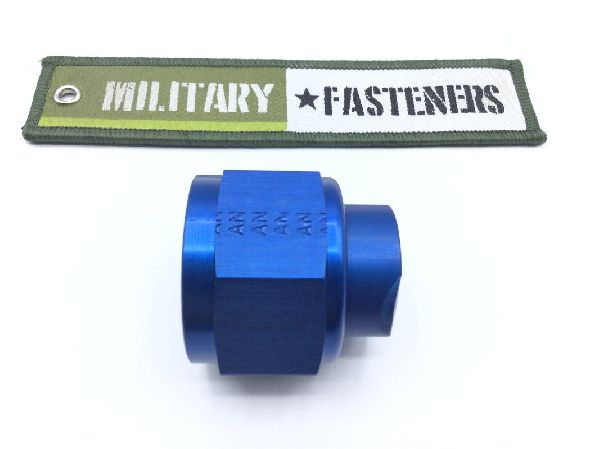

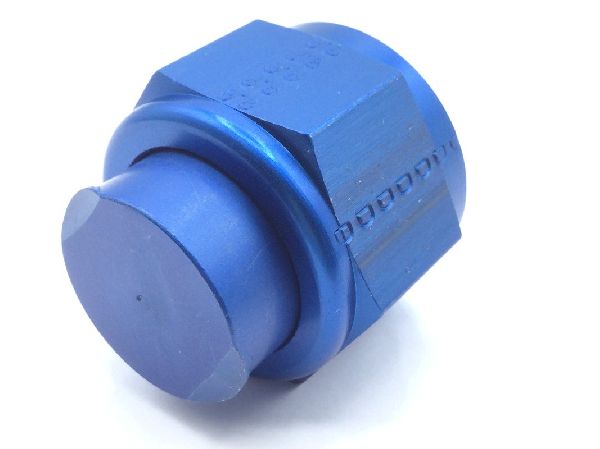

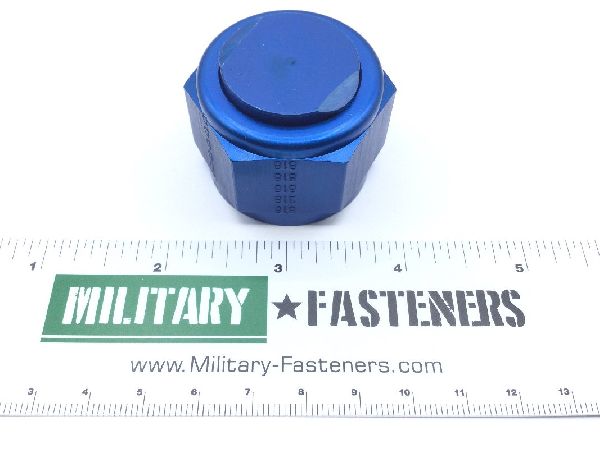

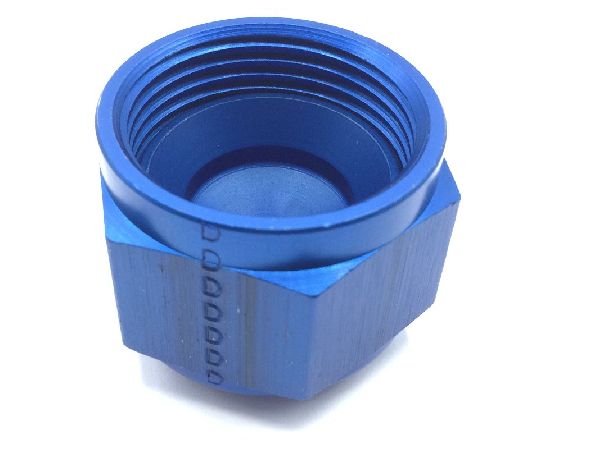

AN929-16 Tube Cap

Product Series: AN
ECCN: EAR99
Schedule: 7609.00.0000

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Material

Aluminum alloy 7075

Surface Treatment

Class 2 military specification single treatment response type 2 mil-a-8625

Thread Class

3b internal

Thread Size

1.375 inches internal

Connection Style: Pressure seal flared
End Application: Ah-1s (mc) attack helicopter
Material Specification: T6 or t851 federal specification single material response t6 federal specification single material response or qq-a-225/6 qq-a-225/4
Maximum Operating Pressure: 1500 pounds per square inch
Seat Angle: 37 degrees
Specification Data: 88044-as4841 government standard and 88044-an929 professional/industrial association standard
Style Designator: Flared
Thread Direction: Right-hand internal
Thread Qty Per Inch (tpi): 12 internal
Thread Series Designator: Unf (fine thread) internal
Tube Outside Diameter For Which Designed: 1 inches
