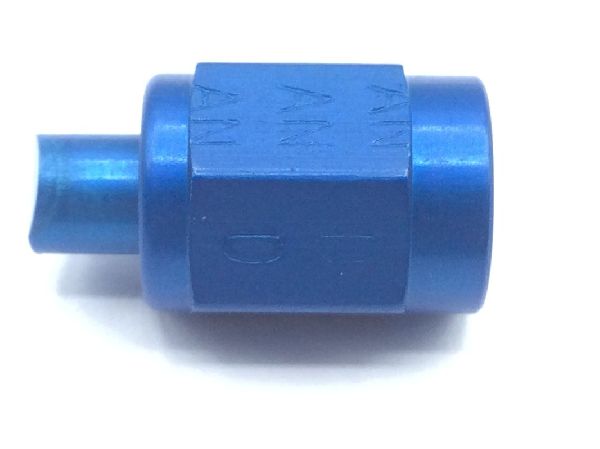

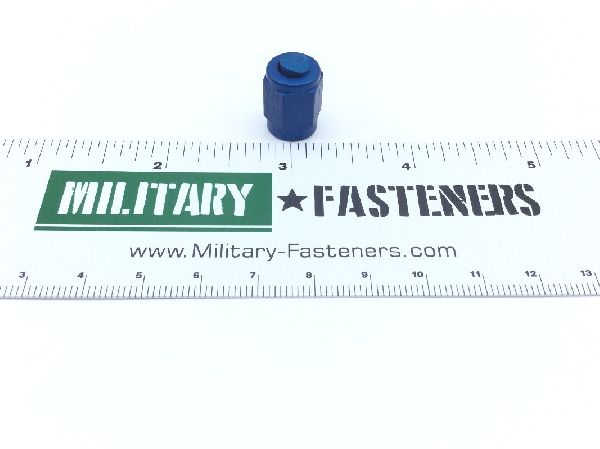

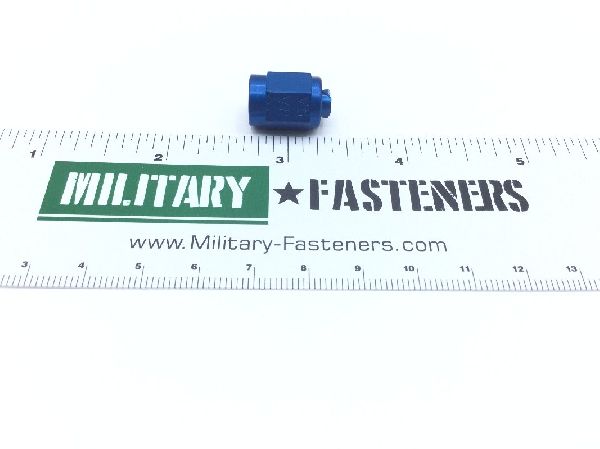

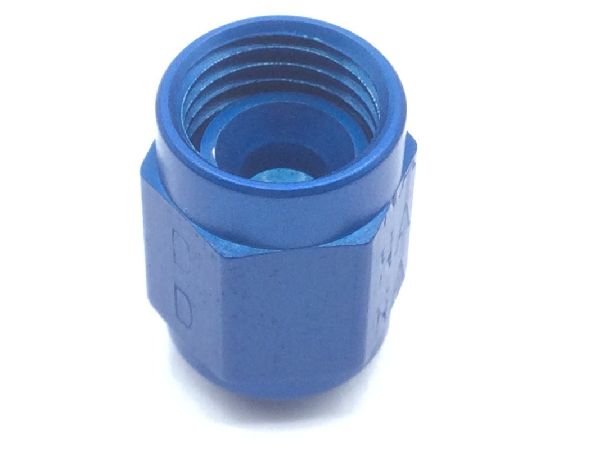

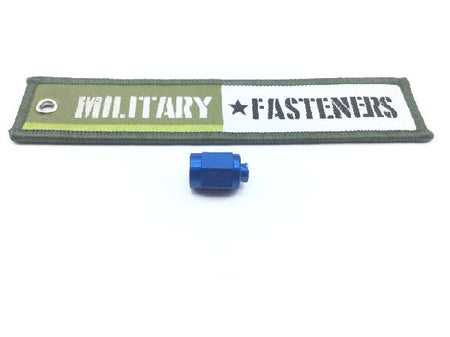

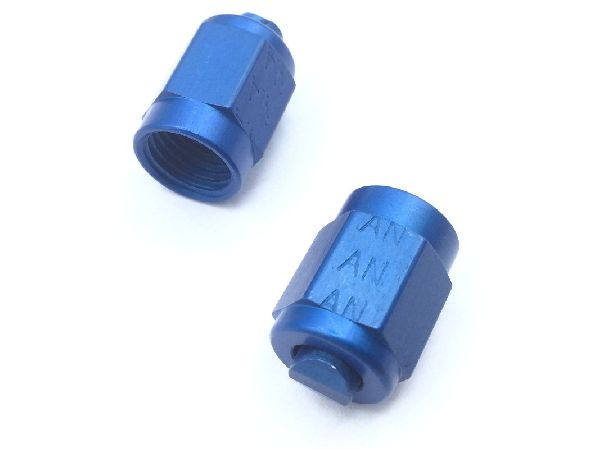

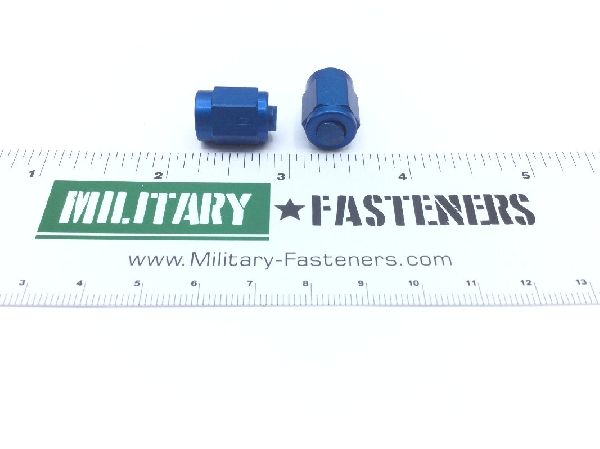

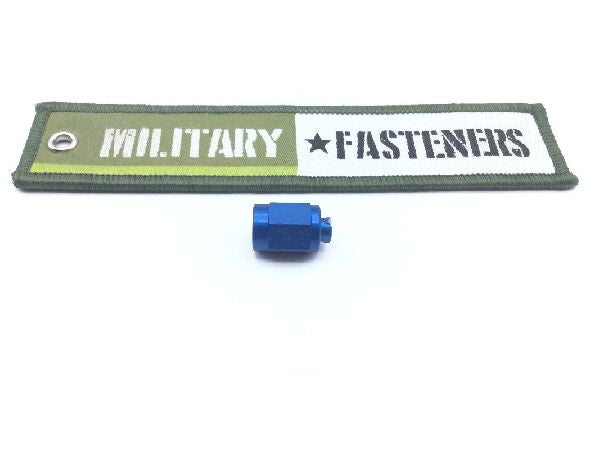

AN929-3 Tube Cap

Product Series: AN
ECCN: EAR99
Schedule: 7609.00.0000

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Material

Aluminum alloy 7075 or aluminum alloy 2014

Surface Treatment

Type 2 military specification single treatment response mil-a-8625

Thread Class

3b internal

Thread Size

0.375 inches internal

Connection Style: Pressure seal flared
End Application: Aircraft and helicopter applications
Material Specification: T6 federal specification 2nd material response t851 federal specification 1st material response or qq-a-266 t6 federal specification 1st material response or qq-a-268 qq-a-268
Maximum Operating Pressure: 3000.0 pounds per square inch
Seat Angle: 37.0 degrees
Specification Data: 88044-an929 government standard and 81343-as4841 professional/industrial association standard
Style Designator: Flared tube cap
Thread Direction: Right-hand internal
Thread Series Designator: Unf (fine thread) internal
Tube Outside Diameter For Which Designed: 0.188 inches
