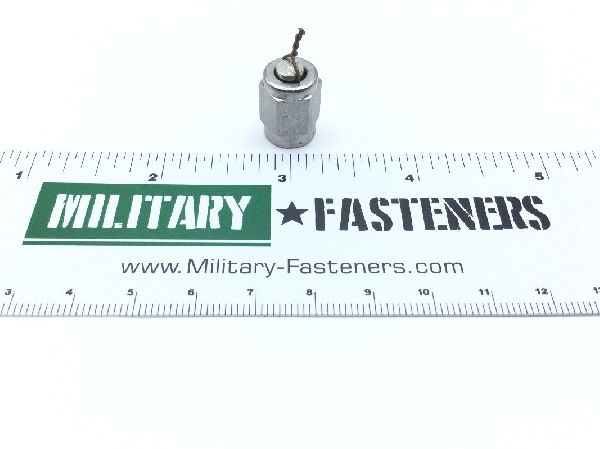

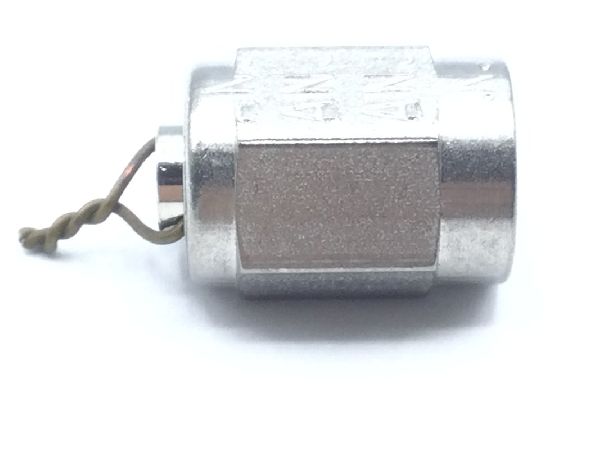

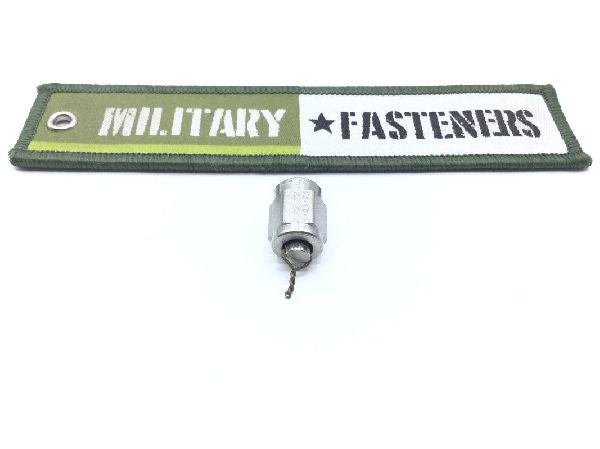

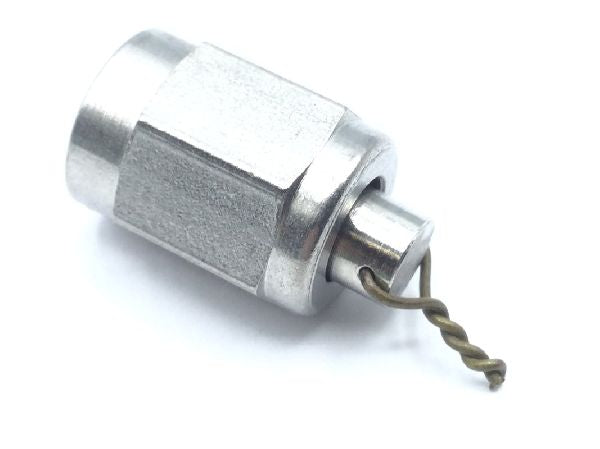

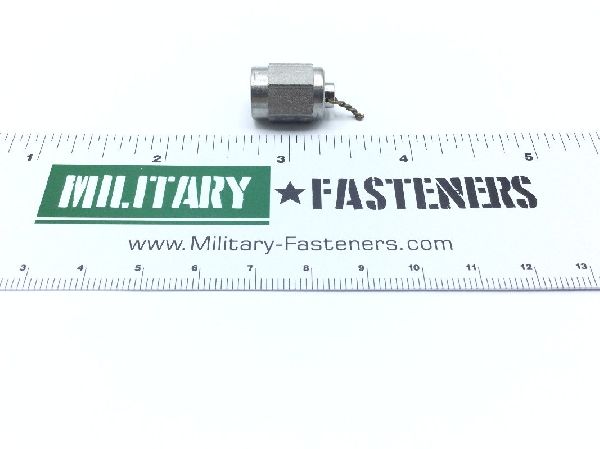

AN929-3J Tube Cap

Product Series: AN
ECCN: EAR99
Schedule: 7609.00.0000

Price per Unit $30.49

Units per Pack 1

Price per Pack $30.49

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 1

Total Unit Quantity:

Total Packs 1

Total Price $30.49

Add item to quote

Material

Steel comp 304 or steel comp 316 nut

Surface Treatment

Type 1 federal specification single treatment response qq-p-35

Thread Class

3b internal

Thread Size

0.375 inches internal

Connection Style: Pressure seal flared
Criticality Code Justification: Feat
Iii End Application: Ov10 ta4j sh60 hh60 h3 f15 f4 c135 acm129 aircraft
Material Specification: Fed standard 66 federal standard single material response cap
Maximum Operating Pressure: 3000 pounds per square inch
Seat Angle: 37 degrees
Special Features: Weapon system essential
Specification Data: 88044-an929 government standard and 81343-as4841 professional/industrial association standard
Style Designator: Flared tube cap
Thread Direction: Right-hand internal
Thread Series Designator: Unjf (fine thread with external controlled root radius) internal
Tube Outside Diameter For Which Designed: 0.188 inches
