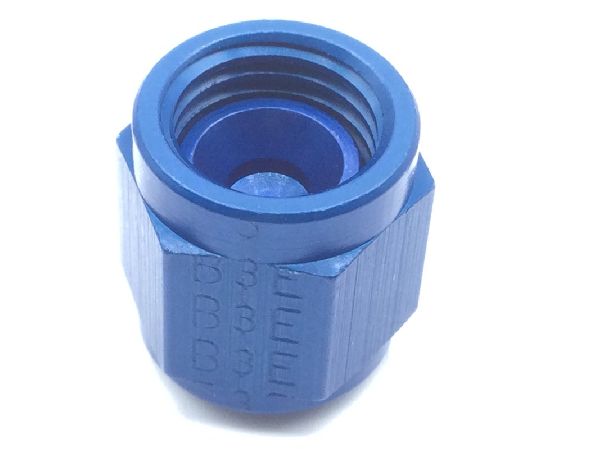

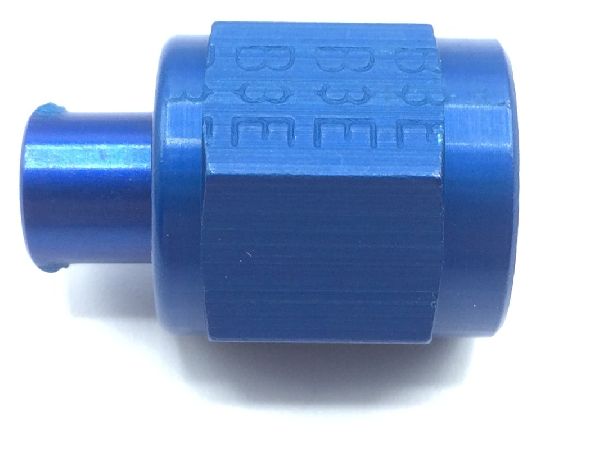

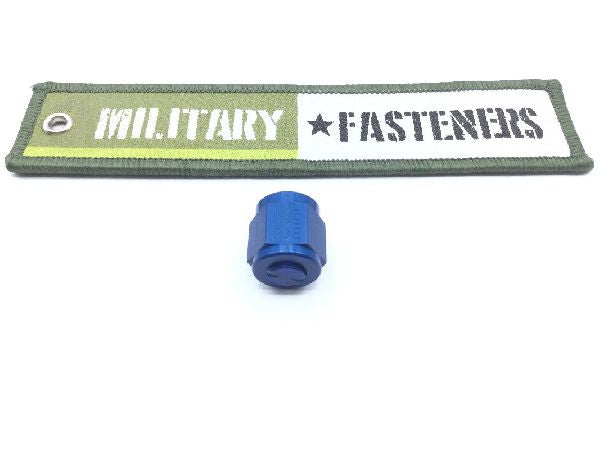

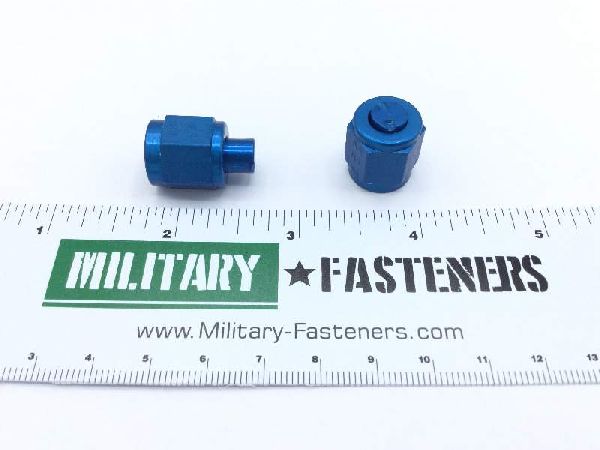

AN929-4 Tube Cap

Product Series: AN
ECCN: EAR99
Schedule: 7609.00.0000

Price per Unit $6.24

Units per Pack 10

Price per Pack $62.40

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 10

Total Unit Quantity:

Total Packs 1

Total Price $62.40

Add item to quote

Material

Aluminum alloy 2014

Surface Treatment

Type 2 military specification single treatment response mil-a-8625

Thread Class

3b internal

Thread Size

0.438 inches internal

Connection Style: Pressure seal flared
End Application: Model a-10 grumman aircraft
Material Specification: T6 federal specification single material response qq-a-225/4
Maximum Operating Pressure: 3000.0 pounds per square inch
Nondefinitive Specification/std Data: 32 figure
Seat Angle: 37.0 degrees
Specification Data: 88044-an929 government standard and 81343-as4841 professional/industrial association standard
Style Designator: Flared tube cap
Thread Direction: Right-hand internal
Thread Series Designator: Unf (fine thread) internal
Tube Outside Diameter For Which Designed: 0.250 inches
