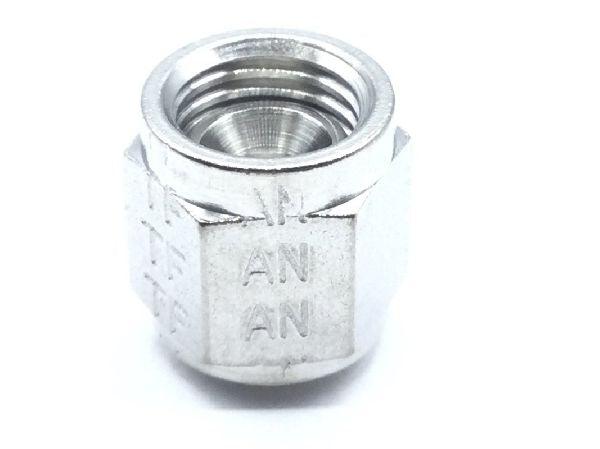

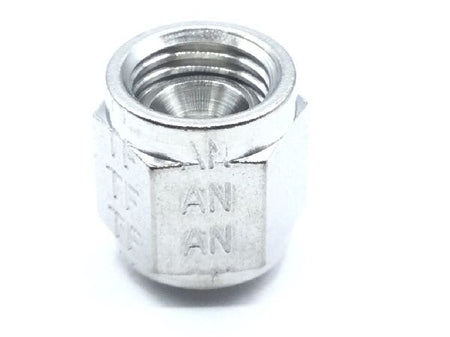

AN929-4J Tube Cap

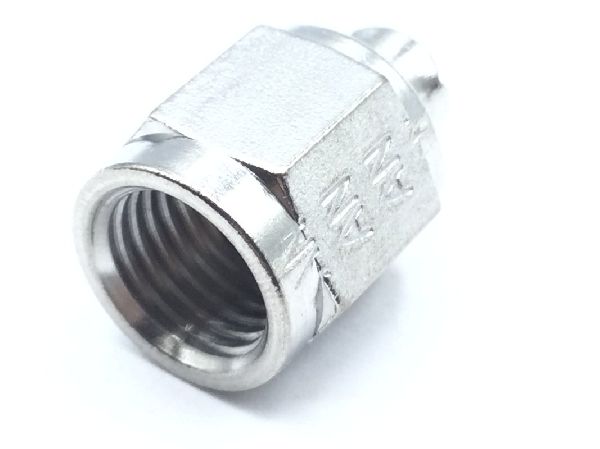

AN929-4J Tube Cap (2)

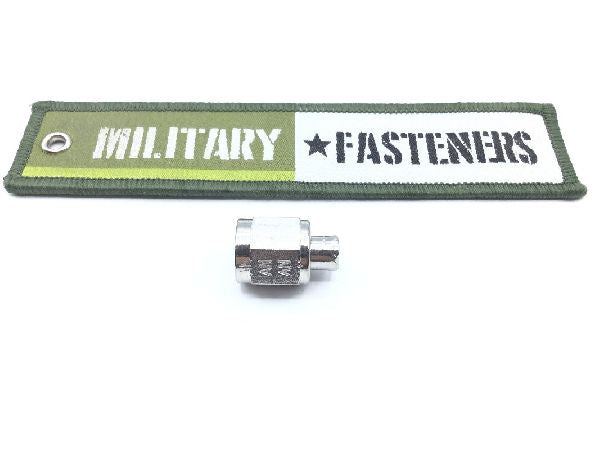

AN929-4J Tube Cap (3)

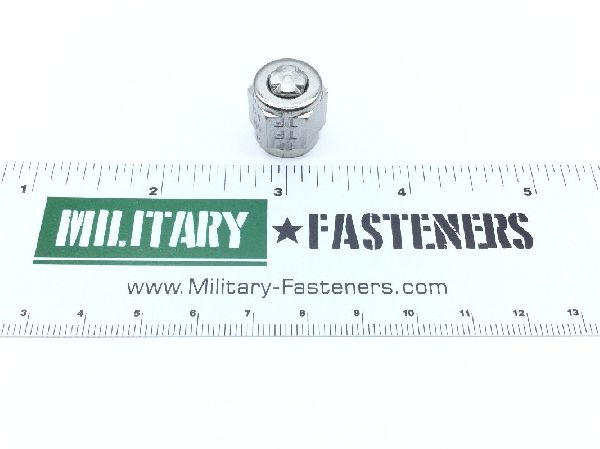

AN929-4J Tube Cap (4)

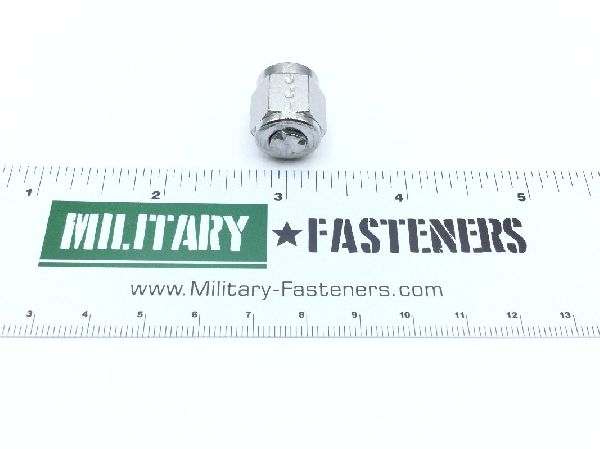

AN929-4J Tube Cap (5)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

AN929-4J Tube Cap

Product Series: AN
ECCN: EAR99
Schedule: 7609.00.0000

Price per Unit $23.00

Units per Pack 2

Price per Pack $46.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 2

Total Unit Quantity:

Total Packs 1

Total Price $46.00

Add item to quote

Material

Steel

Surface Treatment

Mil-s-5002 military specification single treatment response

Thread Class

3b internal

Thread Size

0.438 inches internal

Connection Style: Pressure seal flared
Material Specification: Qq-s-763 federal specification single material response
Seat Angle: 37.0 degrees
Style Designator: Flared tube cap
Thread Direction: Right-hand internal
Thread Series Designator: Unjf (fine thread with external controlled root radius) internal
Tube Outside Diameter For Which Designed: 0.250 inches
