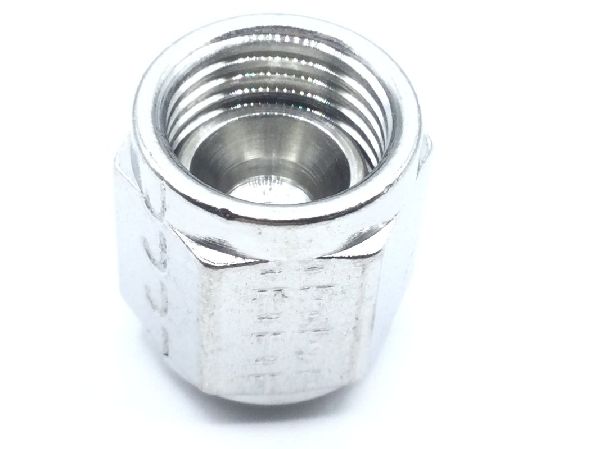

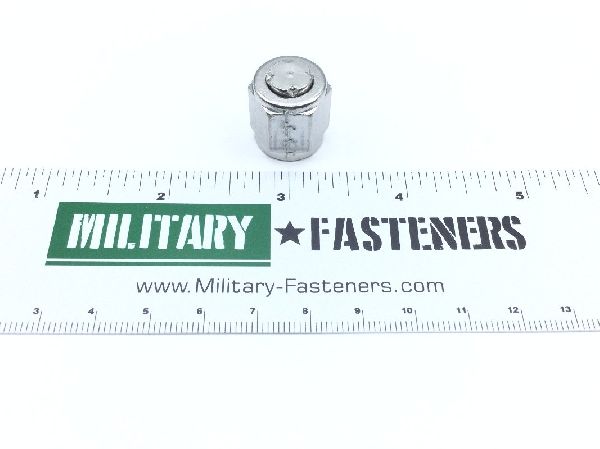

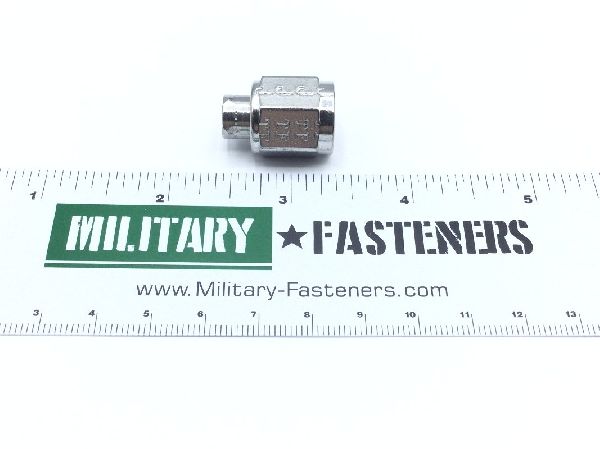

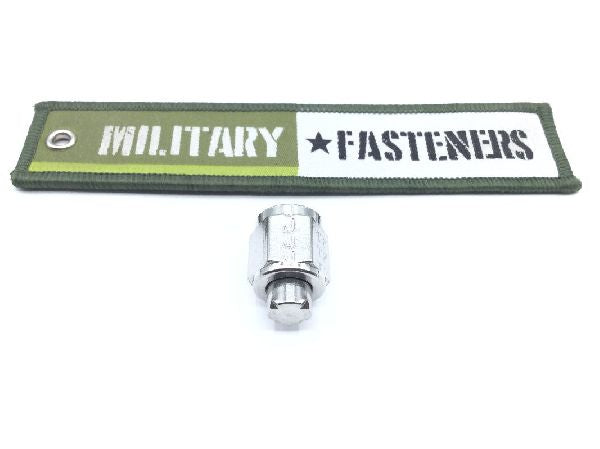

AN929-5J Tube Cap

Product Series: AN
ECCN: EAR99
Schedule: 7609.00.0000

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Material

Steel comp 304

Surface Treatment

Mil-s-5002 military specification single treatment response

Thread Class

3b internal

Thread Size

0.500 inches internal

Connection Style: Pressure seal flared
Material Specification: Qq-s-763 federal specification single material response
Seat Angle: 37.0 degrees
Specification Data: 88044-an929 government standard and 81343-as4841 professional/industrial association standard
Style Designator: Flared tube cap
Thread Direction: Right-hand internal
Thread Series Designator: Unf (fine thread) internal
Tube Outside Diameter For Which Designed: 0.312 inches
