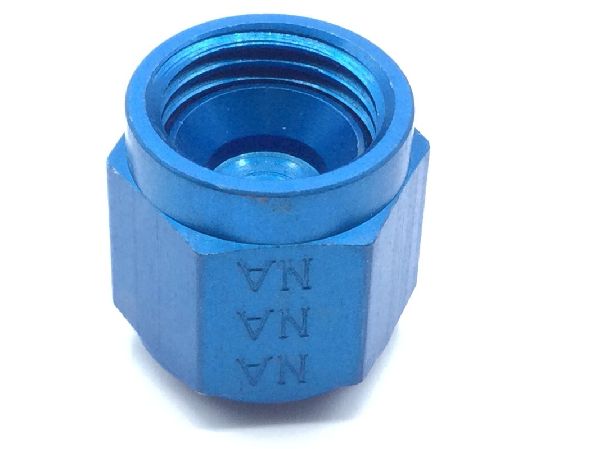

AN929-6 Tube Cap

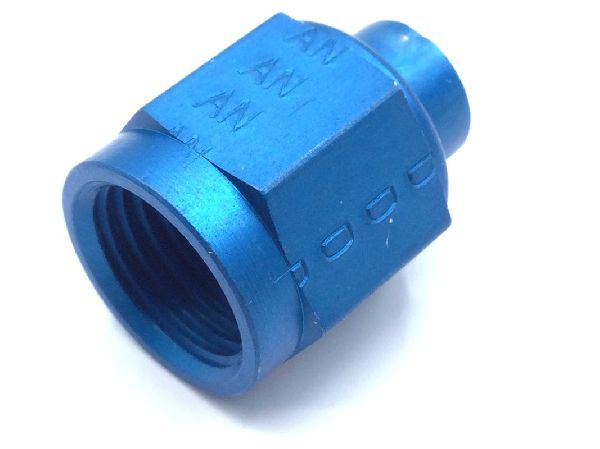

AN929-6 Tube Cap (2)

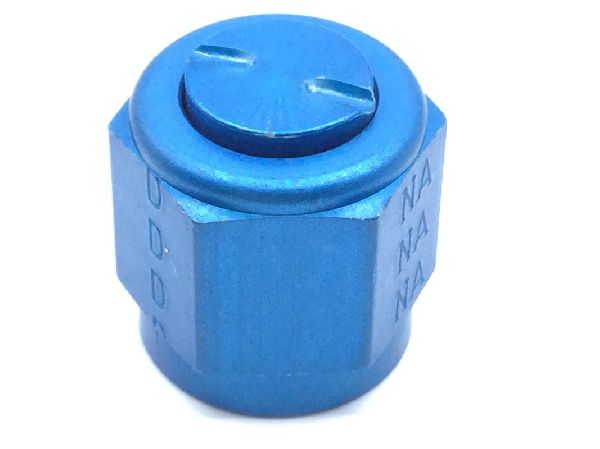

AN929-6 Tube Cap (3)

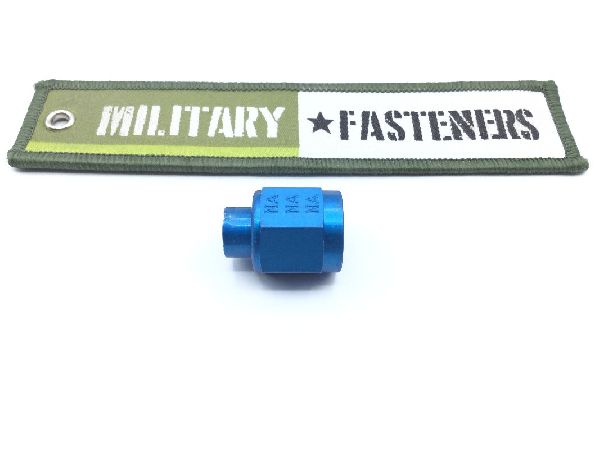

AN929-6 Tube Cap (4)

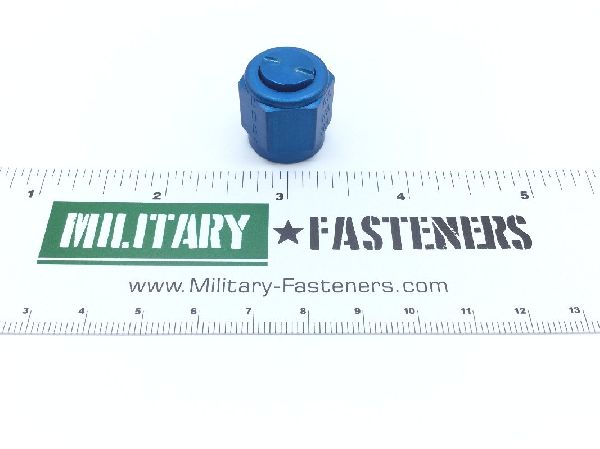

AN929-6 Tube Cap (5)

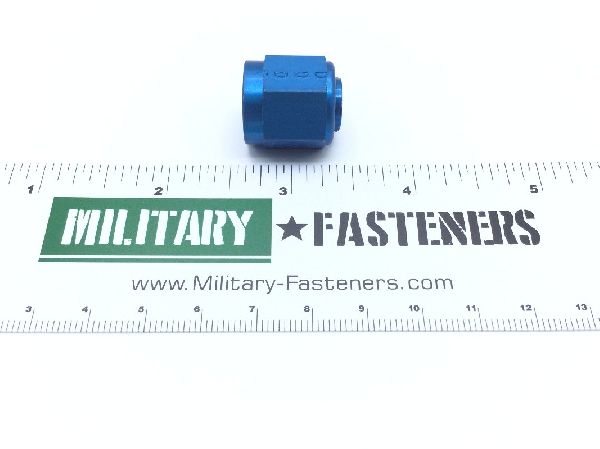

AN929-6 Tube Cap (6)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

AN929-6 Tube Cap

Product Series: AN
ECCN: EAR99
Schedule: 7609.00.0000

Price per Unit $6.98

Units per Pack 10

Price per Pack $69.80

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 10

Total Unit Quantity:

Total Packs 1

Total Price $69.80

Add item to quote

Material

Aluminum alloy

Thread Class

3b internal

Thread Size

0.562 inches internal

Connection Style: Pressure seal flared
End Application: Rq-4a
Part Name Assigned By Controlling Agency: Pressure seal flaredtube fitting cap assembly
Seat Angle: 37 degrees
Specification Data: 88044-an929 government standard
Style Designator: Flared tube cap
Thread Direction: Right-hand internal
Thread Series Designator: Unjf (fine thread with external controlled root radius) internal
Tube Outside Diameter For Which Designed: 0.375 inches
