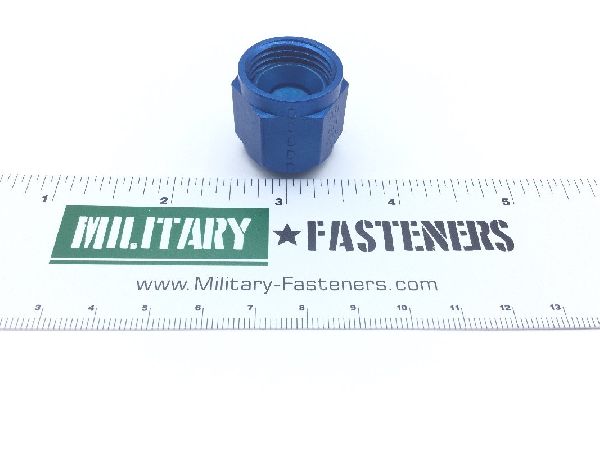

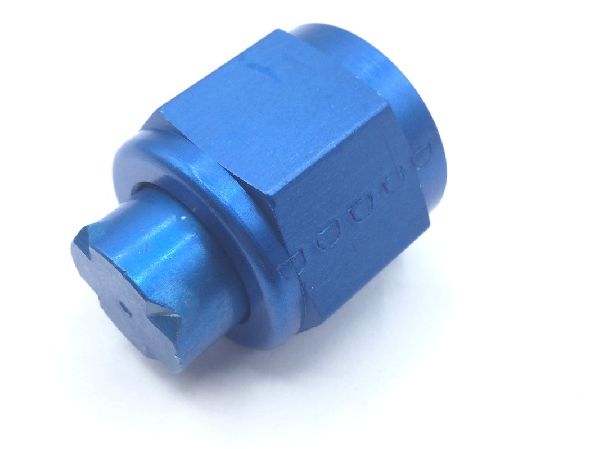

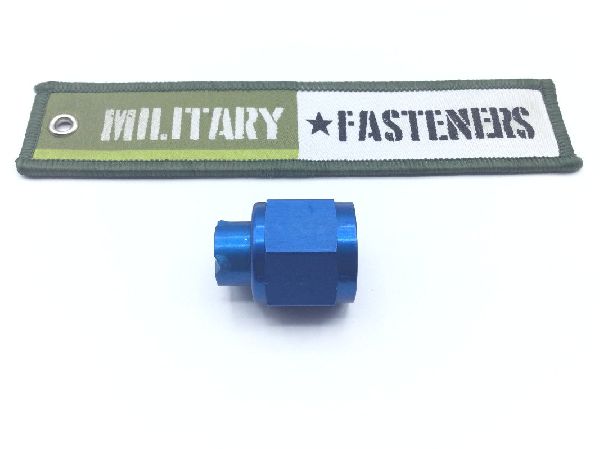

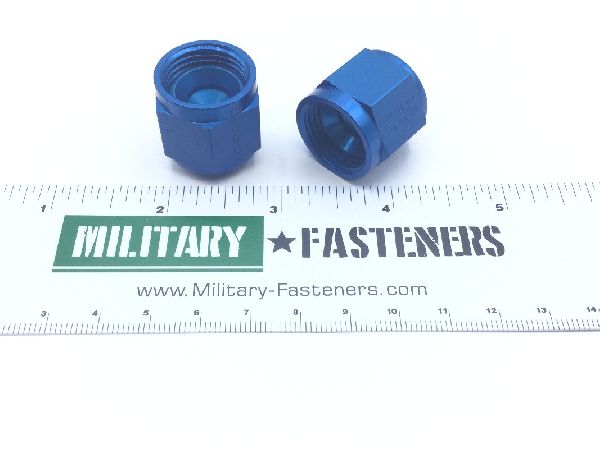

AN929-8 Tube Cap

Product Series: AN
ECCN: EAR99
Schedule: 7609.00.0000

Price per Unit $11.55

Units per Pack 5

Price per Pack $57.75

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 5

Total Unit Quantity:

Total Packs 1

Total Price $57.75

Add item to quote

Material

Aluminum alloy 2024

Surface Treatment

Type 2 military specification single treatment response mil-a-8625

Thread Class

3b internal

Thread Size

0.750 inches internal

Connection Style: Pressure seal flared
End Application: prowler ea-6b 45n aircraft
Material Specification: Qq-a-225/6 federal specification single material response
Seat Angle: 37.0 degrees
Special Features: One hole 0.082 in. diameter at 45.0 degrees angle cap drilled for attachment of safety chain
Specification Data: 88044-an929 government standard and 81343-as4841 professional/industrial association standard
Style Designator: Flared tube cap
Thread Direction: Right-hand internal
Thread Series Designator: Unjf (fine thread with external controlled root radius) internal
Tube Outside Diameter For Which Designed: 0.500 inches
