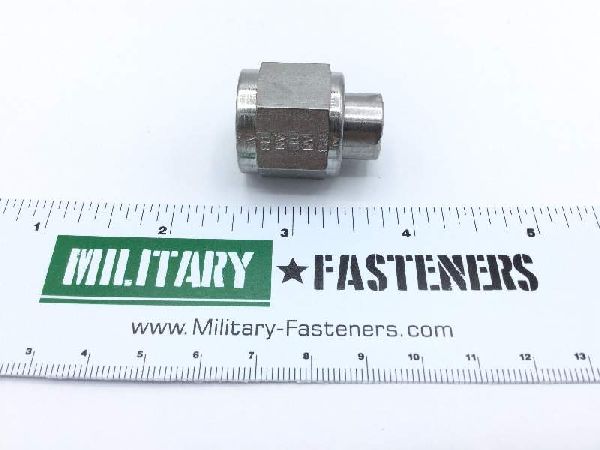

AN929-8J Tube Cap

Product Series: AN
ECCN: EAR99
Schedule: 7609.00.0000

Price per Unit $38.73

Units per Pack 1

Price per Pack $38.73

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 1

Total Unit Quantity:

Total Packs 1

Total Price $38.73

Add item to quote

Material

Steel comp 304 nut

Surface Treatment

Type 1 federal specification single treatment response qq-p-35

Thread Class

3b internal

Thread Size

0.75 inches internal

Connection Style: Pressure seal flared
Material Specification: Fed std66 federal standard all material responses nut
Maximum Operating Pressure: 3000 pounds per square inch
Seat Angle: 37 degrees
Specification Data: 88044-an929 government standard and 81343-as4841 professional/industrial association standard
Style Designator: Flareless tube cap
Thread Direction: Right-hand internal
Thread Series Designator: Unf (fine thread) internal
Tube Outside Diameter For Which Designed: 0.50 inches
