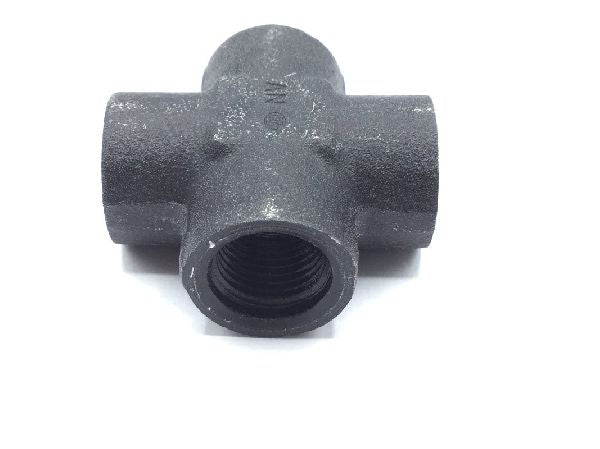

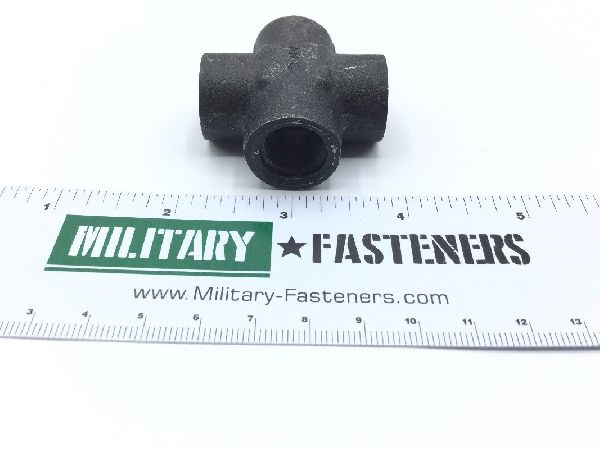

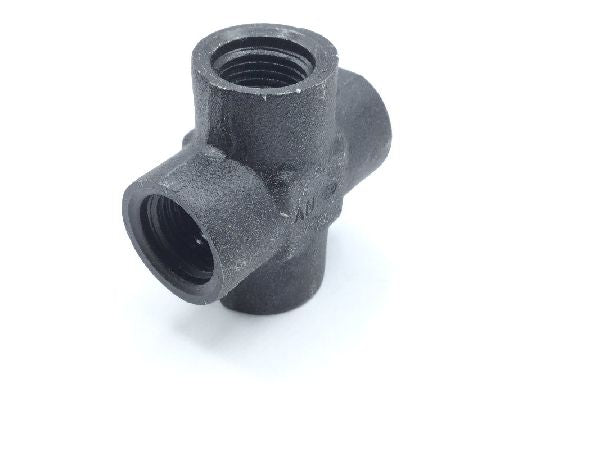

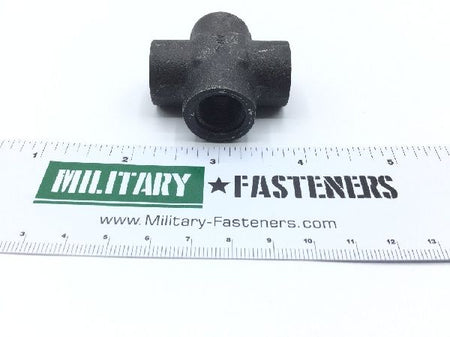

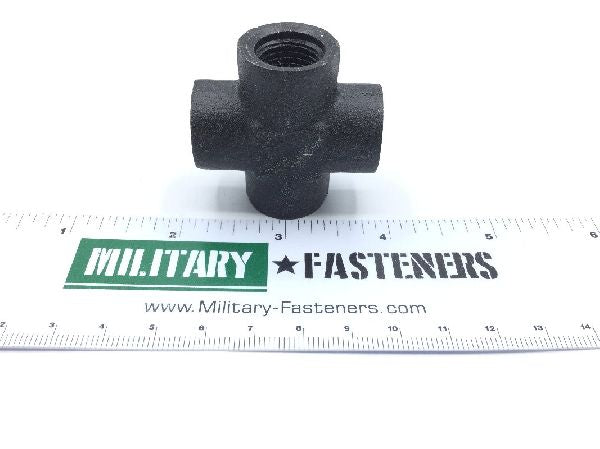

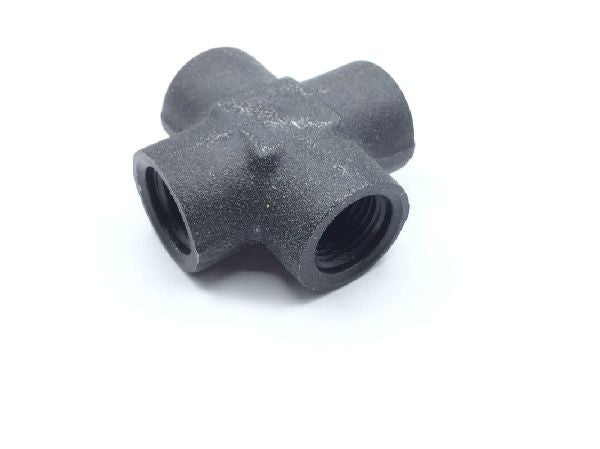

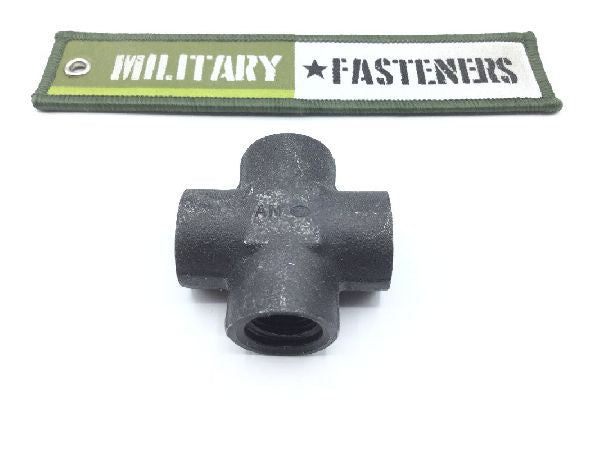

AN937-6 Boss Cross

Product Series: AN
ECCN: EAR99

Price per Unit $153.77

Units per Pack 1

Price per Pack $153.77

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 1

Total Unit Quantity:

Total Packs 1

Total Price $153.77

Add item to quote

Material

Steel comp 1137 or steel comp 1141

Surface Treatment

Cl 2 federal specification single treatment response or type 2 type 1 qq-p-416

Thread Class

3b all ends

Thread Size

0.562 inches all ends

Connection Style: Gasket seal (boss) all ends
Connection Type: Threaded internal boss all ends
Leg Length: 0.802 inches all ends and 0.820 inches all ends
Maximum Operating Pressure: 3000.0 pounds per square inch single response
Maximum Operating Temp: -65.0 degrees fahrenheit 2nd response
Media For Which Designed: Water-oil-gas 1st response
Specification Data: 88044-an937 government standard and 81343-as4875 professional/industrial association standard
Thread Series Designator: Unjf (fine thread with external controlled root radius) all ends
