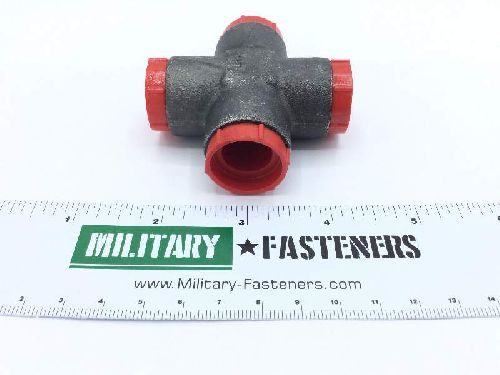

AN937-8 Boss Cross

Product Series: AN
ECCN: EAR99
Schedule: 7326.90.8695

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Material

Steel

Surface Treatment

Cl 2 federal specification single treatment response type 1 qq-p-416

Thread Class

3b all ends

Thread Size

0.750 inches all ends

Connection Style: Gasket seal (boss) all ends
Connection Type: Threaded internal boss all ends
Leg Length: 1.000 inches all ends
Maximum Operating Pressure: 3000.0 pounds per square inch single response
Media For Which Designed: Water-oil-gas single response
Specification Data: 88044-an937 government standard and 81343-as4875 professional/industrial association standard
Thread Series Designator: Unjf (fine thread with external controlled root radius) all ends
