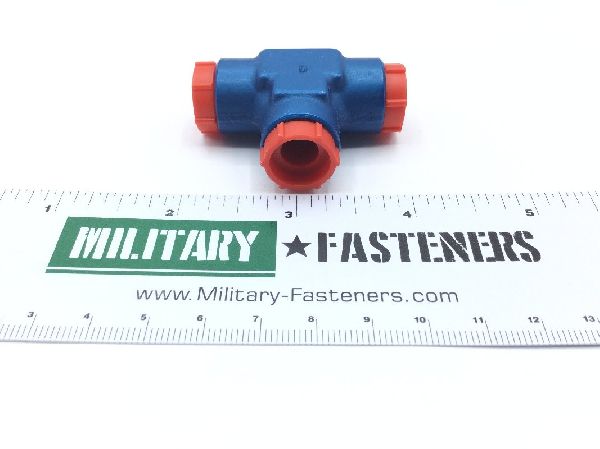

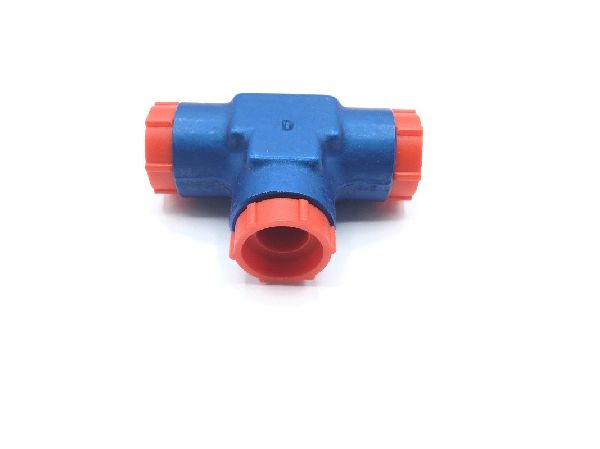

AN938D4 Boss Tee

Product Series: AN
ECCN: EAR99
Schedule: 7326.90.8695

Price per Unit $27.72

Units per Pack 1

Price per Pack $27.72

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 1

Total Unit Quantity:

Total Packs 1

Total Price $27.72

Add item to quote

Material

Aluminum alloy 2014

Surface Treatment

Cl 2 military specification single treatment response type 2 mil-a-8625

Thread Class

3b all ends

Thread Size

0.438 inches all ends

Connection Style: Gasket seal (boss) all ends
Connection Type: Threaded internal boss all ends
Leg Length: 0.750 inches all ends
Material Specification: T6 federal specification single material response qq-a-367
Maximum Operating Pressure: 3000.0 pounds per square inch single response
Media For Which Designed: Fluid single response
Special Features: End item: grumman a-10 aircraft
Specification Data: 88044-an938 government standard and 81349-mil-f-5509 government specification
Thread Series Designator: Unjf (fine thread with external controlled root radius) all ends
