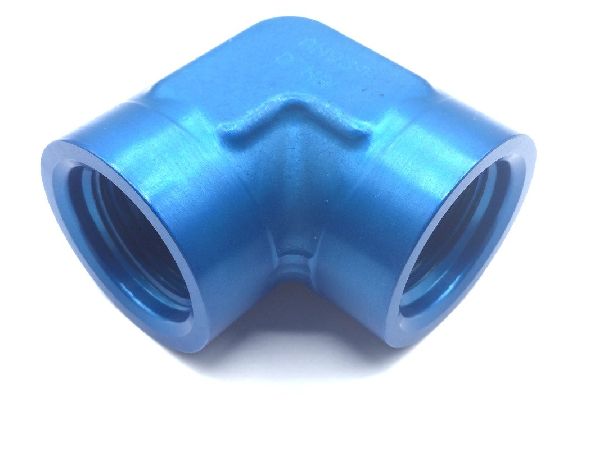

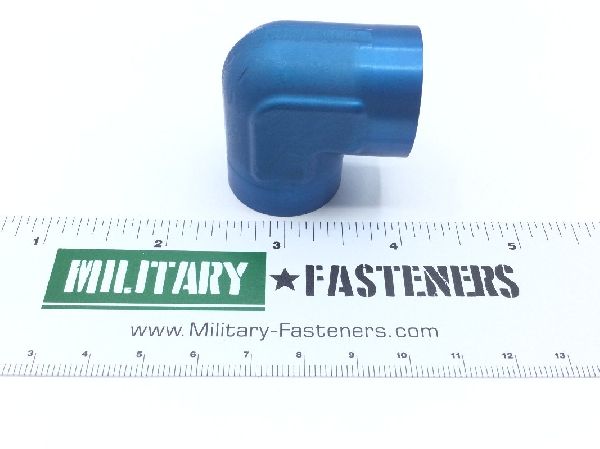

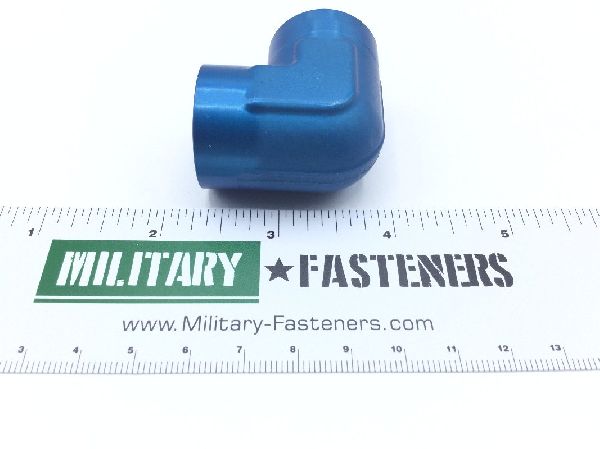

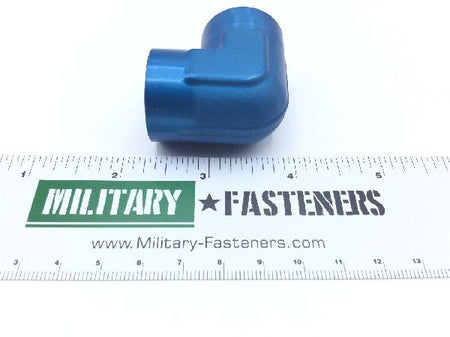

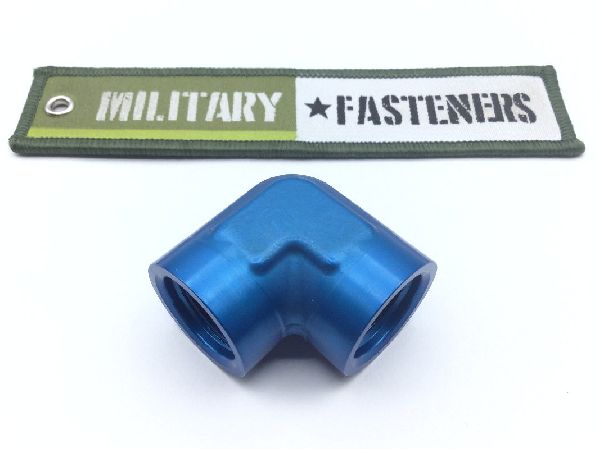

AN939D8 Boss Elbow

Product Series: AN
ECCN: EAR99
Schedule: 7326.90.8695

Price per Unit $99.72

Units per Pack 1

Price per Pack $99.72

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 1

Total Unit Quantity:

Total Packs 1

Total Price $99.72

Add item to quote

Material

Aluminum alloy 2014 or aluminum alloy 2024

Surface Treatment

Cl 2 military specification single treatment response type 2 mil-a-8625

Thread Class

3b all ends

Thread Size

0.750 inches all ends

Connection Style: Gasket seal (boss) all ends
Connection Type: Threaded internal boss all ends
End Application: Ch-54b hawk missile mim-23 and sikorsky cargo transport helicoper ch-54a
Flow Angle: 90.0 degrees
Leg Length: 1.000 inches 2nd end
Material Specification: T6 federal specification 2nd material response t6 federal specification 1st material response or qq-a-225/6 qq-a-225/4
Maximum Operating Temp: -65.0 degrees fahrenheit 2nd response
Media For Which Designed: gaseous 2nd response oxygen
Thread Series Designator: Unjf (fine thread with external controlled root radius) all ends
