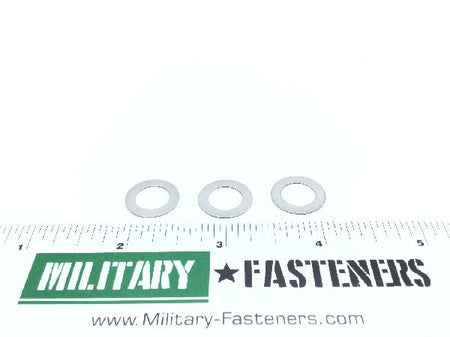

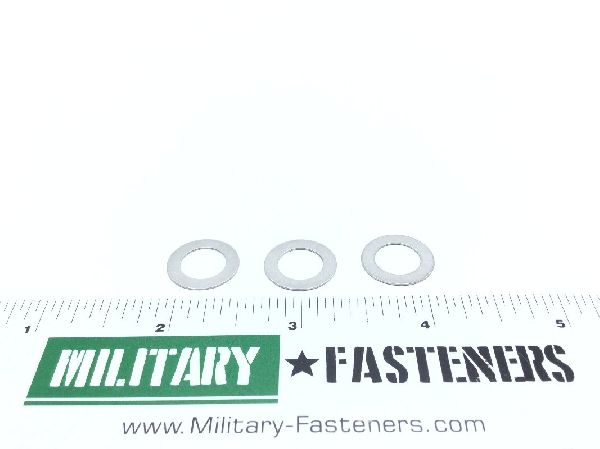

AN960C616LL Flat Washer

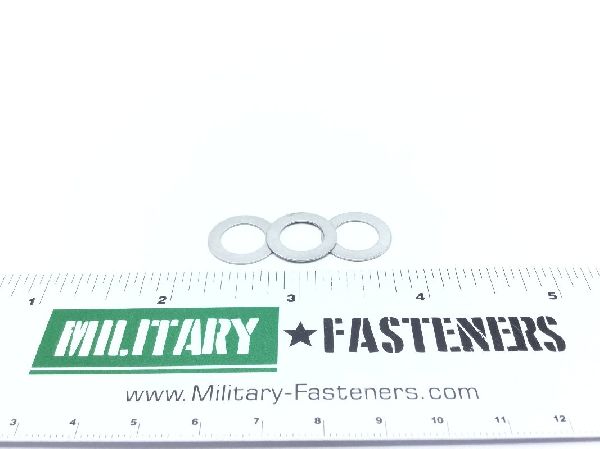

AN960C616LL Flat Washer (2)

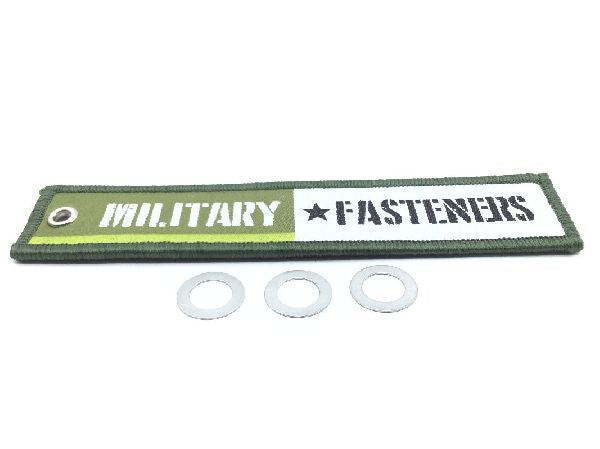

AN960C616LL Flat Washer (3)

AN960C616LL Flat Washer (4)

AN960C616LL Flat Washer (5)

AN960C616LL Flat Washer (6)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

AN960C616LL Flat Washer

Product Series: AN
ECCN: EAR99
Schedule: 7318.22.0000

Price per Unit $0.22

Units per Pack 100

Price per Pack $22.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 100

Total Unit Quantity:

Total Packs 1

Total Price $22.00

Add item to quote

Material

Steel comp 301 or steel comp 302 or steel comp 316

Surface Treatment

Qq-p-35 federal specification single treatment response

Center Hole Shape: Round
Cross Sectional Shape: Rectangular
Edge Shape: Round
Material Specification: Cl b federal specification all material responses gr 2 ty a ff-w-92
Nondefinitive Specification/std Data: A type and 2 grade and b class
Overall Diameter: Between 0.620 inches and 0.645 inches
Thickness: 0.016 inches
Hole Diameter: Between 0.380 inches and 0.400 inches
