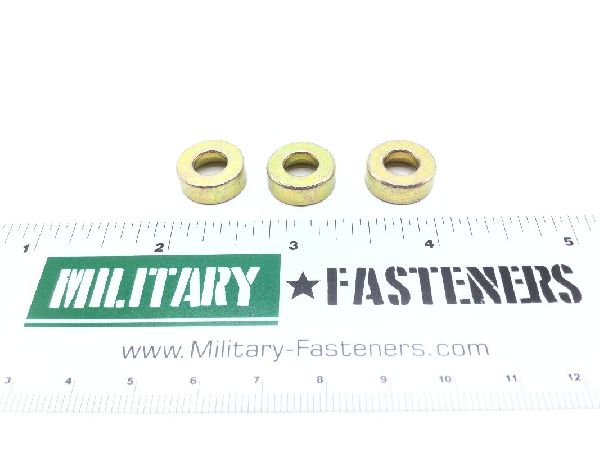

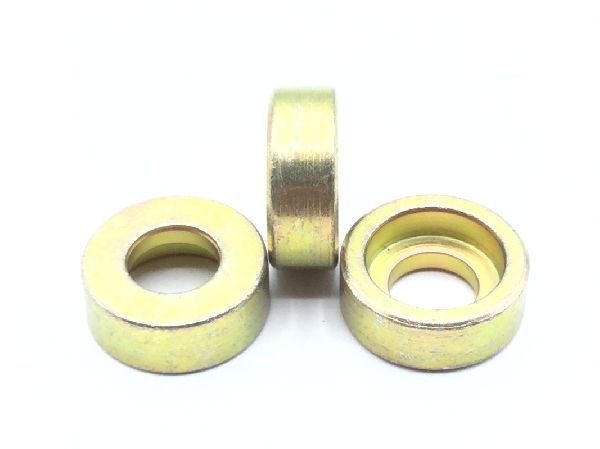

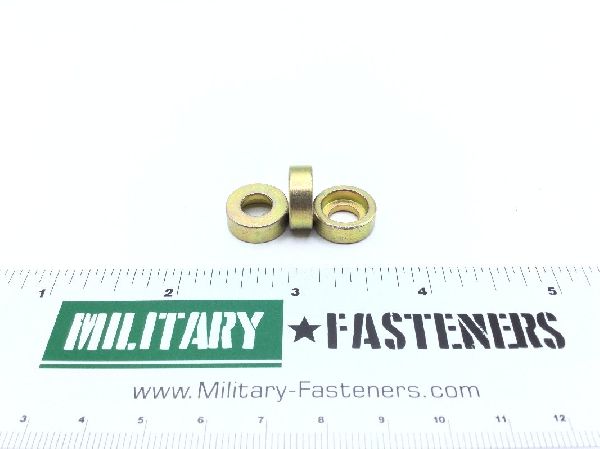

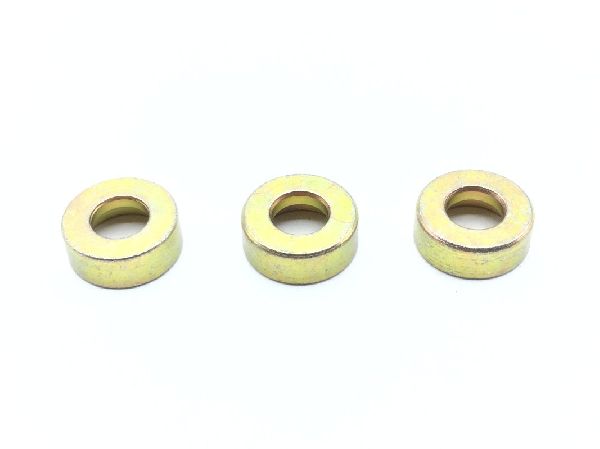

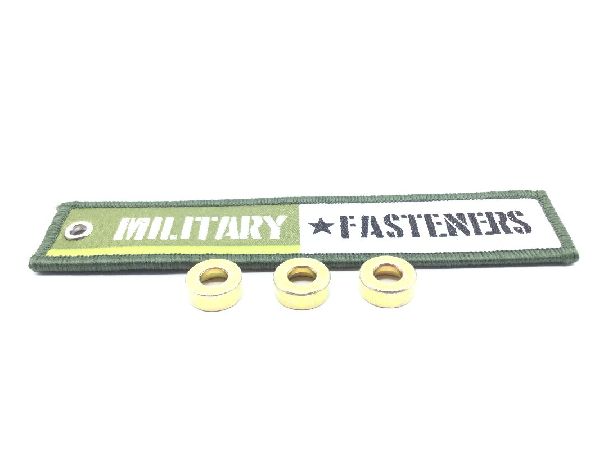

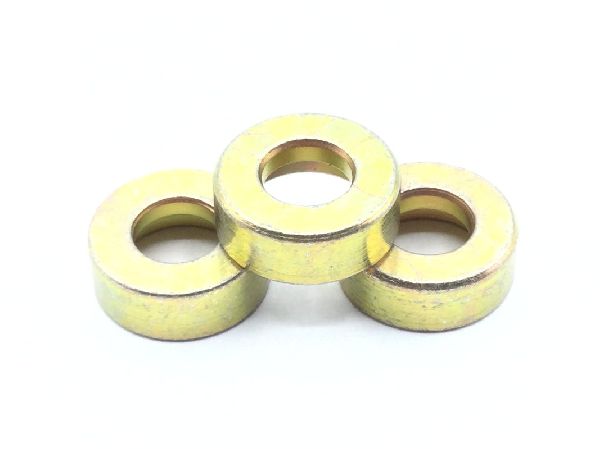

AN975-4 Recessed Washer
AN975-4 Recessed Washer (2)
AN975-4 Recessed Washer (3)
AN975-4 Recessed Washer (4)
AN975-4 Recessed Washer (5)
AN975-4 Recessed Washer (6)
AN975-4 Recessed Washer
AN975-4 Recessed Washer (2)
AN975-4 Recessed Washer (3)
AN975-4 Recessed Washer (4)
AN975-4 Recessed Washer (5)
AN975-4 Recessed Washer (6)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

AN975-4 Recessed Washer

Product Series
AN
ECCN
EAR99
Schedule
8112.29.0000
Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote
Material
Steel comp 1008 or steel comp 1009 or steel comp 1015 or steel comp 1018 or steel comp 1020 or steel comp 1025
Surface Treatment
Cl 3 federal specification single treatment response type 2 qq-p-416
Material Thickness
Between 0.062 inches and 0.094 inches
Outside Diameter
Between 0.546 inches and 0.578 inches
Overall Height
Between 0.187 inches and 0.219 inches
Recess Depth
Between 0.109 inches and 0.141 inches
Style Designator
Recessed
Hole Diameter
Between 0.250 inches and 0.282 inches
