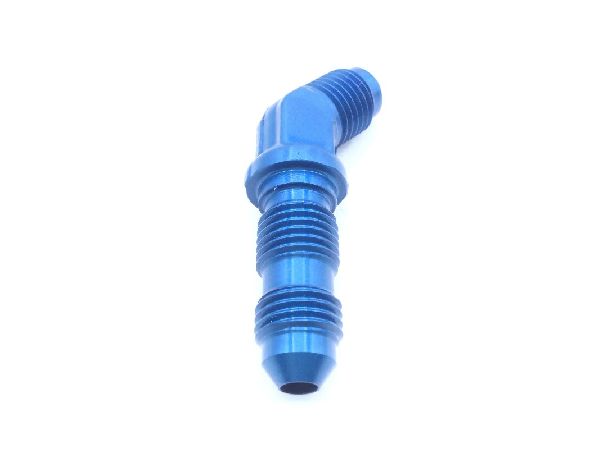

AS1040D0404 Tube Elbow

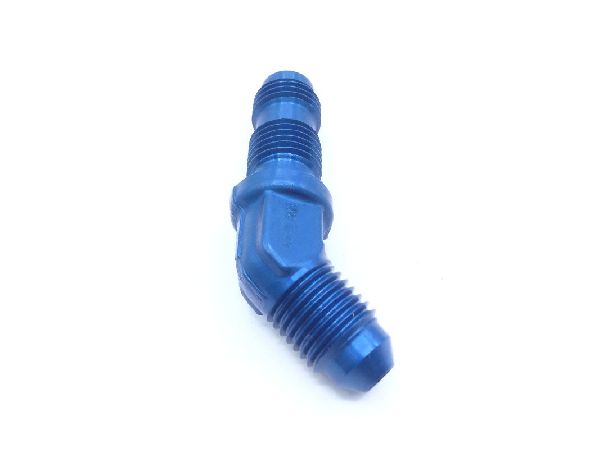

AS1040D0404 Tube Elbow (2)

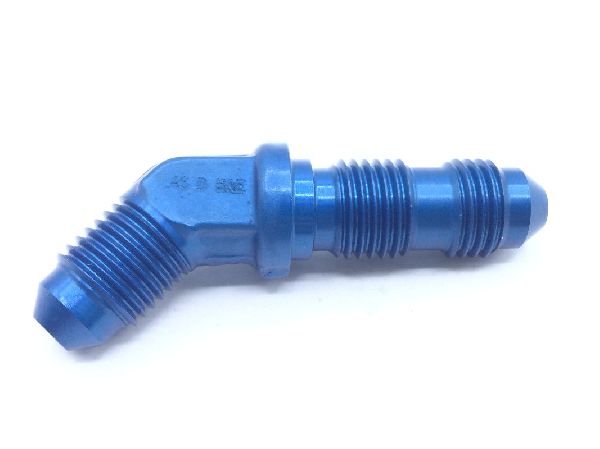

AS1040D0404 Tube Elbow (3)

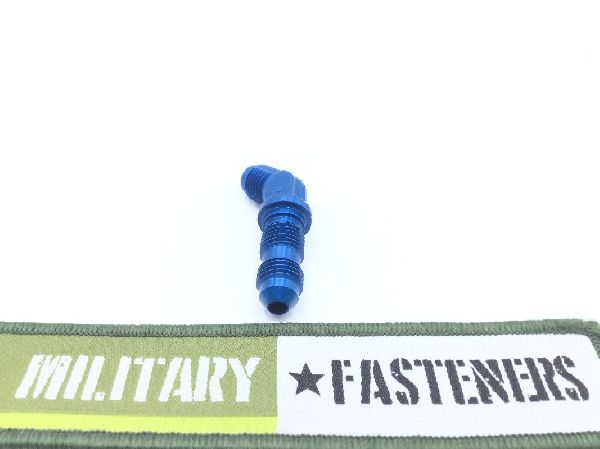

AS1040D0404 Tube Elbow (4)

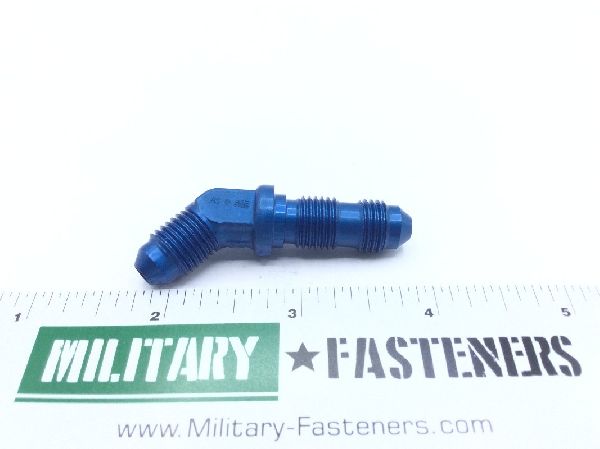

AS1040D0404 Tube Elbow (5)

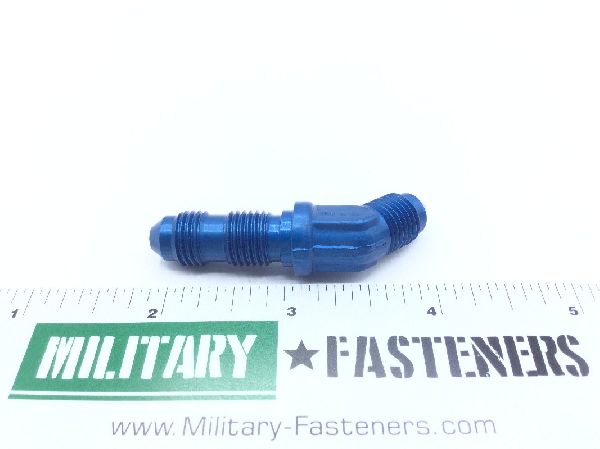

AS1040D0404 Tube Elbow (6)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

AS1040D0404 Tube Elbow

ECCN: EAR99
Schedule: 7326.90.8695

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Material

Aluminum alloy

Surface Treatment

type 2 military specification single treatment response inside mil-a-8625

Thread Class

3a 1st end bulkhead

Thread Size

0.438 inches all ends

Connection Style: Flared (tube) all ends
Connection Type: Threaded external tube all ends
End Application: Aircraft application
Flow Angle: 45 degrees
Leg Length: 1.531 inches 1st end
Outside Diameter Tube Accommodated: 0.250 inches all ends
Seat Angle: 37 degrees all ends
Specification Data: 81343-as1040d0404 professional/industrial association standard
Thread Series Designator: Unjf (fine thread with external controlled root radius) all ends
