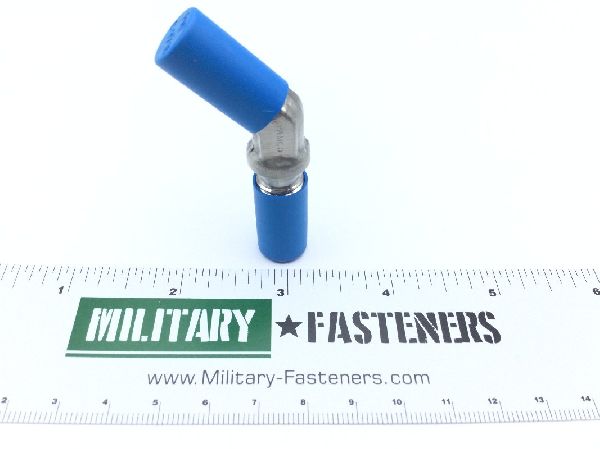

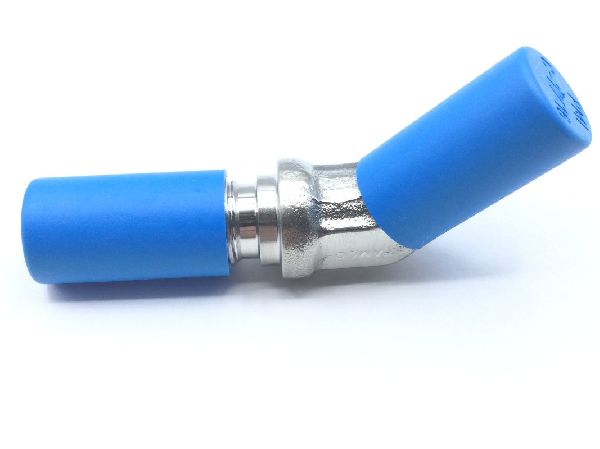

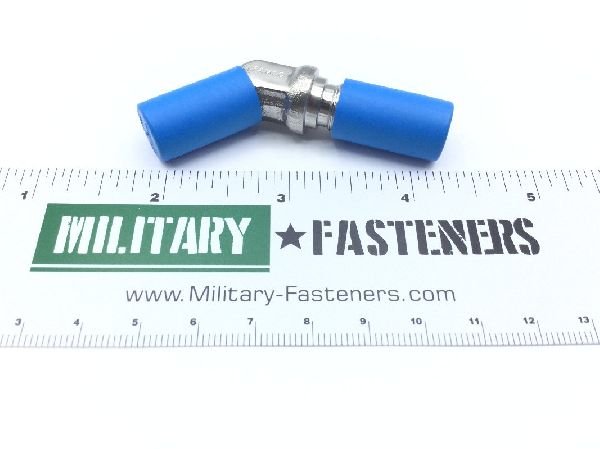

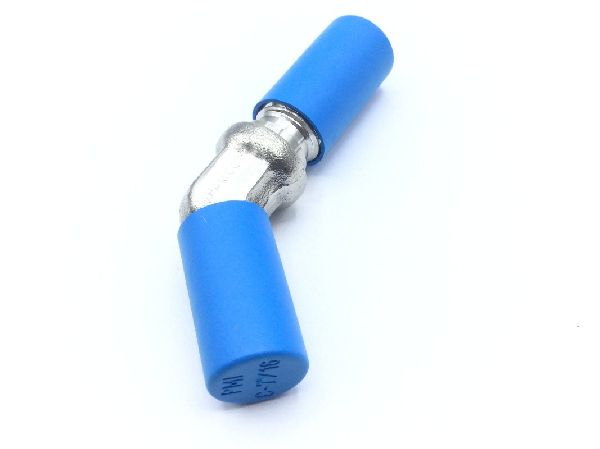

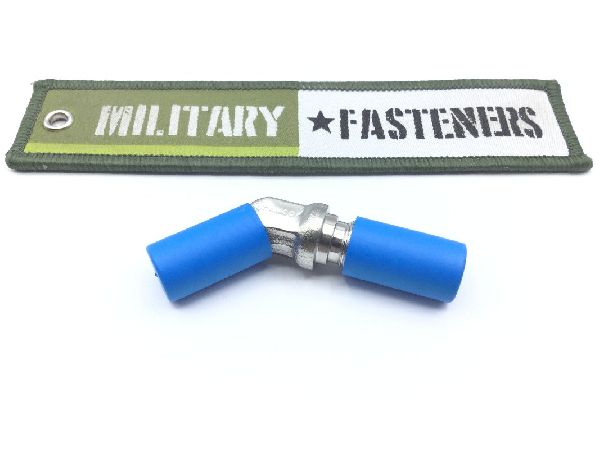

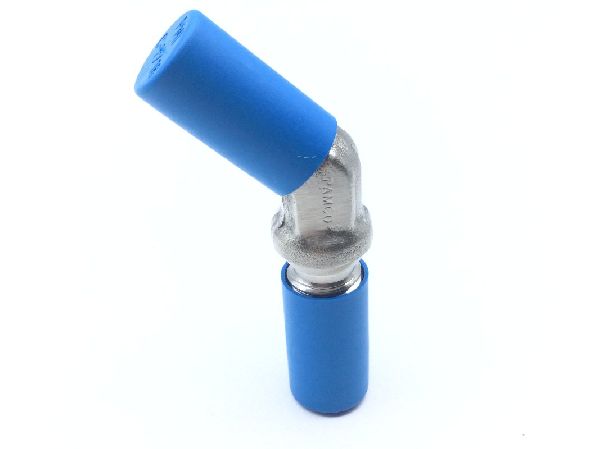

AS1040J0404 Tube Elbow
- ECCN
- EAR99
- Schedule
- 7307.22.5000
Unit of Measure:
EA
Add to Quote
We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.
Add to QuoteCouldn't load pickup availability
- Connection Style
- Flared (tube) all ends
- Connection Type
- Threaded external tube all ends
- Flow Angle
- 45.0 degrees
- Leg Length
- 0.703 inches 2nd end
- Material Specification
- 66 federal standard single material response
- Outside Diameter Tube Accommodated
- 0.250 inches 2nd end
- Seat Angle
- 37.0 degrees all ends
- Specification Data
- 81343-as1040 manufacturers standard
- Thread Series Designator
- Unjf (fine thread with external controlled root radius) all ends
