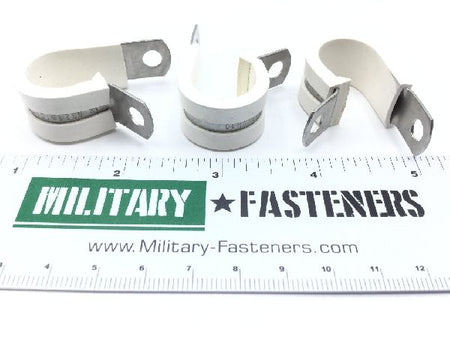

AS21919WCH10 Loop Clamp

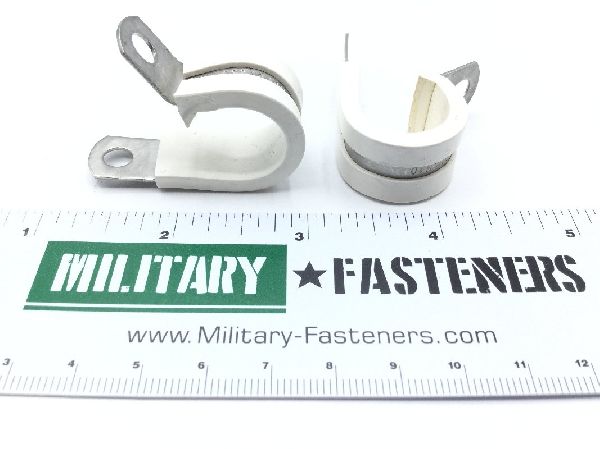

AS21919WCH10 Loop Clamp (2)

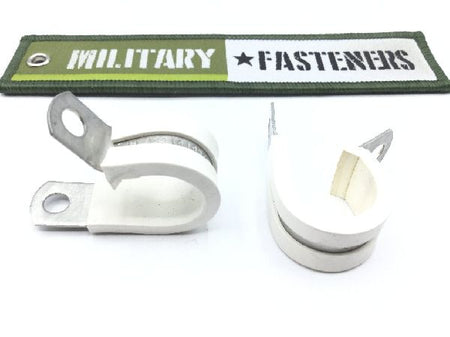

AS21919WCH10 Loop Clamp (3)
AS21919WCH10 Loop Clamp (4)
AS21919WCH10 Loop Clamp (5)
AS21919WCH10 Loop Clamp (6)

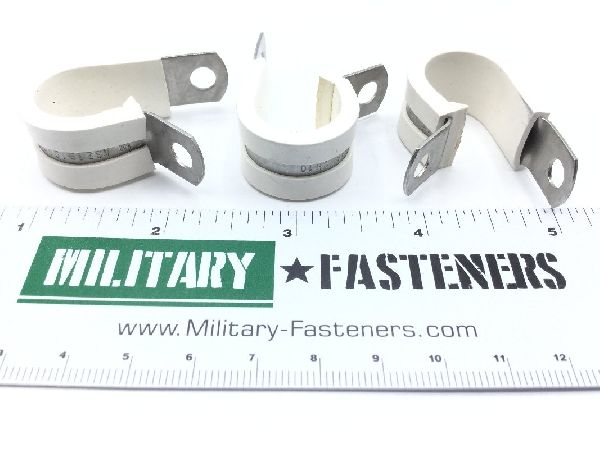

AS21919WCH10 Loop Clamp
AS21919WCH10 Loop Clamp (2)

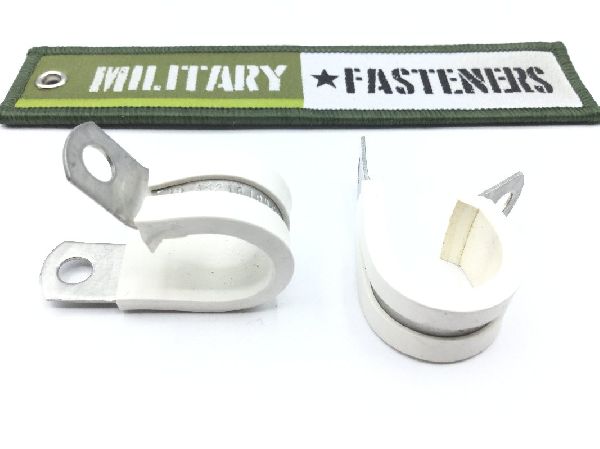

AS21919WCH10 Loop Clamp (3)

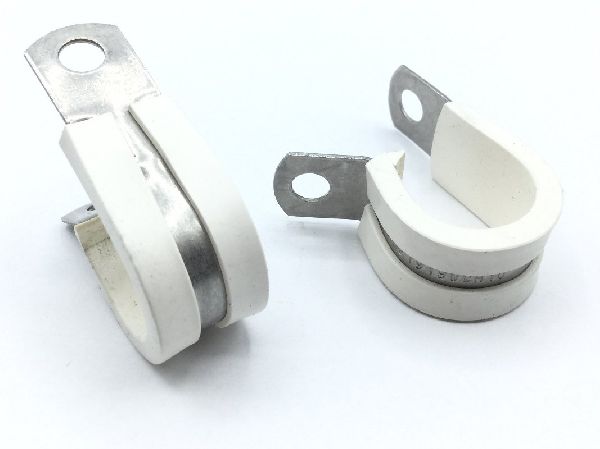

AS21919WCH10 Loop Clamp (4)

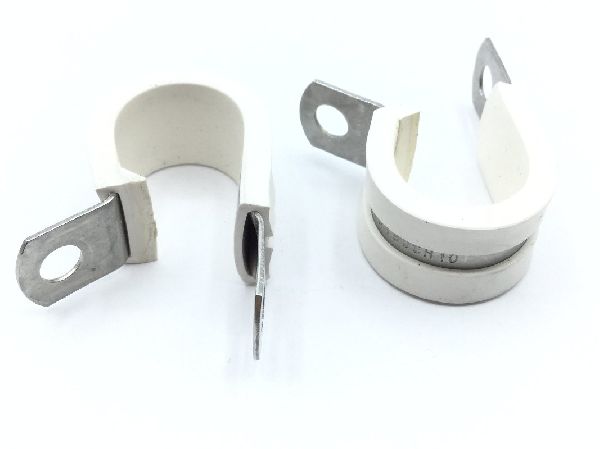

AS21919WCH10 Loop Clamp (5)

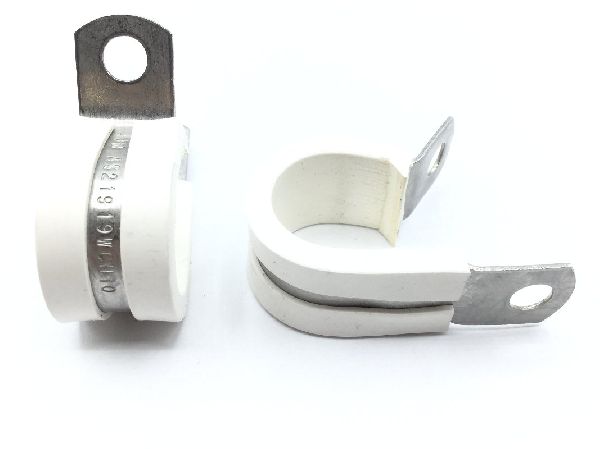

AS21919WCH10 Loop Clamp (6)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

AS21919WCH10 Loop Clamp

ECCN
EAR99
Schedule
8539.29.2500
Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote
Material
Rubber synthetic cushion
Surface Treatment
Ams-qq-p-35 assn standard single treatment response
Center To Center Distance Between Loop And Mounting Hole
0.780 inches
Distance From Loop Center To Tongue End
0.999 inches
End Application
Nose assy
Loop Inside Diameter
0.625 inches
Material Specification
Ams 5510 assn standard single material response band
Material Thickness
0.032 inches
Overall Width
0.500 inches
Special Features
Stiffening bead to extend to clamp centerline. has wedge configuration
Style Designator
Single loop
Tongue Hole Type
unthreaded round
Diameter
Between 0.218 inches and 0.228 inches
