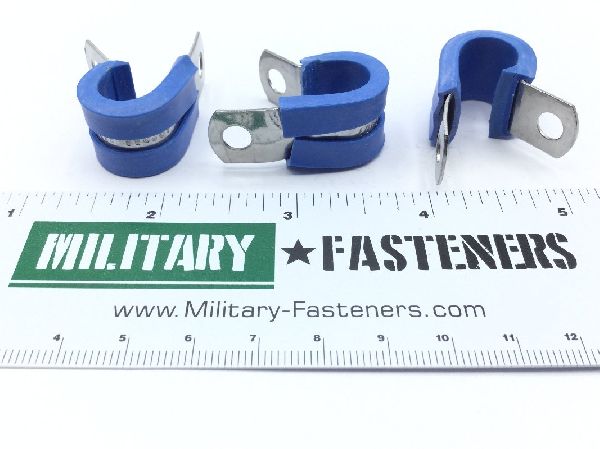

AS21919WCJ07 Loop Clamp

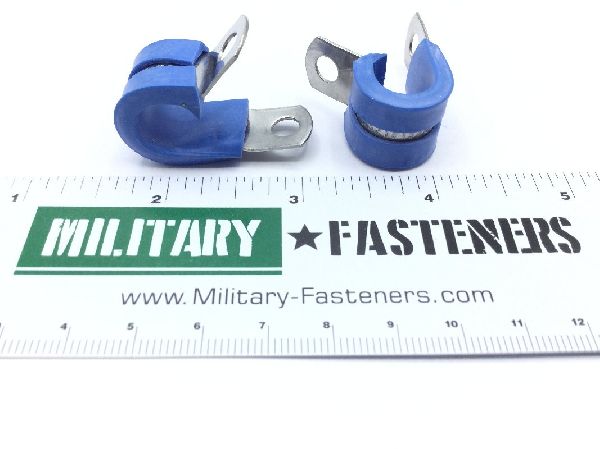

AS21919WCJ07 Loop Clamp (2)

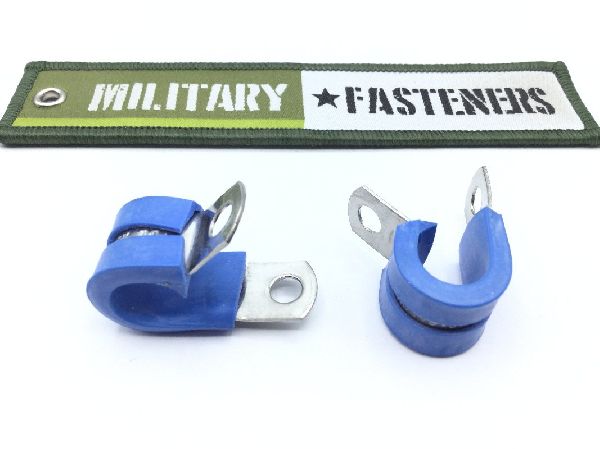

AS21919WCJ07 Loop Clamp (3)

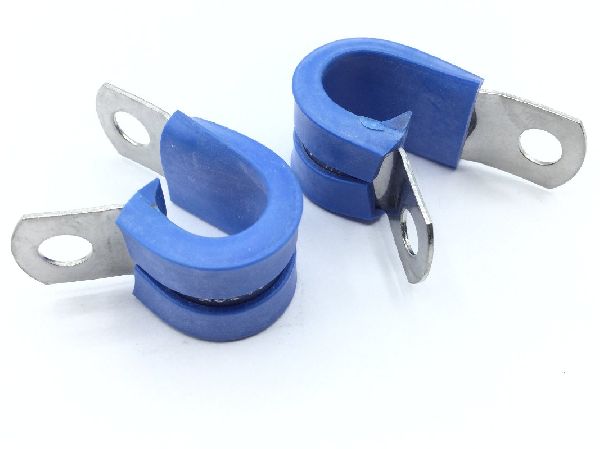

AS21919WCJ07 Loop Clamp (4)

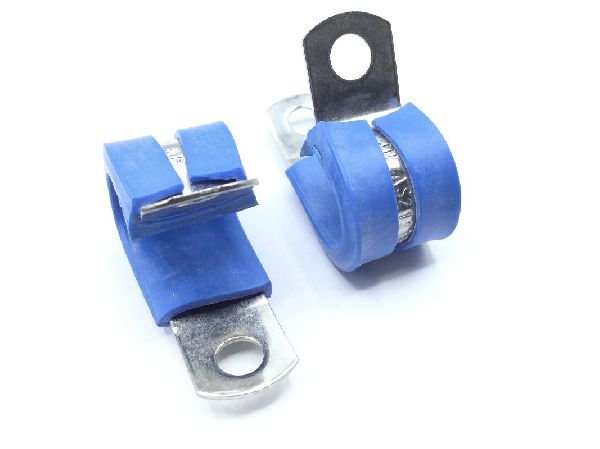

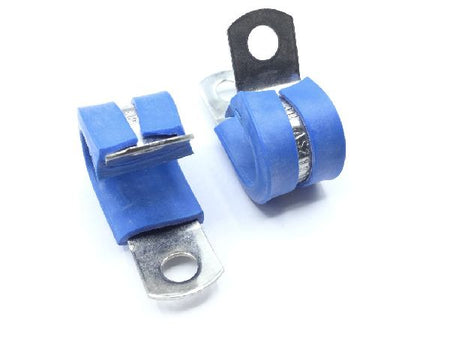

AS21919WCJ07 Loop Clamp (5)

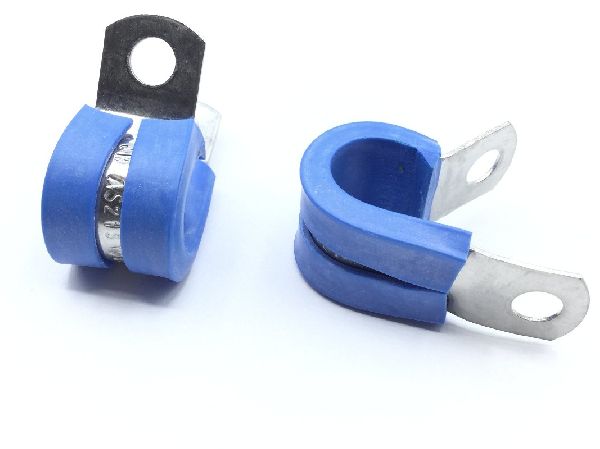

AS21919WCJ07 Loop Clamp (6)
AS21919WCJ07 Loop Clamp
AS21919WCJ07 Loop Clamp (2)
AS21919WCJ07 Loop Clamp (3)
AS21919WCJ07 Loop Clamp (4)
AS21919WCJ07 Loop Clamp (5)
AS21919WCJ07 Loop Clamp (6)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

AS21919WCJ07 Loop Clamp

ECCN
EAR99
Schedule
7616.10.9090
Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote
Material
Rubber fluorosilicone class fq cushion
Center To Center Distance Between Loop And Mounting Hole
0.623 inches
Distance From Loop Center To Tongue End
0.811 inches
End Application
Rq-4a
Loop Inside Diameter
Between 0.423 inches and 0.453 inches
Material Thickness
0.032 inches
Overall Width
Between 0.365 inches and 0.385 inches
Special Features
Maxium recommended temperature is 450 degrees fahrenheit
Style Designator
Single loop
Tongue Hole Type
unthreaded round
Diameter
Between 0.109 inches and 0.209 inches
