Home » AS21919WCJ08 Loop Clamp

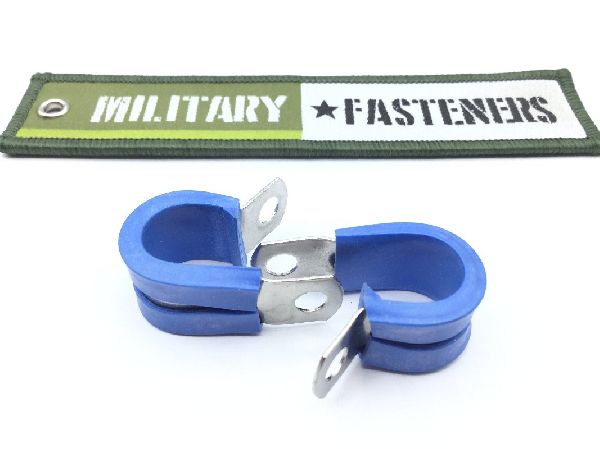

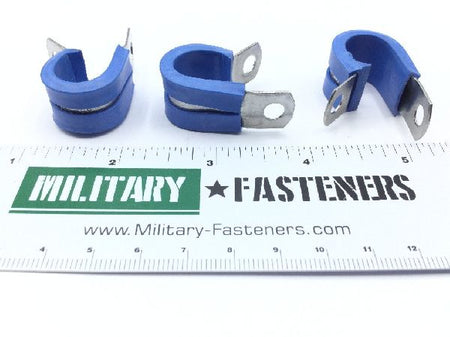

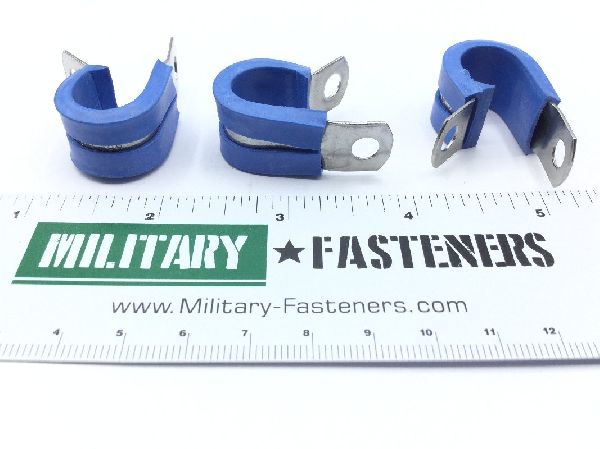

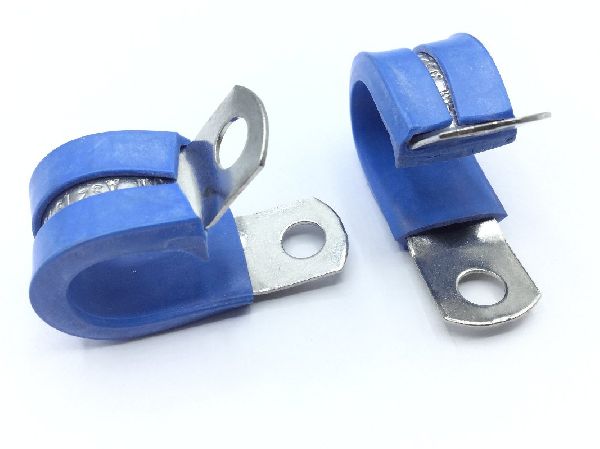

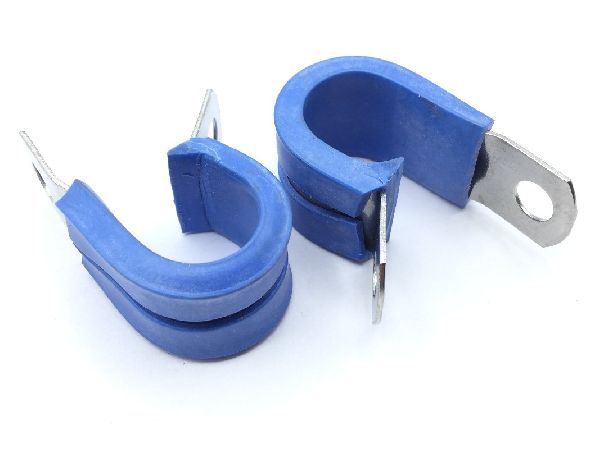

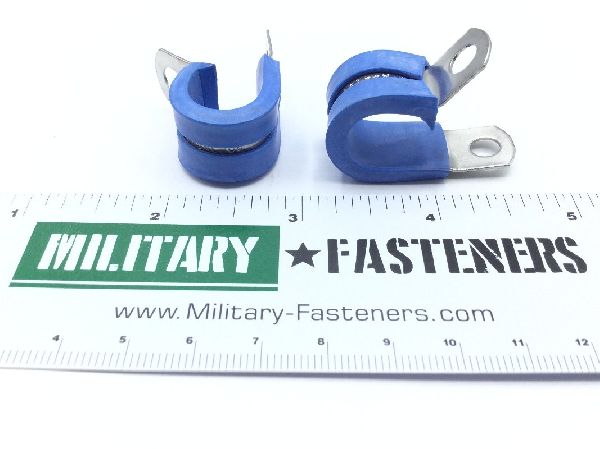

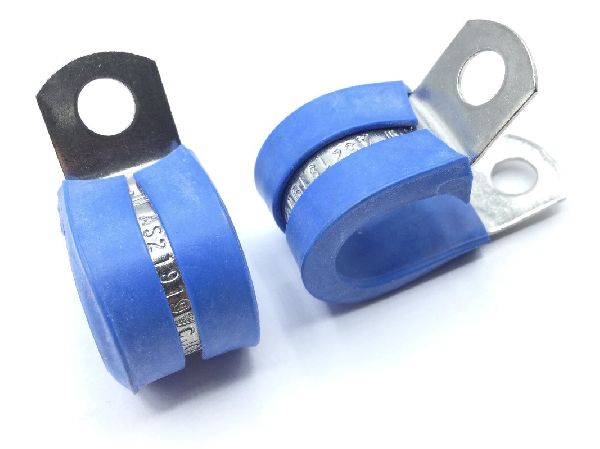

AS21919WCJ08 Loop Clamp
AS21919WCJ08 Loop Clamp (2)
AS21919WCJ08 Loop Clamp (3)
AS21919WCJ08 Loop Clamp (4)
AS21919WCJ08 Loop Clamp (5)
AS21919WCJ08 Loop Clamp (6)
AS21919WCJ08 Loop Clamp
AS21919WCJ08 Loop Clamp (2)
AS21919WCJ08 Loop Clamp (3)
AS21919WCJ08 Loop Clamp (4)
AS21919WCJ08 Loop Clamp (5)
AS21919WCJ08 Loop Clamp (6)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

AS21919WCJ08 Loop Clamp

ECCN
EAR99
Schedule
7616.10.9090
Manufacturer certifications are shipped with your order FREE of charge
Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote
Material
Rubber fluorosilicone class fq cushion
Surface Treatment
Qq-p-35 federal specification single treatment response band
Center To Center Distance Between Loop And Mounting Hole
Between 0.639 inches and 0.669 inches
Cushioning Environmental Protection
Oil resistant and fuel resistant
Distance From Loop Center To Tongue End
Between 0.842 inches and 0.902 inches
Loop Inside Diameter
Between 0.485 inches and 0.515 inches
Material Specification
Mil-s-6721 military specification single material response band
Material Thickness
0.032 inches
Overall Width
Between 0.365 inches and 0.385 inches
Special Features
Cushion solid blue
Style Designator
Offset mount
Tongue Hole Type
unthreaded round
Diameter
Between 0.199 inches and 0.209 inches
