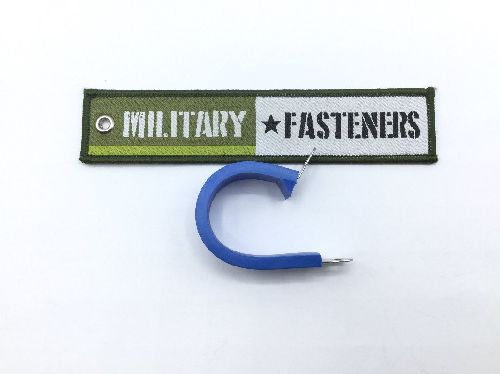

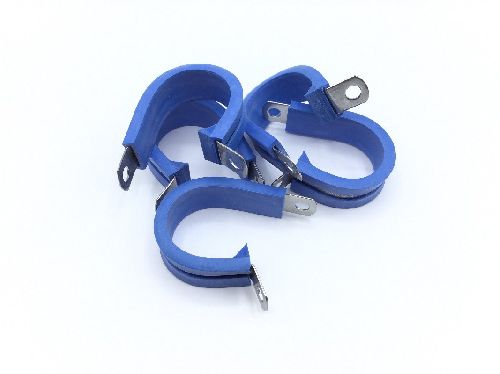

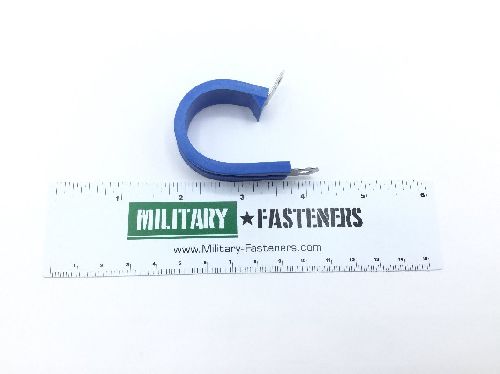

AS21919WCJ16 Loop Clamp

ECCN: EAR99
Schedule: 7616.10.9090

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Material

Rubber fluorosilicone class fq cushion

Surface Treatment

Qq-p-35 federal specification single treatment response band

Center To Center Distance Between Loop And Mounting Hole: Between 0.936 inches and 0.966 inches
Cushioning Environmental Protection: Oil resistant and fuel resistant
Distance From Loop Center To Tongue End: 1.169 inches
End Application: Mrap rg-33
Loop Inside Diameter: Between 0.985 inches and 1.015 inches
Material Specification: Mil-s-6721 military specification single material response band
Material Thickness: 0.032 inches
Overall Width: Between 0.490 inches and 0.510 inches
Style Designator: Offset mount
Tongue Hole Type: unthreaded round
Diameter: Between 0.199 inches and 0.209 inches
