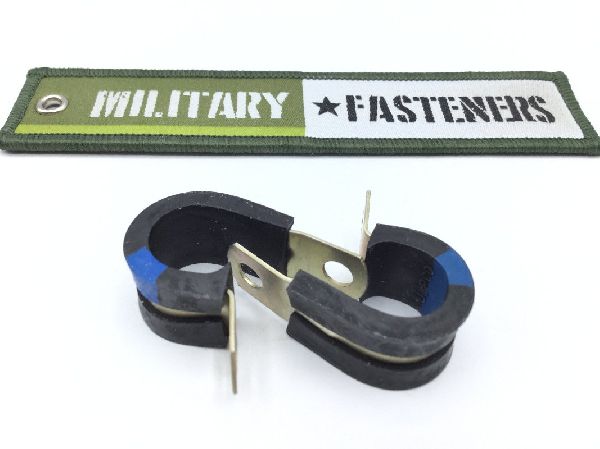

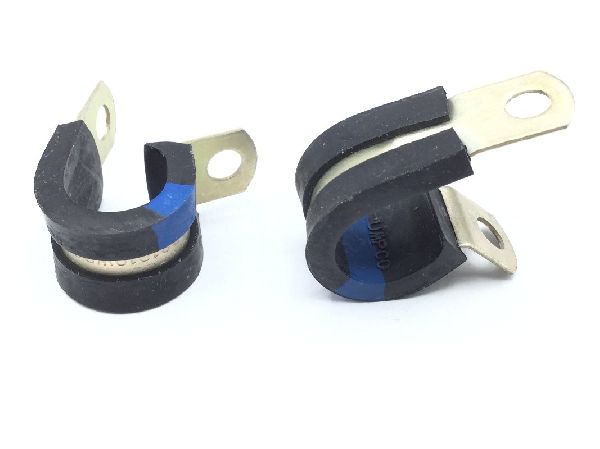

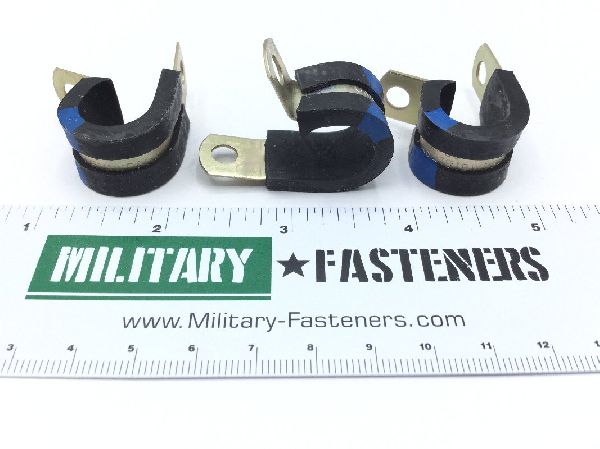

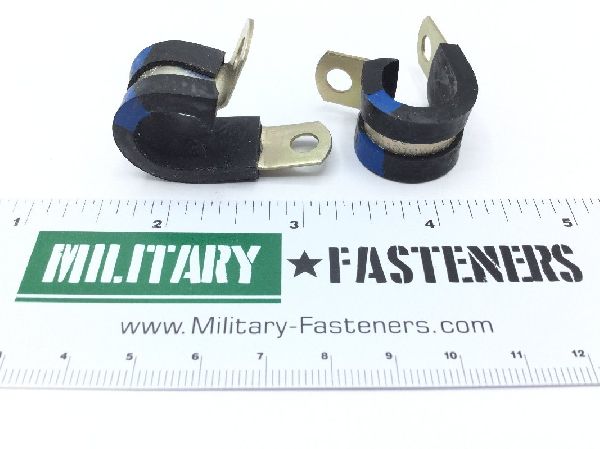

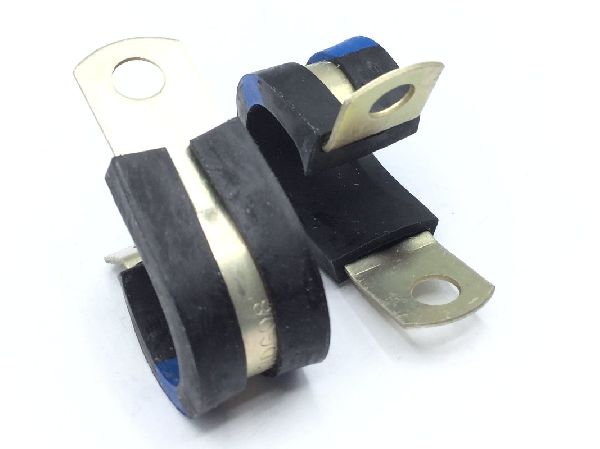

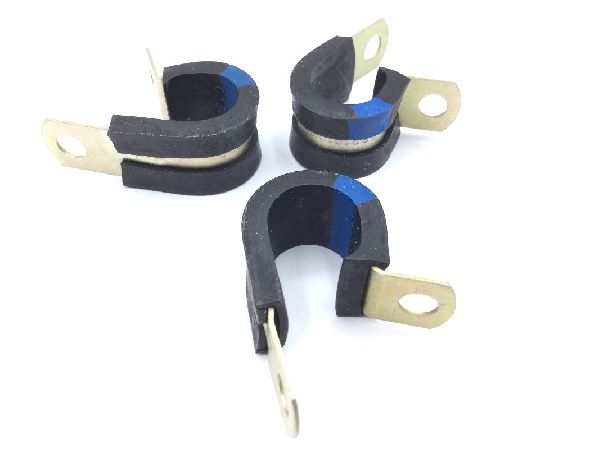

AS21919WDG08 Loop Clamp
AS21919WDG08 Loop Clamp (2)
AS21919WDG08 Loop Clamp (3)
AS21919WDG08 Loop Clamp (4)
AS21919WDG08 Loop Clamp (5)
AS21919WDG08 Loop Clamp (6)
AS21919WDG08 Loop Clamp
AS21919WDG08 Loop Clamp (2)
AS21919WDG08 Loop Clamp (3)
AS21919WDG08 Loop Clamp (4)
AS21919WDG08 Loop Clamp (5)
AS21919WDG08 Loop Clamp (6)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

AS21919WDG08 Loop Clamp

ECCN
EAR99
Schedule
8539.29.2500
Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote
Material
Rubber chloroprene class cr cushion
Surface Treatment
-1l-c-5541 military specification single treatment response band
Center To Center Distance Between Loop And Mounting Hole
0.654 inches
Criticality Code Justification
Feat
Cushioning Environmental Protection
Weather resistant
Distance From Loop Center To Tongue End
0.872 inches
Loop Inside Diameter
Between 0.485 inches and 0.515 inches
Material Specification
00-a-250/5 federal specification single material response band
Material Thickness
0.032 inches
Overall Width
0.500 inches
Special Features
Weapons system essential
Style Designator
Offset mount
Tongue Hole Type
unthreaded round
Diameter
0.204 inches
