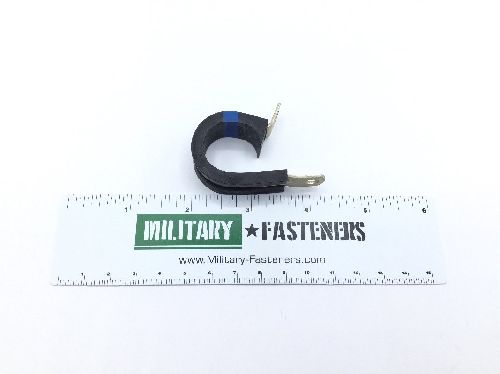

AS21919WDG13 Loop Clamp
AS21919WDG13 Loop Clamp (2)

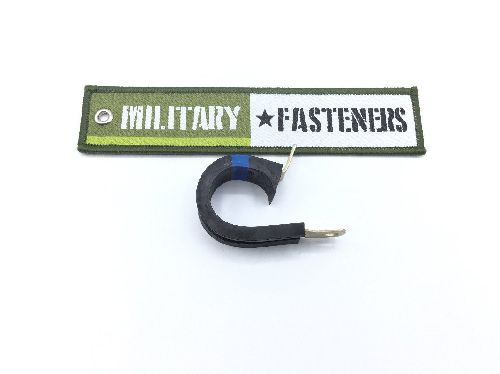

AS21919WDG13 Loop Clamp (3)

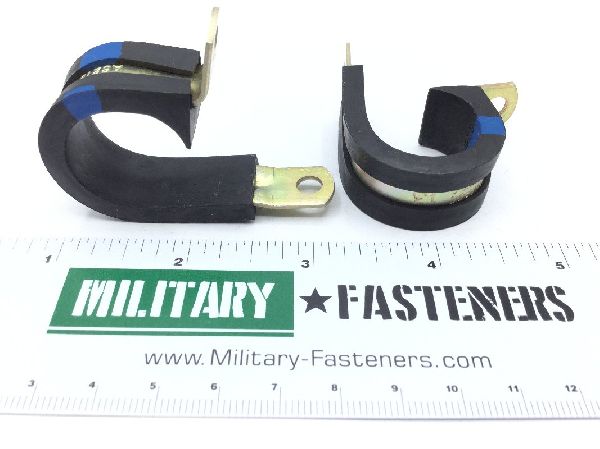

AS21919WDG13 Loop Clamp (4)

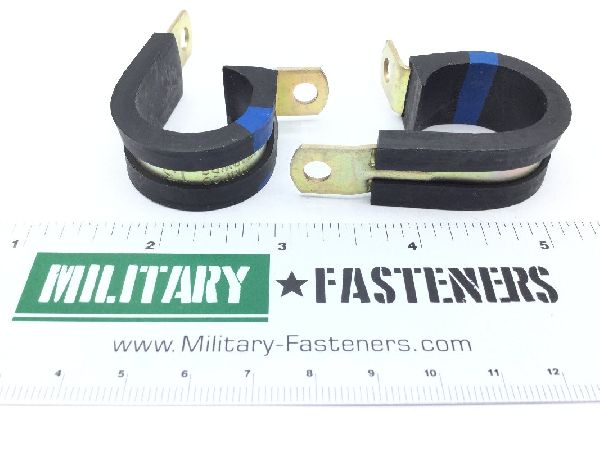

AS21919WDG13 Loop Clamp (5)

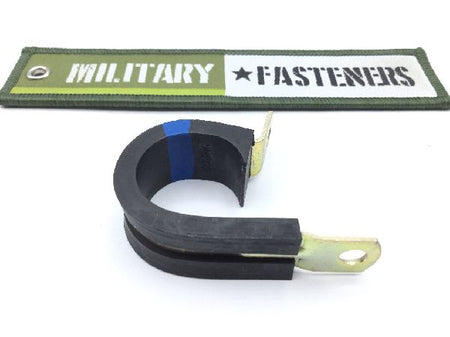

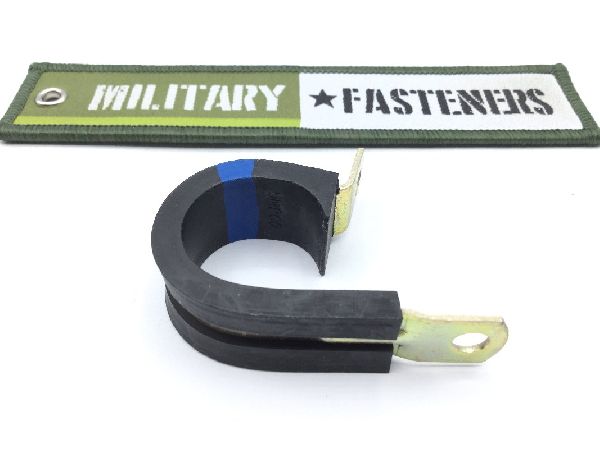

AS21919WDG13 Loop Clamp (6)

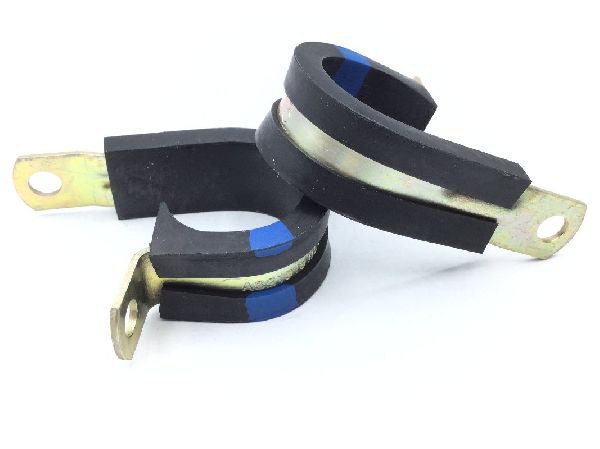

AS21919WDG13 Loop Clamp (7)

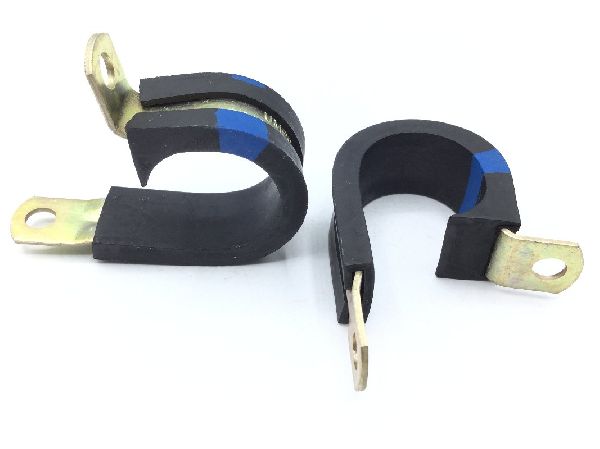

AS21919WDG13 Loop Clamp (8)

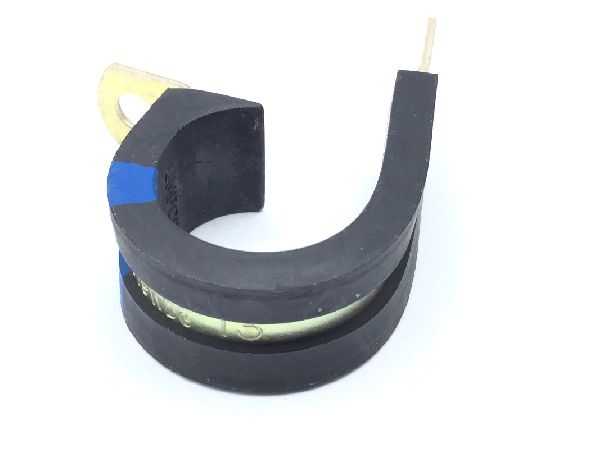

AS21919WDG13 Loop Clamp (9)
AS21919WDG13 Loop Clamp
AS21919WDG13 Loop Clamp (2)
AS21919WDG13 Loop Clamp (3)
AS21919WDG13 Loop Clamp (4)
AS21919WDG13 Loop Clamp (5)
AS21919WDG13 Loop Clamp (6)
AS21919WDG13 Loop Clamp (7)
AS21919WDG13 Loop Clamp (8)
AS21919WDG13 Loop Clamp (9)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

AS21919WDG13 Loop Clamp

ECCN
EAR99
Schedule
7616.10.9090
Manufacturer certifications are shipped with your order FREE of charge
Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote
Material
Rubber chloroprene class cr cushion
Surface Treatment
-1l-c-5541 military specification single treatment response band
Center To Center Distance Between Loop And Mounting Hole
Between 0.862 inches and 0.892 inches
Criticality Code Justification
Feat
Cushioning Environmental Protection
Weather resistant
Departure From Cited Designator
As modified by special features
Distance From Loop Center To Tongue End
1.095 inches
Loop Inside Diameter
Between 0.798 inches and 0.828 inches
Material Specification
Qq-a-250/5 federal specification single material response band
Material Thickness
0.050 inches
Nondefinitive Specification/std Data
4 type and a class
Overall Width
Between 0.490 inches and 0.510 inches
Special Features
Wedge type cushion construction; weapon system essential.
Style Designator
Offset mount
Tongue Hole Type
unthreaded round
Diameter
0.204 inches
