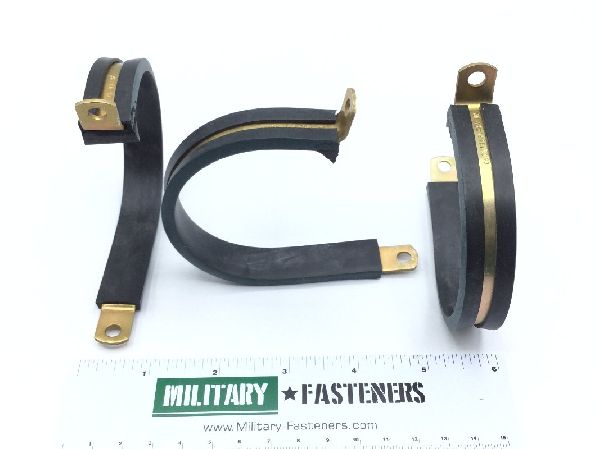

AS21919WDG32 Loop Clamp

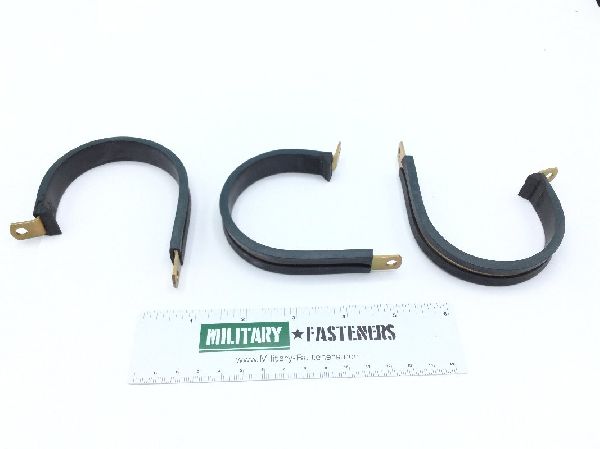

AS21919WDG32 Loop Clamp (2)

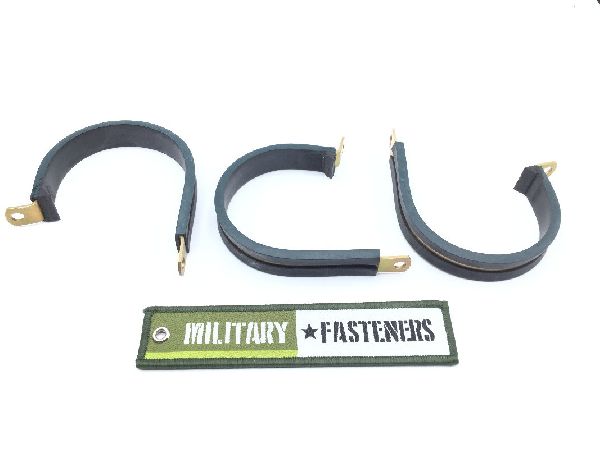

AS21919WDG32 Loop Clamp (3)

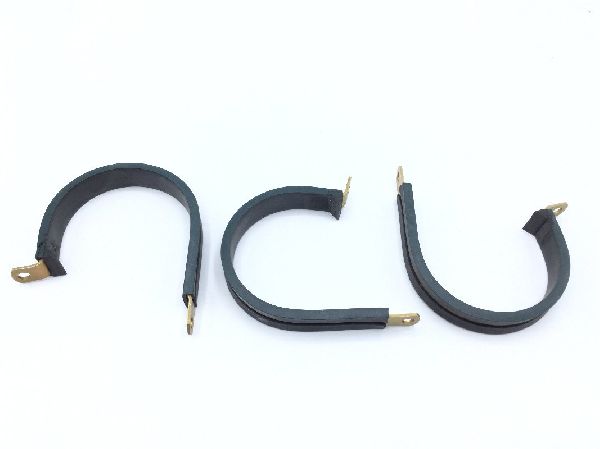

AS21919WDG32 Loop Clamp (4)

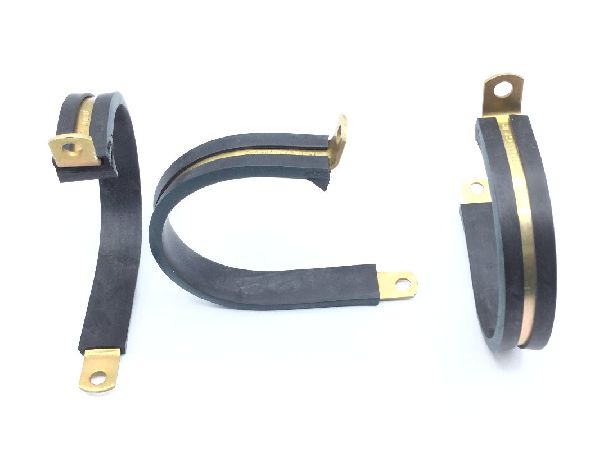

AS21919WDG32 Loop Clamp (5)

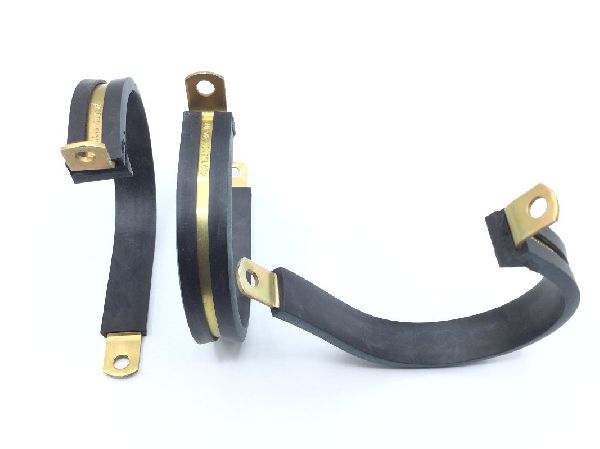

AS21919WDG32 Loop Clamp (6)
AS21919WDG32 Loop Clamp
AS21919WDG32 Loop Clamp (2)
AS21919WDG32 Loop Clamp (3)
AS21919WDG32 Loop Clamp (4)
AS21919WDG32 Loop Clamp (5)
AS21919WDG32 Loop Clamp (6)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

AS21919WDG32 Loop Clamp

ECCN
9A991
Schedule
7616.10.9090
Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote
Material
Rubber chloroprene class cr cushion
Surface Treatment
Mil-c-5541 military specification single treatment response band
Center To Center Distance Between Loop And Mounting Hole
Between 1.484 inches and 1.515 inches
Cushioning Environmental Protection
Weather resistant
Distance From Loop Center To Tongue End
1.717 inches
End Application
Mrap-rg-33 armored utility vehicle (auv)
Loop Inside Diameter
Between 1.985 inches and 2.015 inches
Material Specification
Ams 3209 assn standard single material response cushion
Material Thickness
0.063 inches
Nondefinitive Specification/std Data
4 type and a class
Overall Width
Between 0.490 inches and 0.510 inches
Style Designator
Offset mount
Tongue Hole Type
unthreaded round
Diameter
0.204 inches
