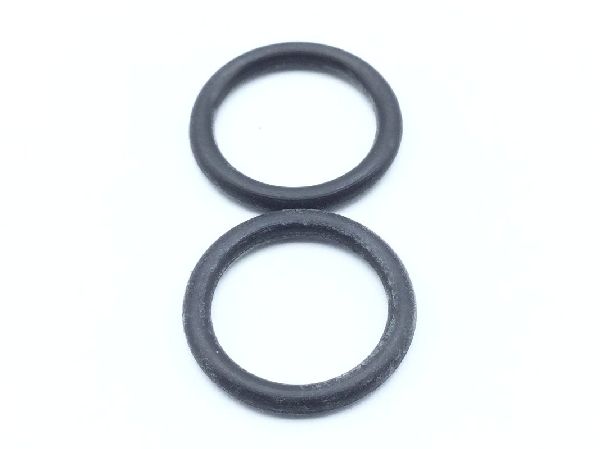

AS3209-013 O-Ring

AS3209-013 O-Ring (2)

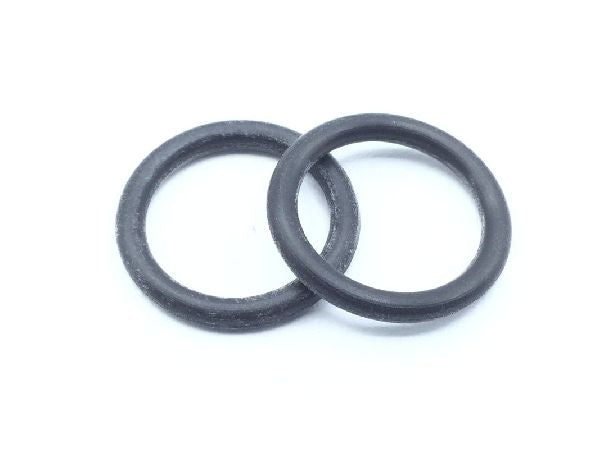

AS3209-013 O-Ring (3)

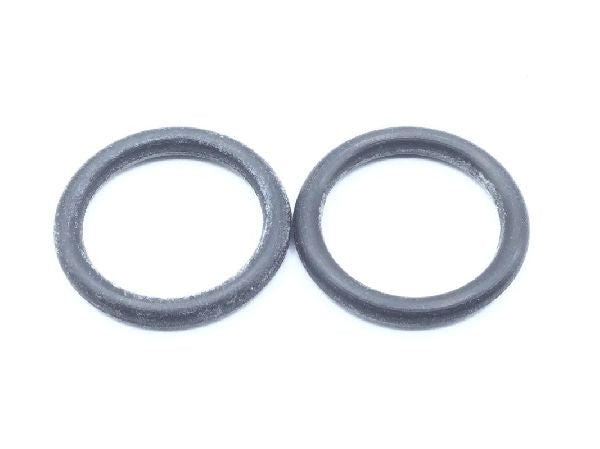

AS3209-013 O-Ring (4)

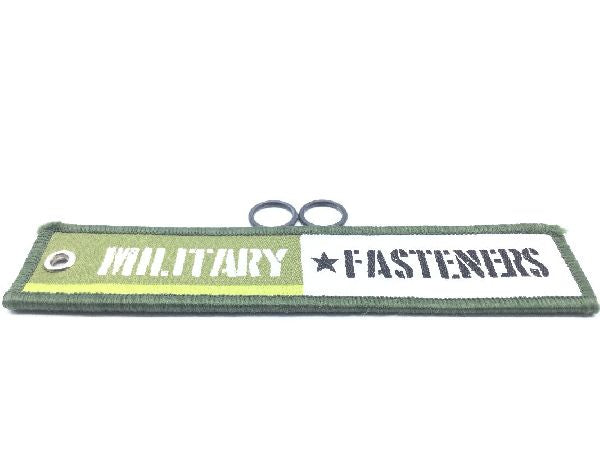

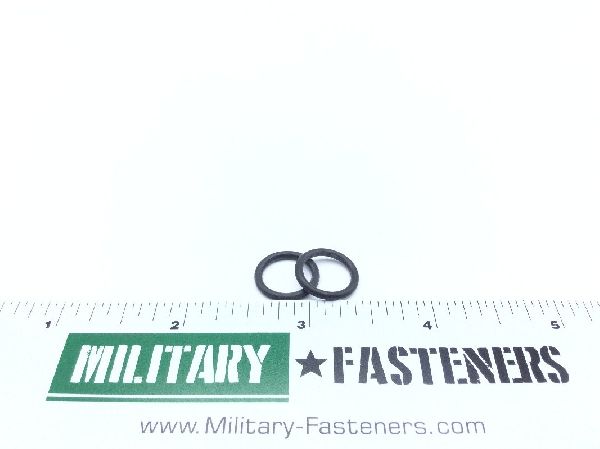

AS3209-013 O-Ring (5)

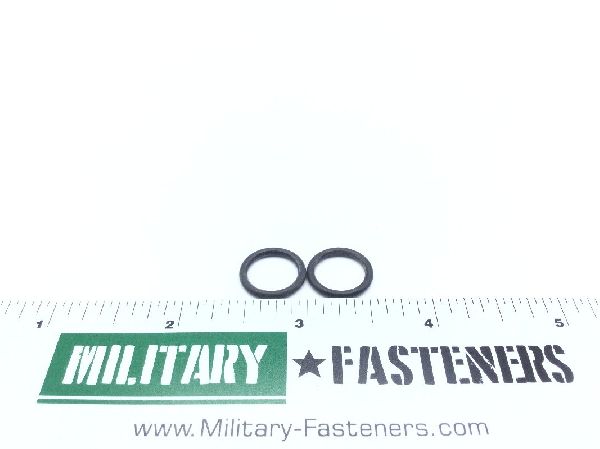

AS3209-013 O-Ring (6)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

AS3209-013 O-Ring

ECCN: EAR99
Schedule: 4016.93.0000

Price per Unit $0.83

Units per Pack 50

Price per Pack $41.50

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 50

Total Unit Quantity:

Total Packs 1

Total Price $41.50

Add item to quote

Material

Rubber fluorocarbon class fpm

Center Hole Diameter: Between 0.421 inches and 0.431 inches
Cross-sectional Height: Between 0.067 inches and 0.073 inches
Elongation Percentage: 125
Hardness Rating: 75.0 shore durometer a
Material Specification: Ams 7276 assn standard single material response
Outside Diameter: Between 0.555 inches and 0.577 inches
Part Name Assigned By Controlling Agency: Preformed packing
