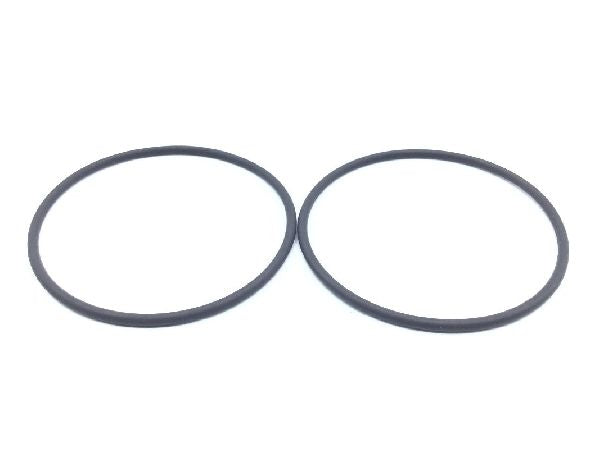

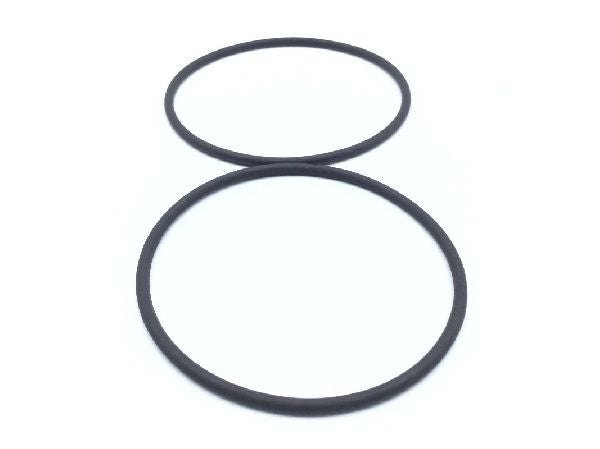

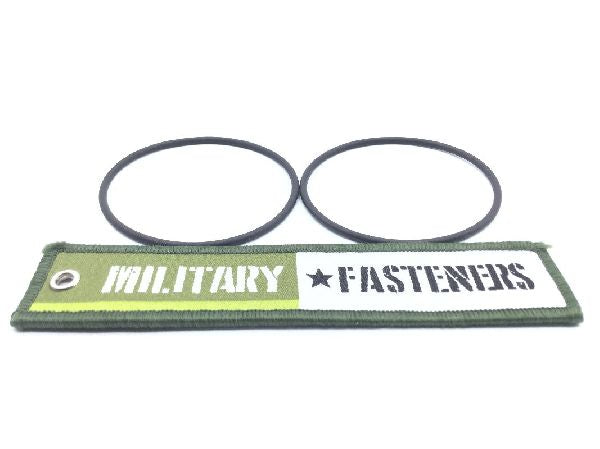

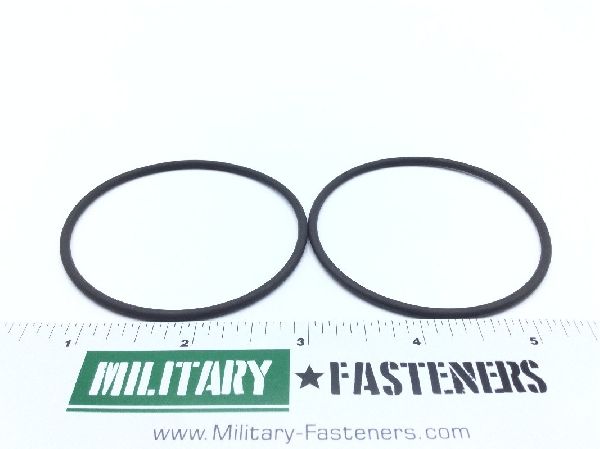

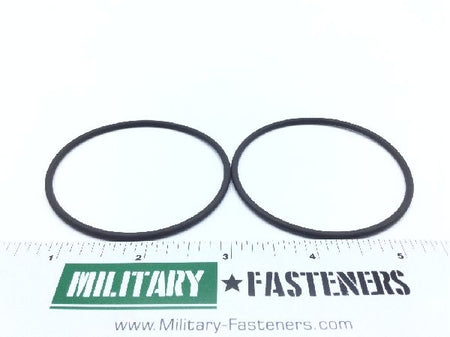

AS3209-143 O-Ring

ECCN: EAR99
Schedule: 4016.93.0000

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Material

Rubber fluorocarbon class fpm

Center Hole Diameter: Between 2.405 inches and 2.445 inches
Cross-sectional Height: Between 0.100 inches and 0.106 inches
Elongation Percentage: 125
Hardness Rating: 75.0 shore durometer a
Material Specification: Ams7276 assn standard single material response
Outside Diameter: Between 2.605 inches and 2.657 inches
Tempurature Rating: -15.0 degrees fahrenheit and 400.0 degrees fahrenheit
