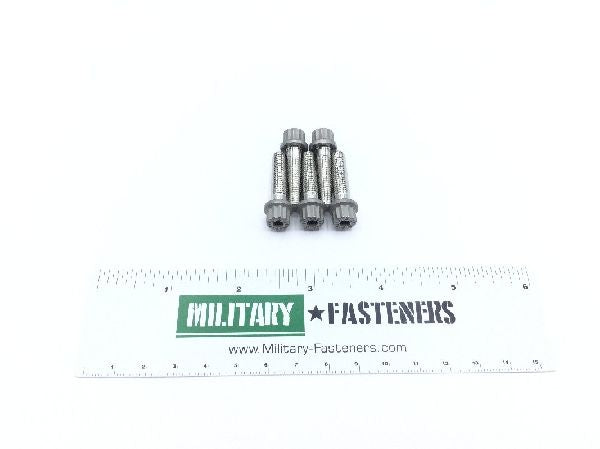

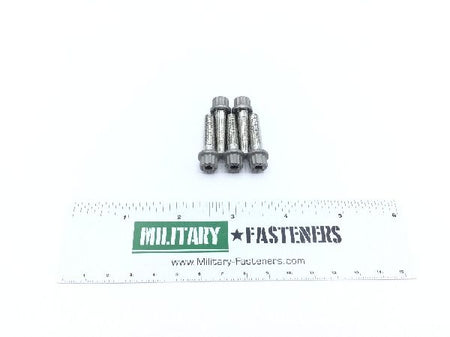

AS3580-4-16 Machine Bolt
AS3580-4-16 Machine Bolt (2)

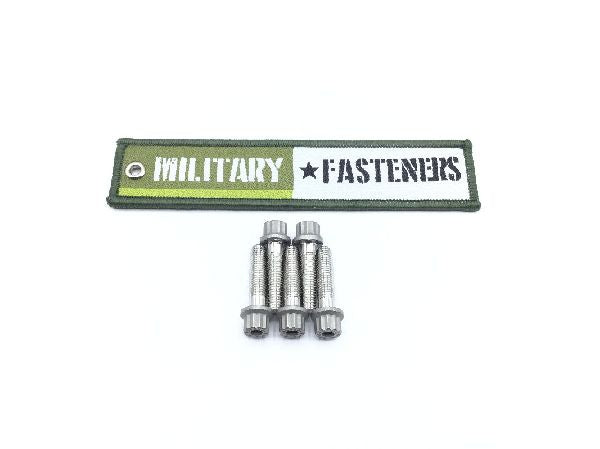

AS3580-4-16 Machine Bolt (3)
AS3580-4-16 Machine Bolt
AS3580-4-16 Machine Bolt (2)
AS3580-4-16 Machine Bolt (3)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

AS3580-4-16 Machine Bolt

ECCN
EAR99
Schedule
7318.15.2000
Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote
Head Style
Double hexagon extended washer
Material
Nickel alloy 718
Thread Class
3a
Extended Washer Diameter
Between 0.428 inches and 0.448 inches
Extended Washer Thickness
Between 0.060 inches and 0.080 inches
Fastener Length
Between 0.990 inches and 1.010 inches
Head Height
Between 0.293 inches and 0.313 inches
Thread Diameter
0.250 inches
Thread Direction
Right-hand
Thread Length
0.750 inches
Thread Qty Per Inch (tpi)
28
Thread Series Designator
Unjf (fine thread with external controlled root radius)
Width Between Flats
0.313 inches
