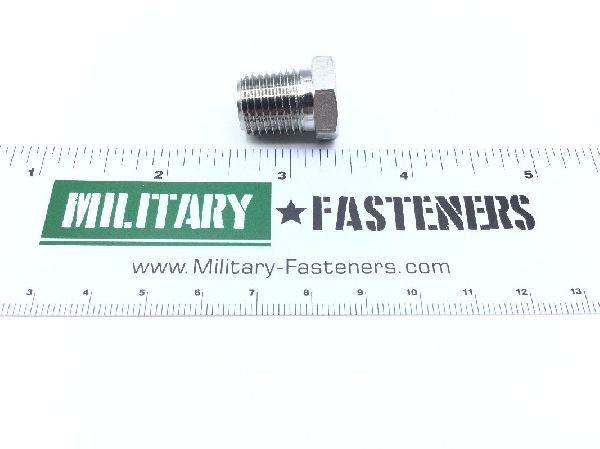

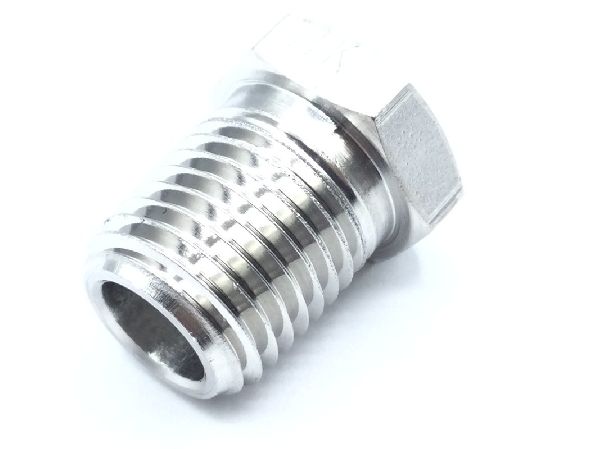

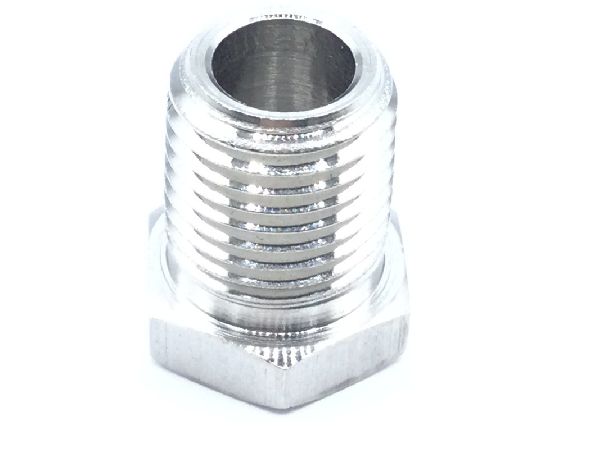

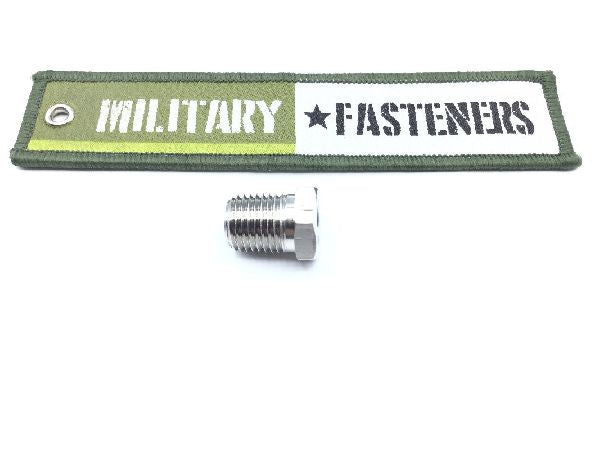

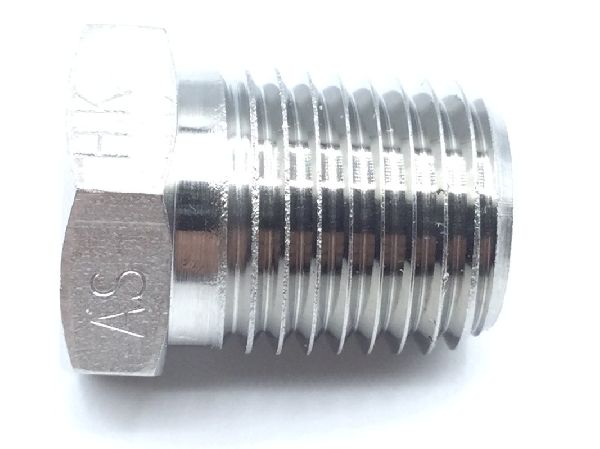

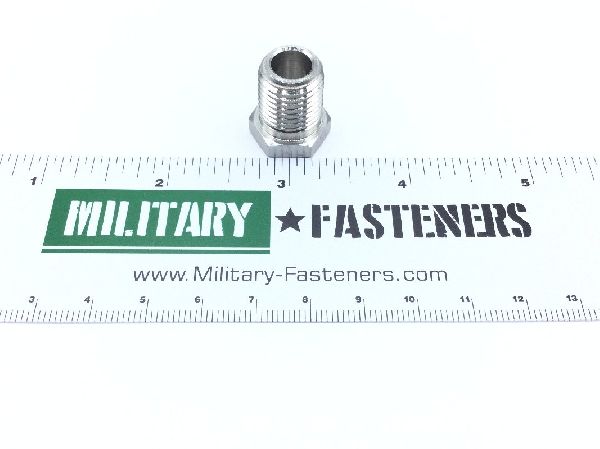

AS4861J01 Pipe Bushing

ECCN: EAR99
Schedule: 8483.30.8090

Price per Unit $16.56

Units per Pack 5

Price per Pack $82.80

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 5

Total Unit Quantity:

Total Packs 1

Total Price $82.80

Add item to quote

Material

Steel comp 304

External Screw Thread Series Designator: Anpt
External Thread Direction: Right-hand
External Thread Size: 46026
Iii End Application: 2350-01-509-3953
Iii Part Name Assigned By Controlling Agency: Internal and external thread pipe bushing fitting
Internal Screw Thread Series Designator: Anpt
Internal Thread Direction: Right-hand
Internal Thread Size: 46395
Material Specification: Steel comp
Style Designator: Outside hexagon or octagon (partial or full thread optional)
Working Pressure And Service Type: Gaseous 3000 pounds per square inch liquid and 3000.0 pounds per square inch oxygen
Working Tempurature And Service Type: Gaseous 225 degrees Fahrenheit liquid and 225.0 degrees fahrenheit oxygen
